2. INSTALLATION

2 - 3

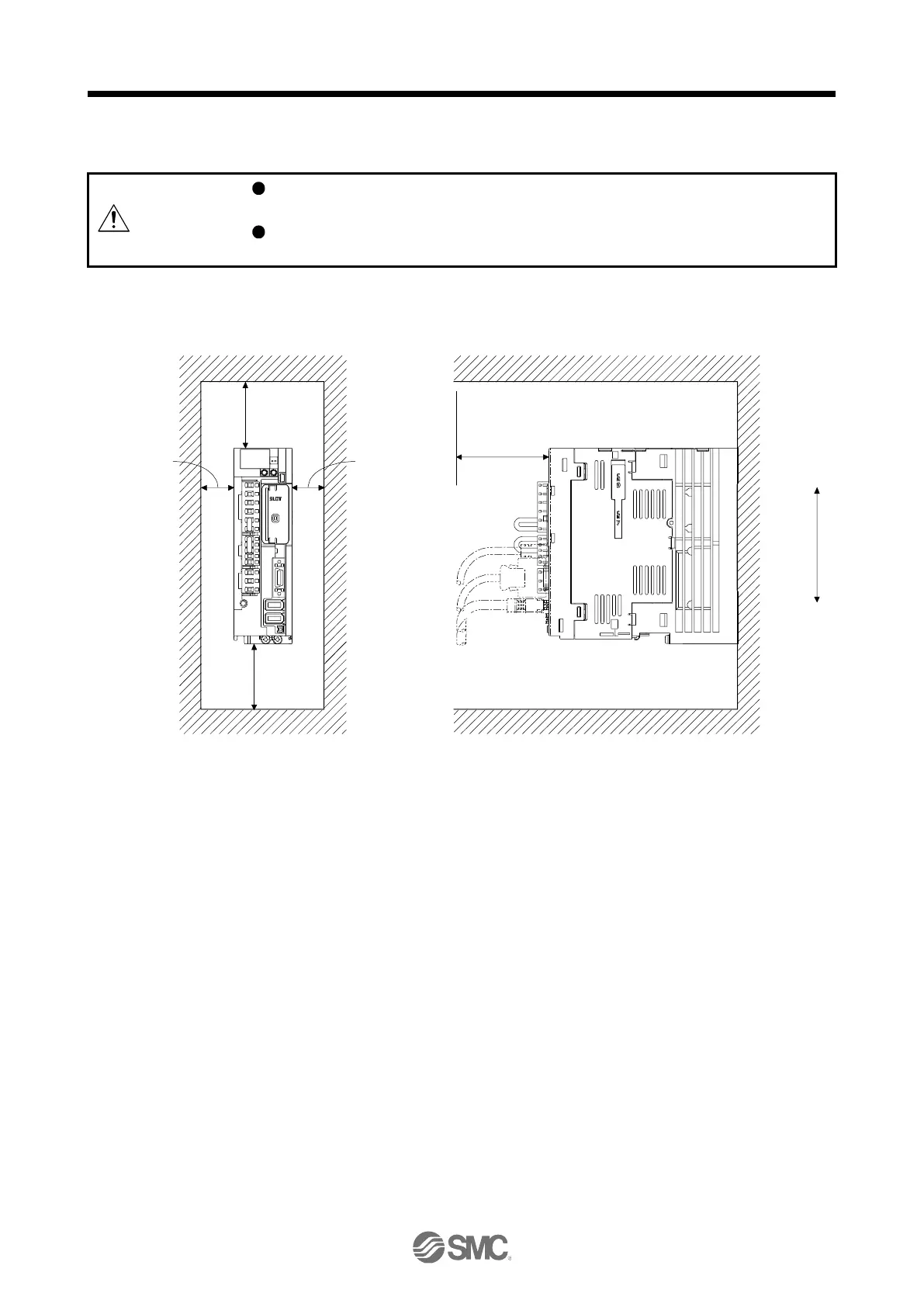

2.1 Installation direction and clearances

CAUTION

The equipment must be installed in the specified direction. Otherwise, it may

cause a malfunction.

Leave specified clearances between the driver and the cabinet walls or other

equipment. Otherwise, it may cause a malfunction.

(1) Installation clearances of the driver

(a) Installation of one driver

Cabinet Cabinet

40 mm or more

10 mm

or more

10 mm

or more

(Note 2)

40 mm

or more

(Note 1)

Servo amplifier

Wiring allowance

80 mm or more

Top

Bottom

Driver
