AMD K5 - Figure 5-13. BOFF-Initiated Inquire Hit to Modified Line

Bus Cycle Timing 5-165
18524C/0—Nov1996 AMD-K5 Processor Technical Reference Manual

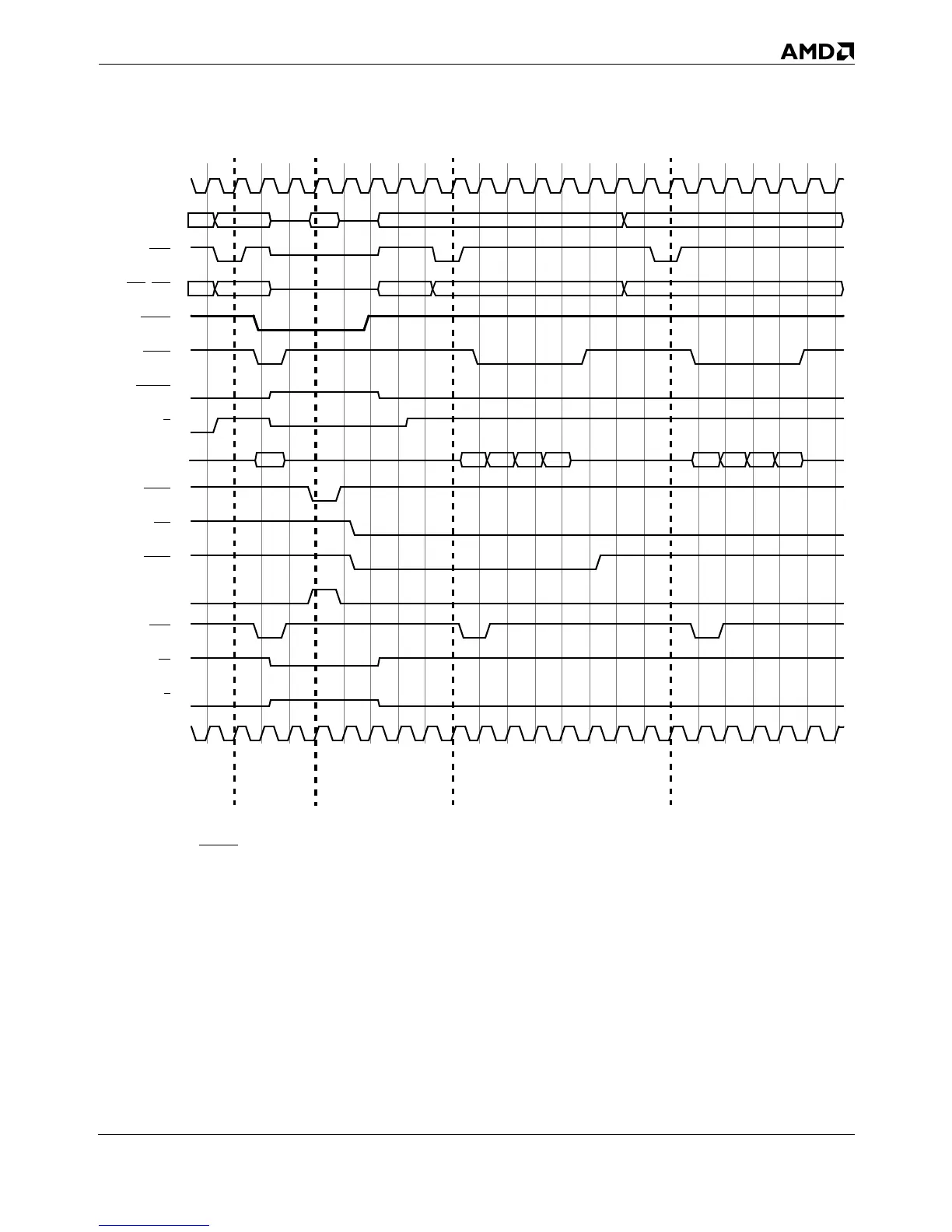

Figure 5-13. BOFF-Initiated Inquire Hit to Modified Line
CLK
A31–A3
ADS
BE7–BE0
BOFF
BRDY
CACHE
D/C
D63–D0
EADS
HIT
HITM
INV
KEN
M/IO
W/R
CLK
Read
(aborted)
Inquire Writeback
Restarted
Read
