3-6 Software Environment and Extensions
AMD-K5 Processor Technical Reference Manual 18524C/0—Nov1996

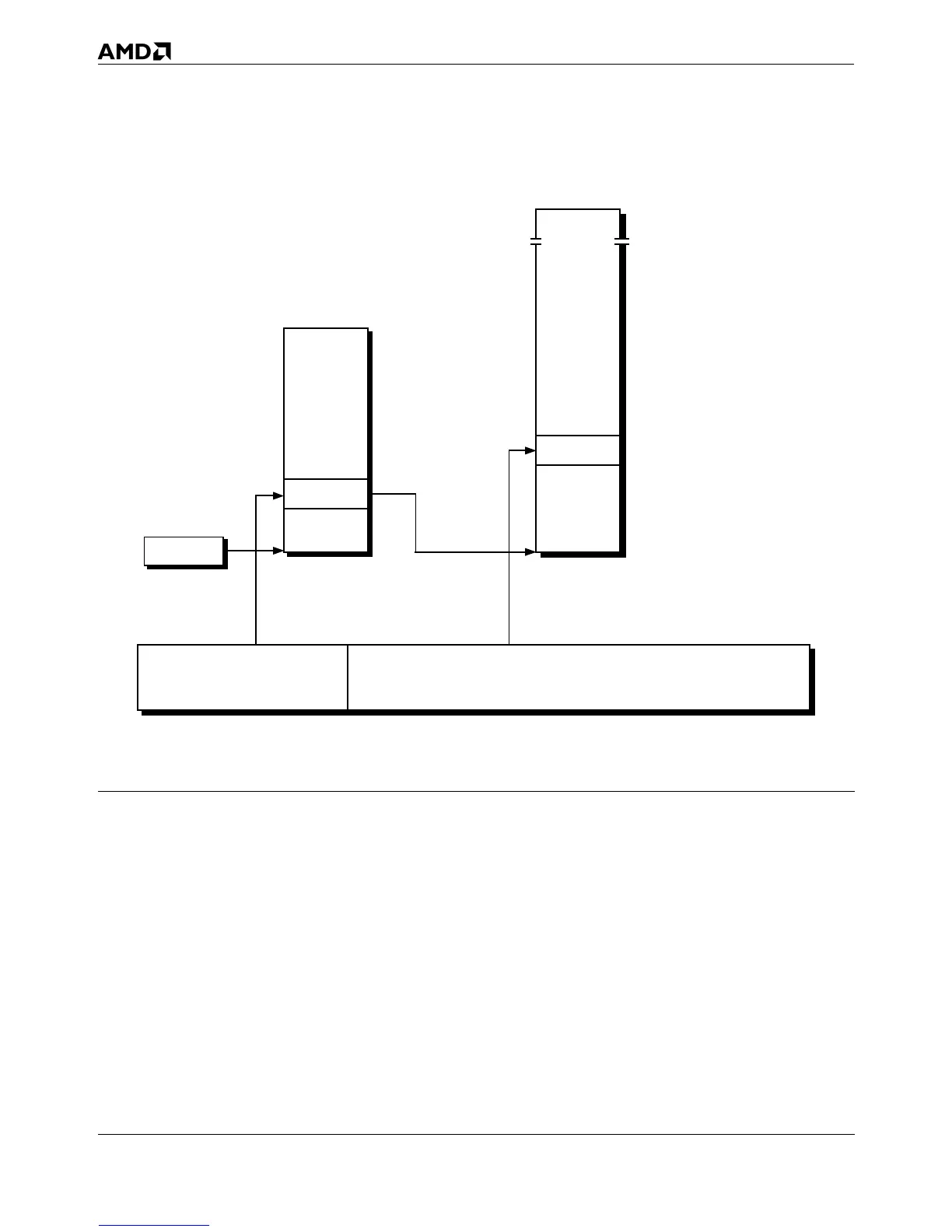

Figure 3-3. 4-Mbyte Paging Mechanism
To enable the 4-Mbyte paging option:
1. Set the Page Size Extension (PSE) bit in CR4 to 1.
2. Set the Page Size (PS) bit in the page-directory entry to 1.
3. Write the physical base addresses of 4-Mbyte pages in bits
31–22 of page-directory entries. (Bits 21–12 of these entries
must be cleared to 0 or the processor will generate a page
fault.)
4. Load CR3 with the base address of the page directory that
contains these page-directory entries.
Linear Address
4-Mbyte
Page
Directory
4-Mbyte
Page
CR3
02131 22
Page Directory
Offset
Page
Offset
PDE
Byte

AMD K5 Specifications

General

Manufacturer	AMD
Model	K5
Architecture	x86
Microarchitecture	K5
Introduction Year	1996
Clock Speed	75 - 133 MHz
Core Count	1
Socket	Socket 7
Core stepping	SSA/5, 5k86
Voltage	3.3V
Transistors	4.3 million
L1 Cache	8 KB (data) + 16 KB (instruction)
FSB	50 MHz to 66 MHz
Process Technology	350 nm
