5-170 Bus Interface
AMD-K5 Processor Technical Reference Manual 18524C/0—Nov1996

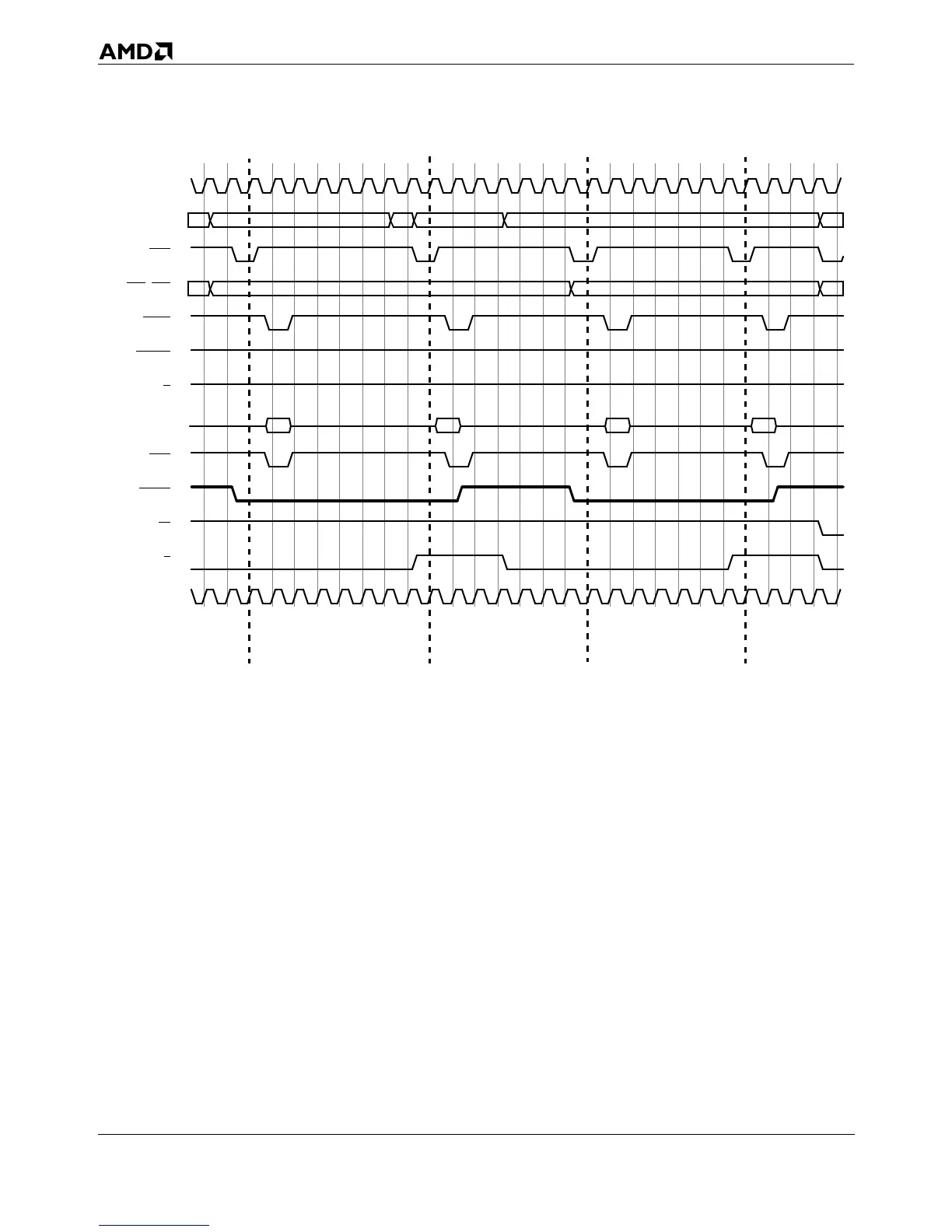

Figure 5-16. Basic Locked Operation
CLK
A31–A3
ADS
BE7–BE0
BRDY
CACHE
D/C
D63–D0
KEN
LOCK
M/IO
W/R
CLK
Read Write Read Write
