AMD K5

Bus Cycle Timing 5-155
18524C/0—Nov1996 AMD-K5 Processor Technical Reference Manual

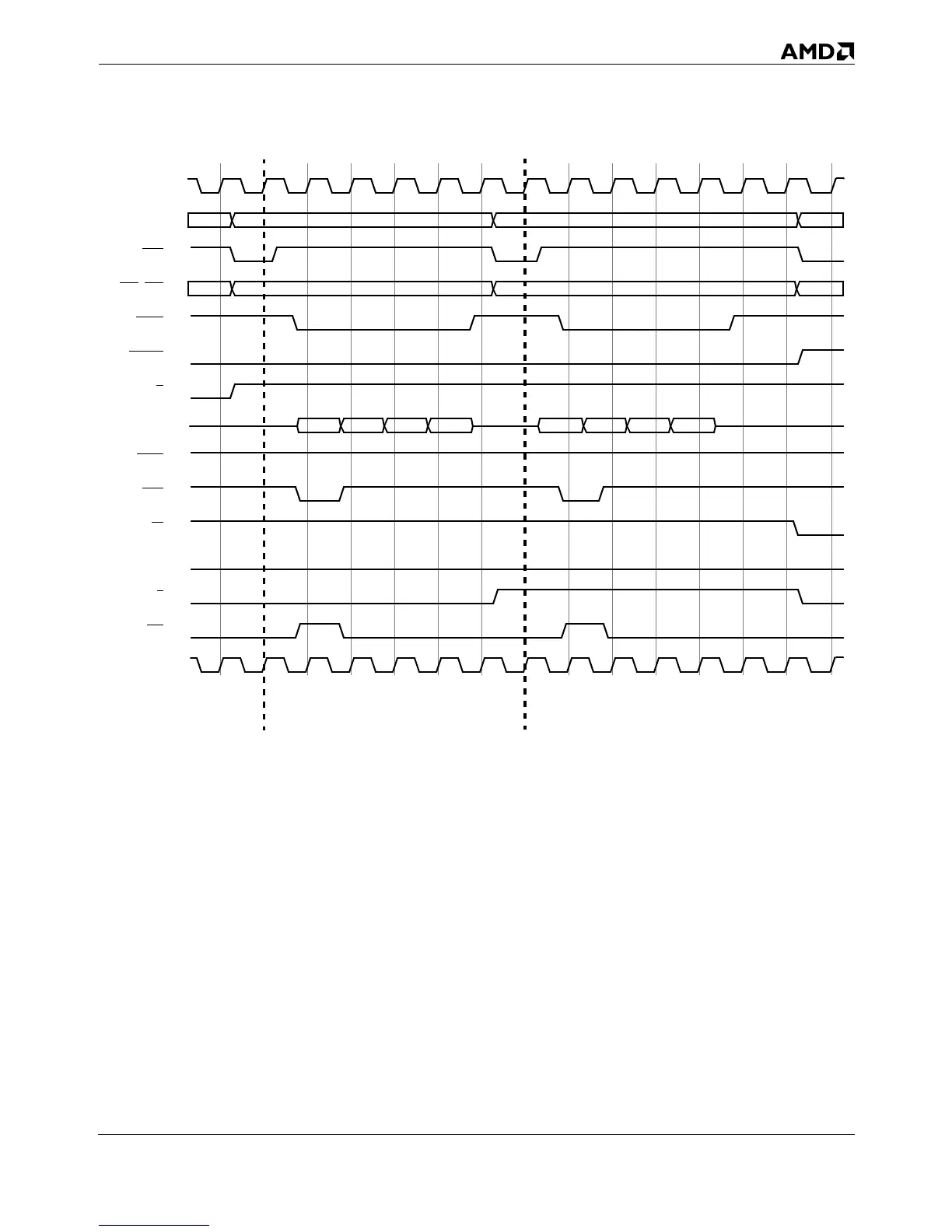

Figure 5-8. Burst Writeback Due To Cache-Line Replacement
CLK
A31–A3
ADS
BE7–BE0
BRDY
CACHE
D/C
D63–D0
EADS
KEN
M/IO
PWT
W/R
WB/WT
CLK
Read Write
