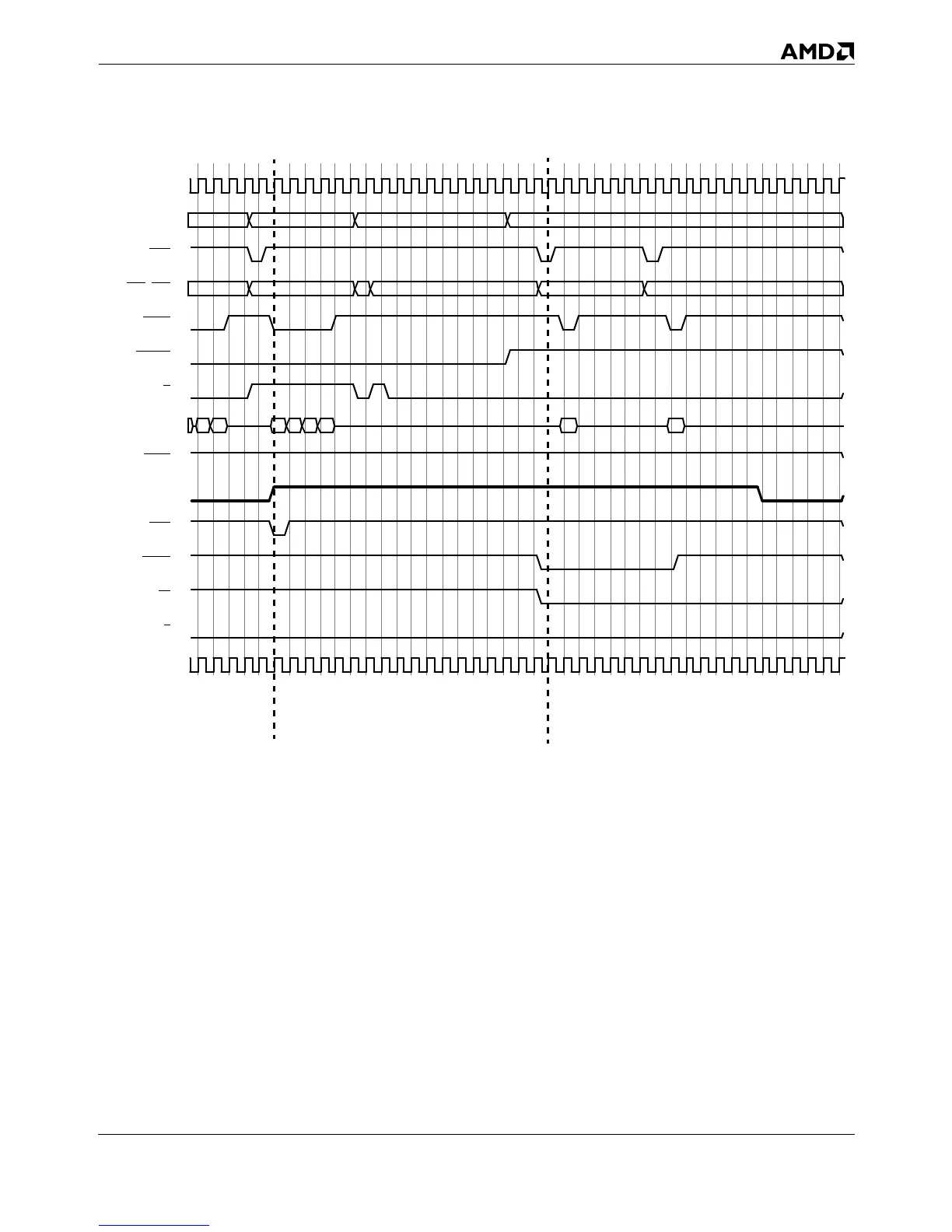

Figure 5-19A. Interrupt Acknowledge Operation Part 1
CLK
A31–A3
ADS
BE7–BE0
BRDY
CACHE
D/C
D63–D0
EADS
INTR
KEN
LOCK
M/IO
W/R
CLK
INTR Asserted
Interrupt
Acknowledge
Cycles
