AMD K5

Bus Cycle Timing 5-179
18524C/0—Nov1996 AMD-K5 Processor Technical Reference Manual

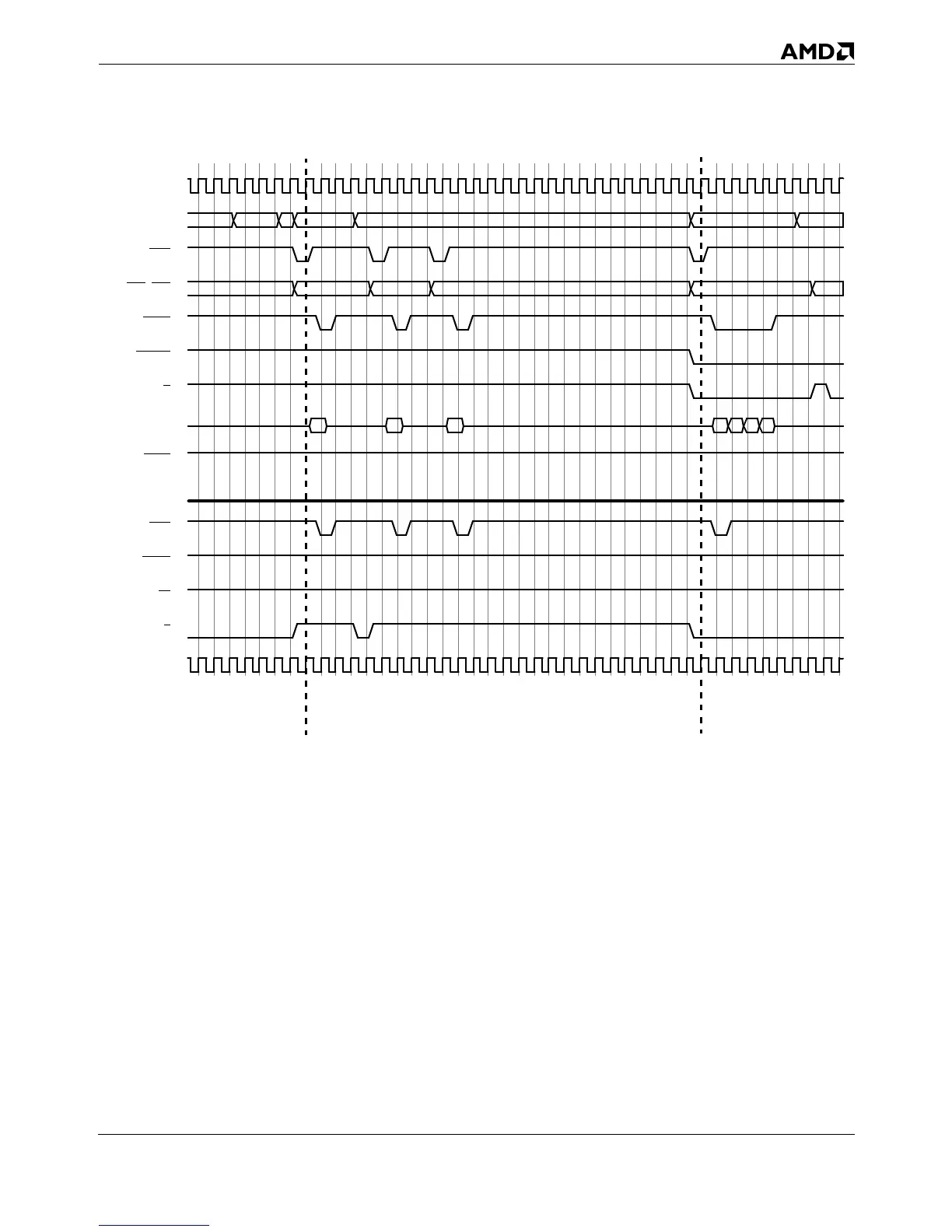

Figure 5-19C. Interrupt Acknowledge Operation Part 3
CLK
A31–A3
ADS
BE7–BE0
BRDY
CACHE
D/C
D63–D0
EADS
INTR
KEN
LOCK
M/IO
W/R
CLK
Write
to stack
Code fetch
for interrupt
