CK22/CK22H

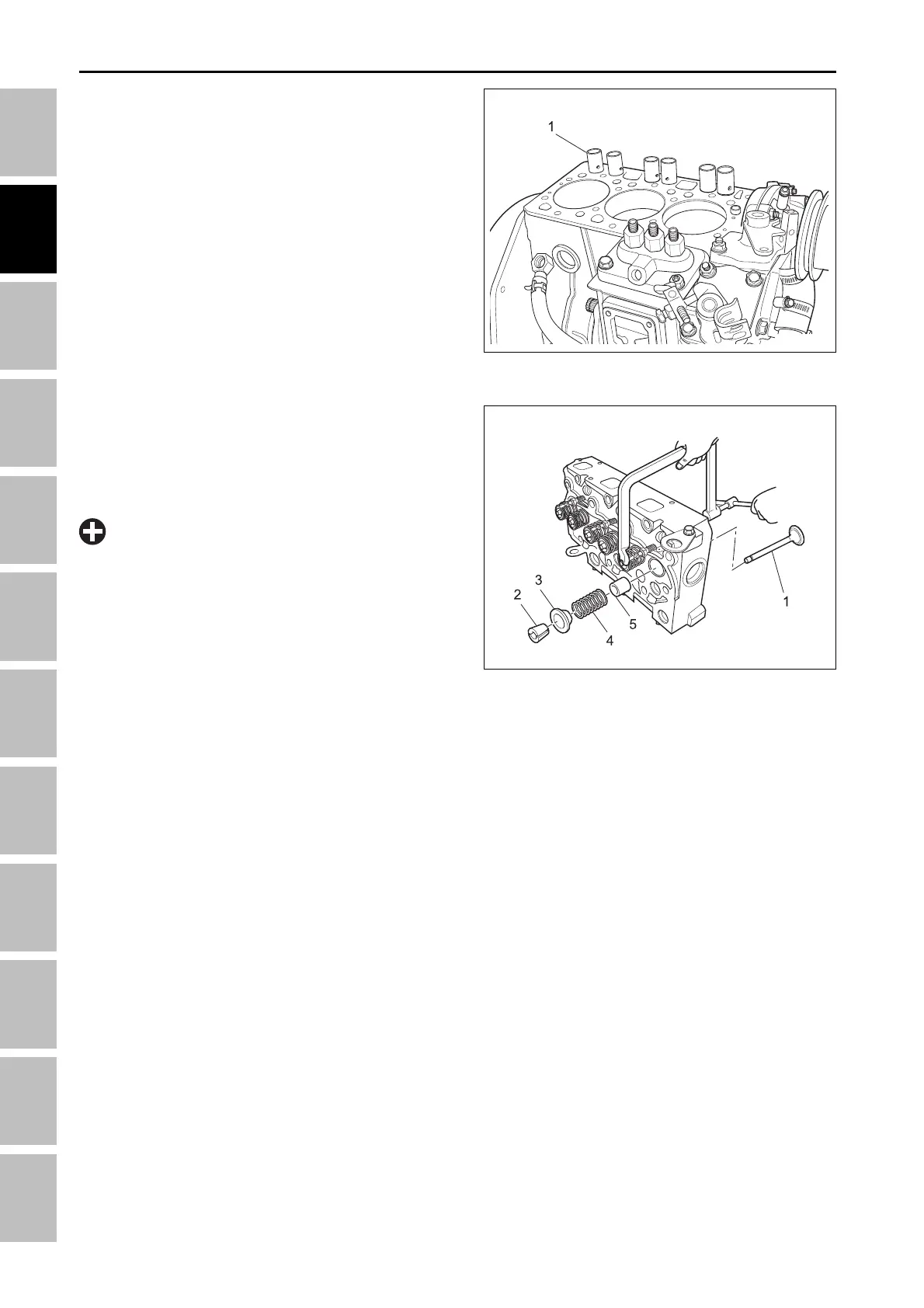

B. REMOVING TAPPETS
1. Remove the six tappets from the crankcase.
(Note for reassembling)
• Visually check the contact between tappets and
cams for proper rotation. If a defect is found, re-
place tappets.
• Before installing the tappets, apply a thin coat of oil
around them.
(1) Tappets
C. VALVES
1. Compress the valve spring with a valve spring re-
placer and remove the collet (2).
2. Remove the valve spring retainer (3), valve spring
(4), valve stem seal (5) and the valve (1).
(1) Valve (4) Valve spring
(2) Collet (5) Valve stem seal
(3) Retainer
196W266B
196W267B
• Do not interchange valves and valve parts. Mark
the cylinder number on the valve and the parts to
prevent interchanging.
IMPORTANT
(When reassembling)
• Apply oil to the stem of valve and install in the cylin-
der head.
• Lubricate the valve and the parts after reassembling.
ENGINE - SERVICING
