CK22/CK22H

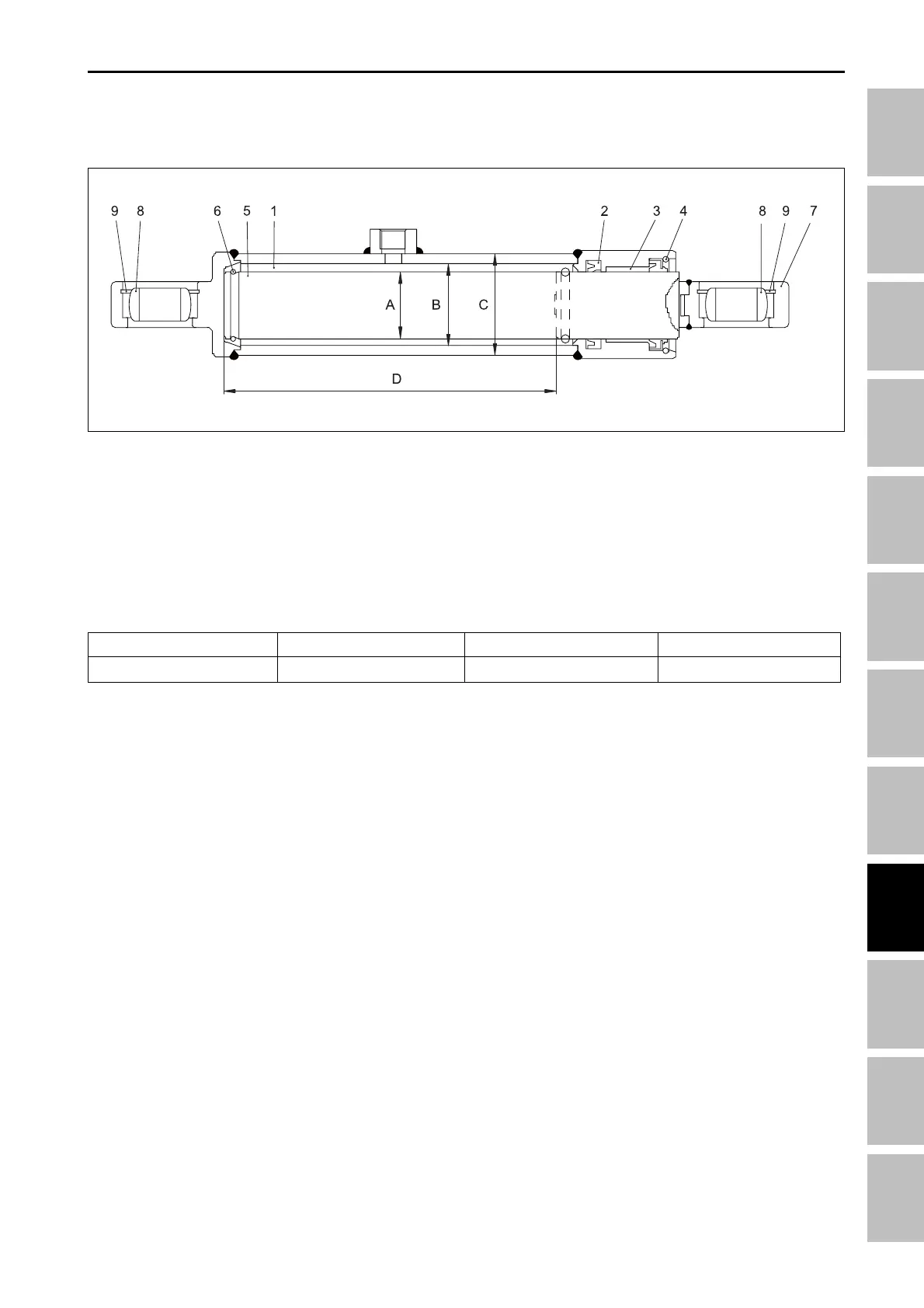

2.5 STEERING CYLINDER
A. STRUCTURE
(1) Tube
(2) Packing
(3) Bush
(4) Dust seal
(5) Rod
(6) Ring
(7) Housing
(8) Bearing
(9) Snap ring
(A) Rod O.D
(B) Tube I.D
(C) Tube O.D
(D) Stroke
B. MAJOR SPECIFICATION
Tube O.D.
φ 49 mm (1.93 in.)
Tube I.D.
φ 39 mm (1.53 in.)
Rod O.D.
φ 32 mm (1.26 in.)
Stroke
161 mm (6.34 in.)
196W807B
