CK22/CK22H

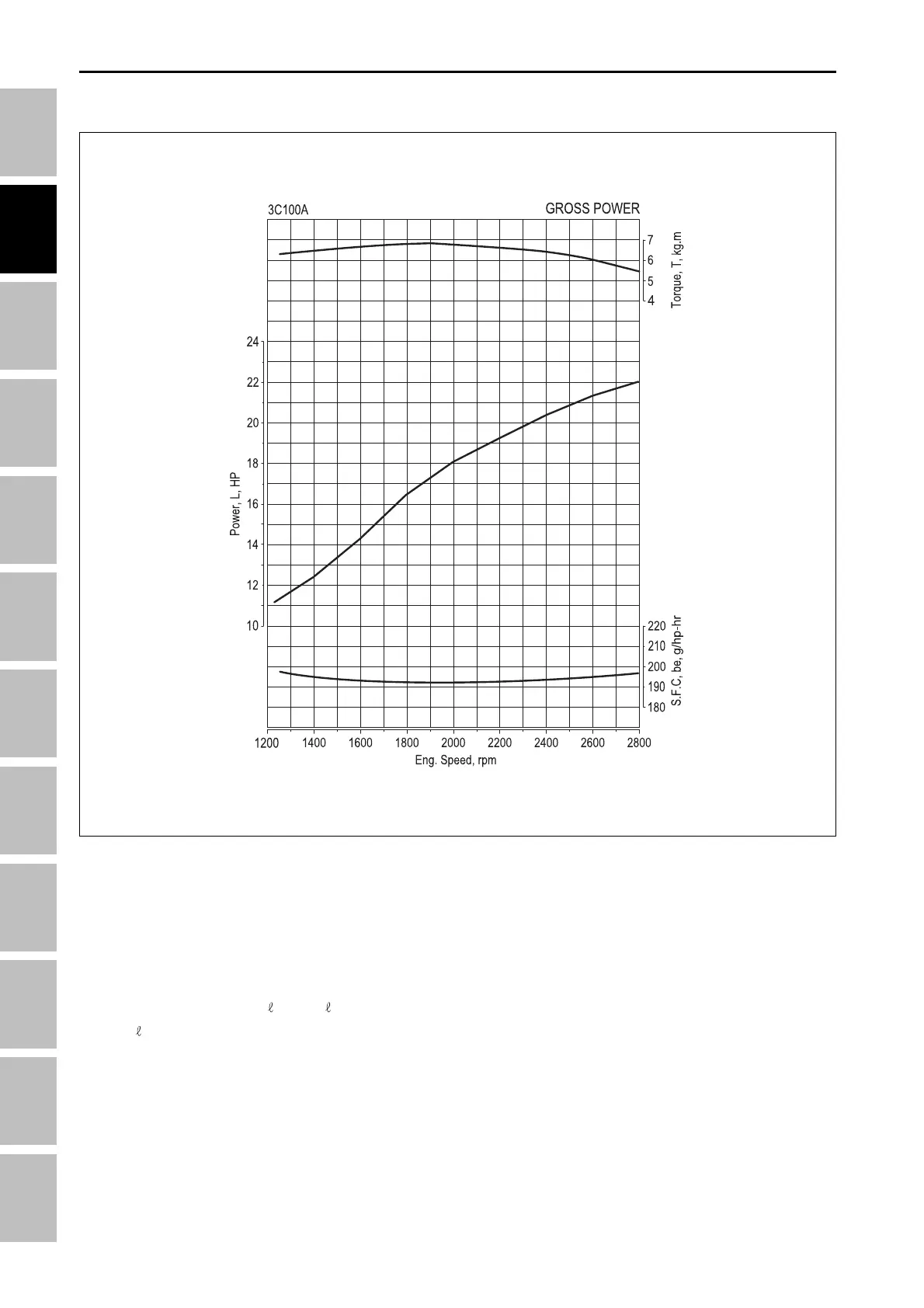

2.2 PERFORMANCE CURVE
NOTE:
• Performance curve, obtained in accordance with SAE J 1995.
• SFC (Specific Fuel Consumption)
According to the curve,
197g/Hp-hr at 2,800 rpm
→ 197g/Hp-hr X 22 HP = 4,334 kg/hr
→ 4,334 kg/hr ÷
0.81 kg/ = 5.35 /hr
Ì 1
of diesel fuel is 0.81 kg
196W203B
ENGINE - SPECIFICATIONS
