CK22/CK22H

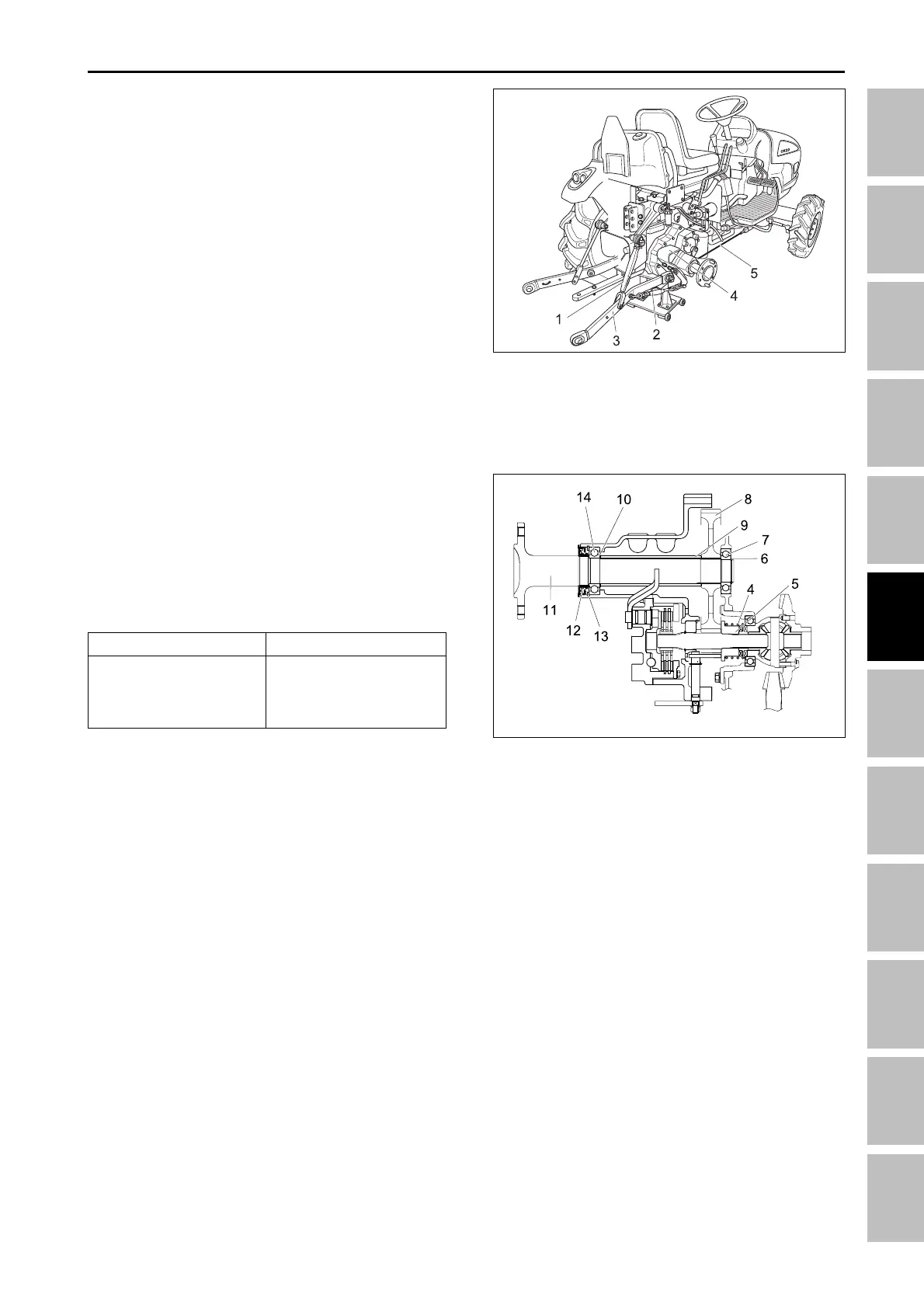

4.6 REAR AXLE CASE
1. Loosen and remove the rear axle case mounting
screws (1, 3).
2. Support the rear axle with nylon lift strap and hoist.
3. Separate the rear axle from transmission case.
(When reassembling)
196W509A
Item
Rear axle case mount-
ing bolt
Tightening torque
48.1 ~ 55.9 Nm
4.9 ~ 5.7 kgf-m
35.4 ~ 41.2 lb-ft
196W505A
4.5 LINK
1. Remove the lifting rod (1).
2. Remove the check chain (2).
3. Remove the lower link (3).
4. Remove the check chain bracket (4).
5. Disconnect the brake rod (5).
(1) Lifting rod (4) Bracket
(2) Check chain (5) Brake rod
(3) Lower link
REAR AXLE - SERVICING
