CK22/CK22H
8.4.4 CHECKING RADIATOR HOSE AND
CLAMP
Check to see if radiator hoses are properly fixed every
200 hours of operation or six months, whichever comes
first.
1. If hose clamps are loose or water leaks, tighten
bands securely.
2. Replace hoses and tighten hose clamps securely,
if radiator hoses are swollen, hardened or cracked.
Replace hoses and hose clamps every 2 years or ear-
lier if hoses are swollen, hardened or cracked.
A. PRECAUTION AT OVERHEATING
Take the following actions if coolant is overheating.
1. Stop operating any implement to remove the load
from the engine.
2. Don’t stop the engine suddenly, but stop it after
about 5 minutes of unloaded idling.
3. Keep away from the machine for further 10 minutes
or while the steam evacuates.
4. Check that there is no danger of burning, check for
causes of overheating (see manual), see “Trouble-
shooting” section, and then, restart the engine.
1
196W142B

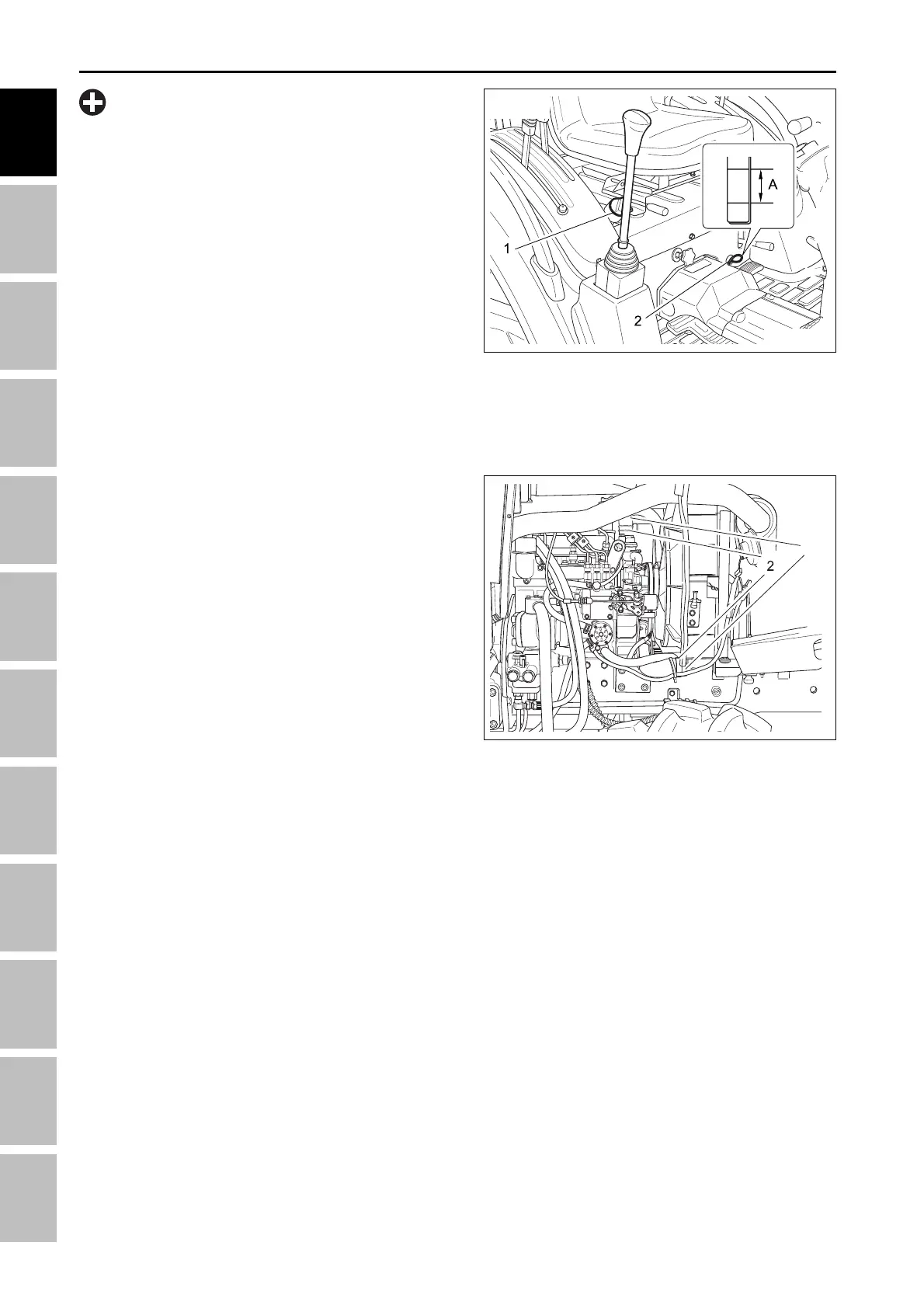

(1) Radiator hoses (2) Clamp
HST
196W141A
(1) Oil inlet
(2) Gauge
(A) Oil level is acceptable within this range
• To prevent serious damage to the hydraulic
system, use only a genuine DAEDONG filter.
IMPORTANT
GENERAL - CHECK AND MAINIENANCE
