CK22/CK22H

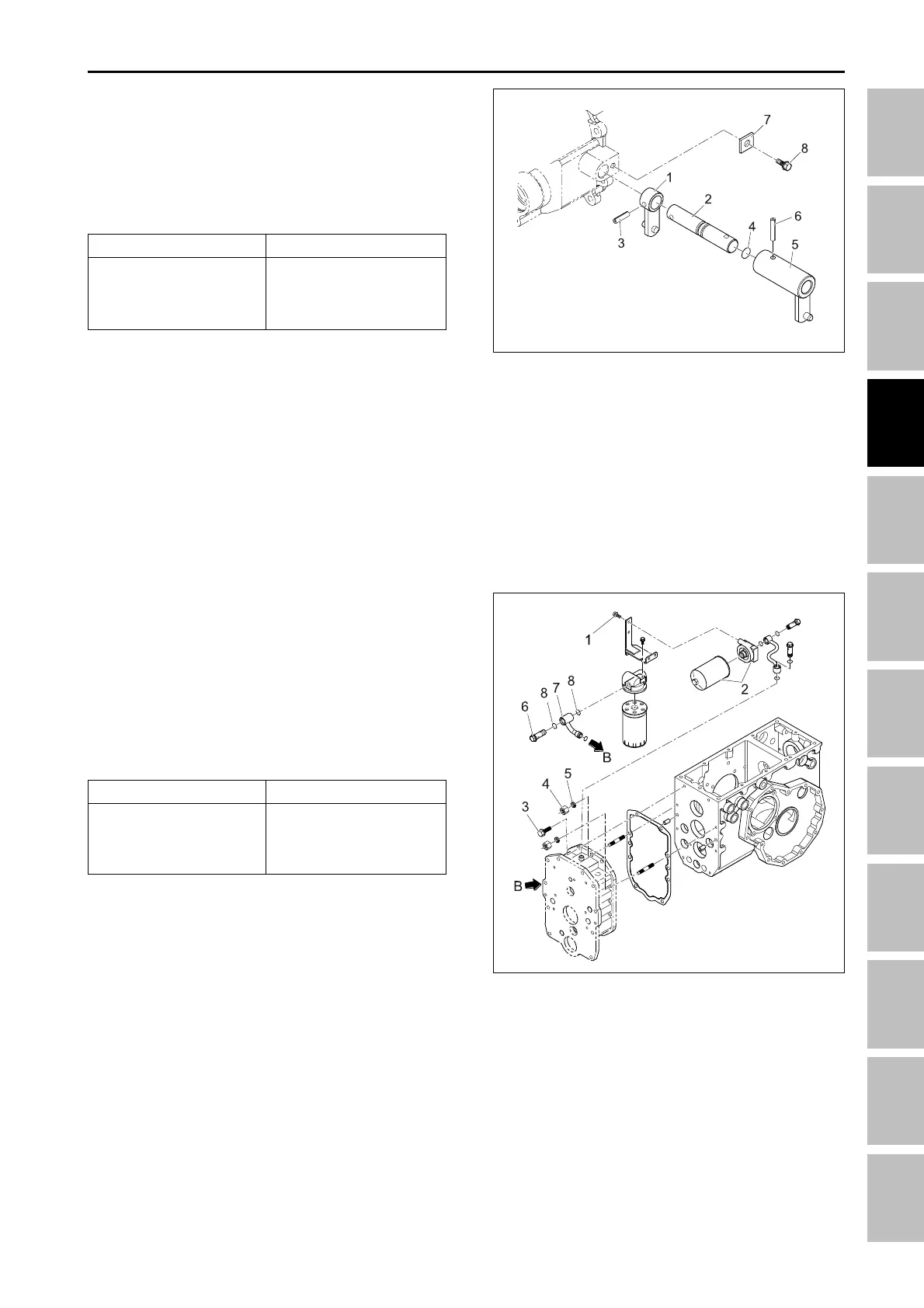

A. FRONT WHEEL DRIVE LEVER
1. Tap out the spring pin (6).
2. Remove the front wheel drive arm 2 (5), bolt (8),
front wheel drive stopper (7), front wheel drive shaft
(2) and O-ring (4).
3. Tap out the spring pin (3) and remove the front wheel
drive arm (1).
(1) Front wheel drive arm
(2) Front wheel drive shaft
(3) Spring pin
(4) O-ring
(5) Front wheel drive arm 2
(6) Spring pin
(7) Front wheel drive stopper
(8) Bolt
196W359A
Item
Stopper mounting bolt
Tightening torque
4.21 HST OUTPUT SHAFT GROUP
(CK22H)
A. SEPARATING THE MIDDLE CASE ASSEMBLY
1. Remove the bolts (1) and HST filter assembly (2).
2. Remove the bolt (3), nuts (4), spring washers (5),
joint bolt (6), O-ring (8) and HST charge suction tube.
3. Tap out the middle case assembly to the front side.
196W460A
(1) Bolt
(2) Filter assembly
(3) Bolt
(4) Nut
(5) Spring washer
(6) Joint bolt
(7) HST charge suction tube
(8) O-ring
23.6 ~ 27.4 Nm
2.4 ~ 2.8 kgf-m
17.4 ~ 20.2 lb-ft
Item
Joint bolt
Tightening torque
44.1 Nm
4.5 kgf-m
32.5 lb-ft
TRANSMISSION - SERVICING
