CK22/CK22H
4.1.2 BATTERY REMOVAL
1. Raise the tractor hood by moving the latch release
to the right and lifting the hood to its fully raised
position.
2. Disconnect the negative (-) battery cable 3.
3. Disconnect the positive (+) battery cable 2.
4. Remove the battery hold-down hardware (4), (5),
and remove the battery from the tractor.

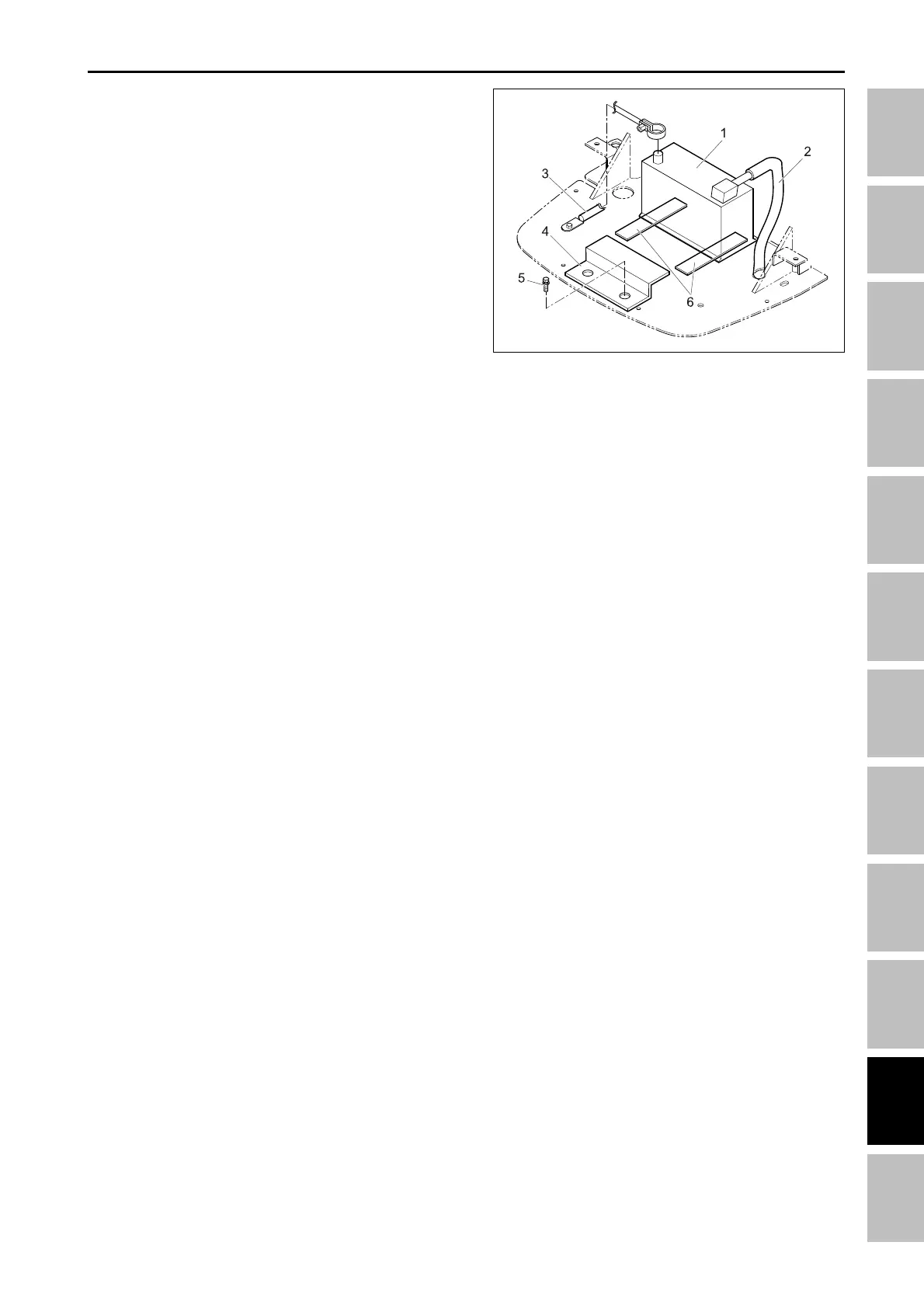

(1) Battery (4) Battery bracket
(2) Battery cord (+) (5) Bolt
(3) Battery cord (-) (6) Cushion rubber
4.1.3 BATTERY INSTALLATION
1. Orient the battery so that the posts are toward the
rear of the tractor. Install the battery and the hold-
down bracket (4), and hardware (5), positioning the
hold-down strap so that it clears all other components.
2. Connect the positive (+) Red cable (3), to the posi-
tive (+) terminal and the negative (-) BLACK cable
(3), to the negative (-) terminal.
3. Install the protective caps over the battery terminals
and cable connections.
196WA14A
ELECTRIC SYSTEM - SERVICING
