CK22/CK22H

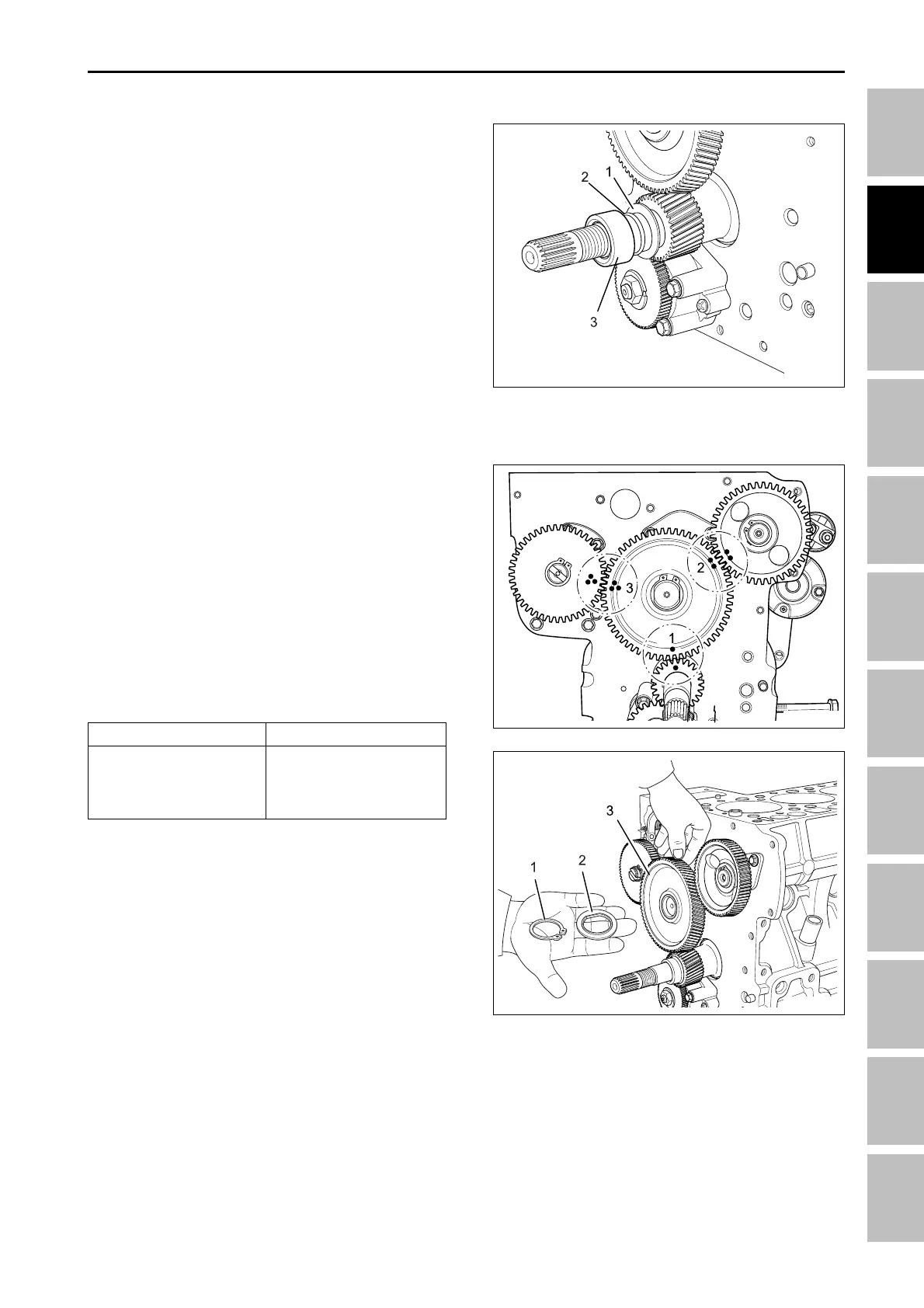

B. REMOVING IDLE GEAR
1. Remove the external circle clip.
2. Detach the idle gear collar 2.
3. Detach the idle gear.
4. Detach the idle gear collar 1.
(Note for reassembling)
• Check to see each gear is aligned with its aligning
mark:
1) Idle gear and crank gear
2) Idle gear and camshaft gear
3) Idle gear and injection pump gear
(1) External circle clip (2) Gear collar 2
(3) Idle gear
196W282A
196W281A
Item
Idle gear shaft mounting
bole torque
Tightening torque
7.8 ~ 9.8 Nm
0.8 ~ 1.0 kgf-m
5.7 ~ 7.2 lb-ft
(1) Crankshaft oil slinger (2) O-ring
(3) Crankshaft collar
196W280A
7.1.9 TIMING GEARS, CAM SHAFTS AND
OIL PUMP
A. REMOVING CRANKSHAFT OIL SLINGER
1. Remove the crankshaft collar.
2. Remove the O-ring.
3. Detach the crankshaft oil slinger.
ENGINE - SERVICING
