CK22/CK22H

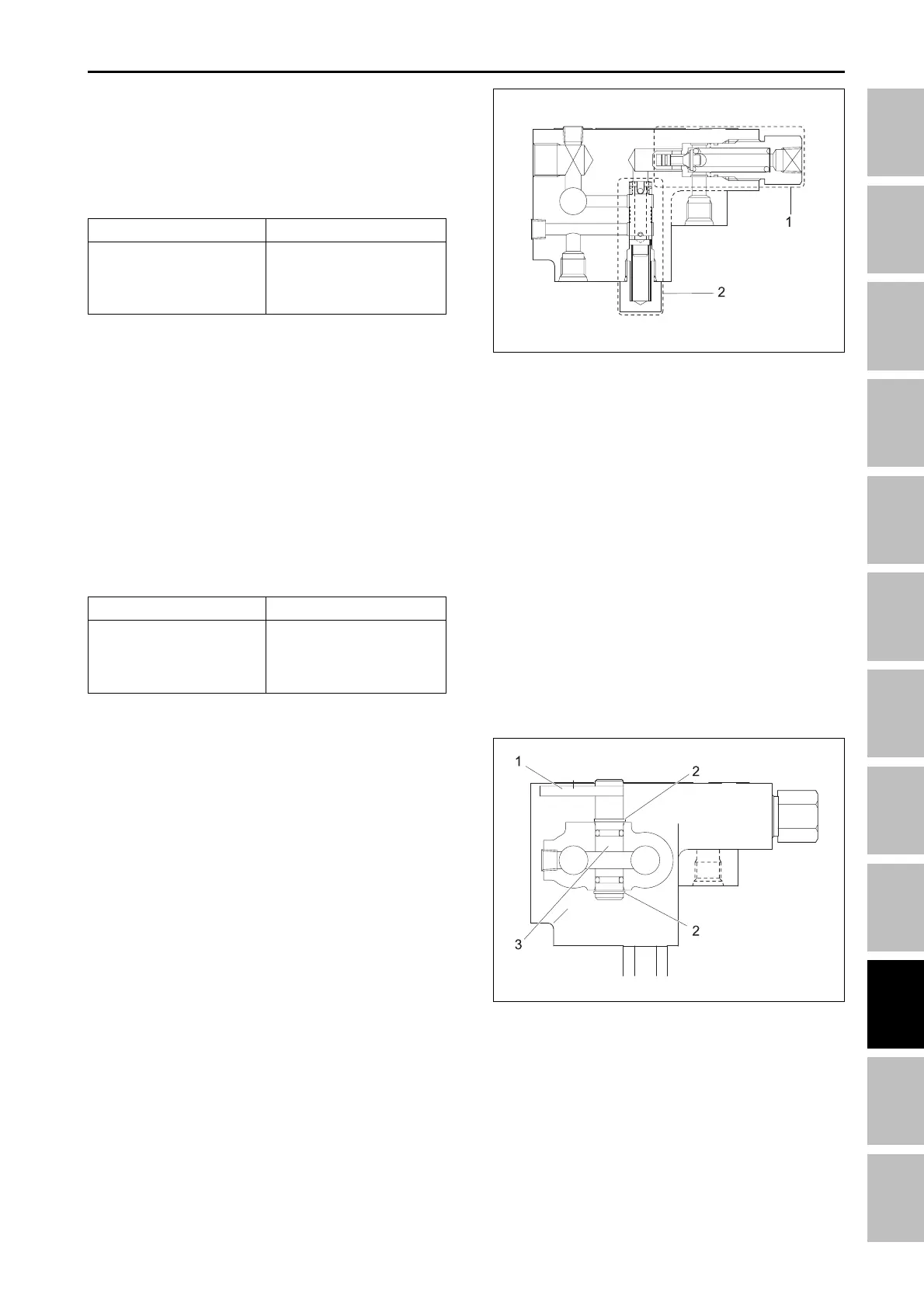

4.1.4 FLOW DIVIDER ASSEMBLY
1. Separate the flow divider assembly(2).
(When reassembling)
• Install the flow divider assembly (2) to the outlet,
using care not to damage the O-ring.
4.1.5 DIRECTIONAL VALVE
1. Remove the external snap ring (2).
2. Remove the directional valve (3)
(When reassembling)
• Install the O-ring to the directional valve, taking care
not to damage the O-ring.
Apply grease to them before installation.
(1) Straight pin (3) Directional valve
(2) Snap ring
(1) Relief valve assembly
(2) Flow divider assembly
4.1.3 RELIEF VALVE ASSEMBLY
1. Separate the relief valve assembly (1).
(When reassembling)
• Install the relief valve assembly to the outlet, taking
care not to damage the O-ring
196W942A
196W943A
Item
Relief valve assembly
Tightening torque
49.0 ~ 58.8 Nm
5.0 ~ 6.0 kgf-m
36 ~ 43 lb-ft
Item
Flow divider assembly
Tightening torque
40.0 ~ 50.0 Nm
4.0 ~ 5.0 kgf-m
8.9 ~ 11.2 lb-ft
HYDRAULIC SYSTME - SERVICING
