CK22/CK22H

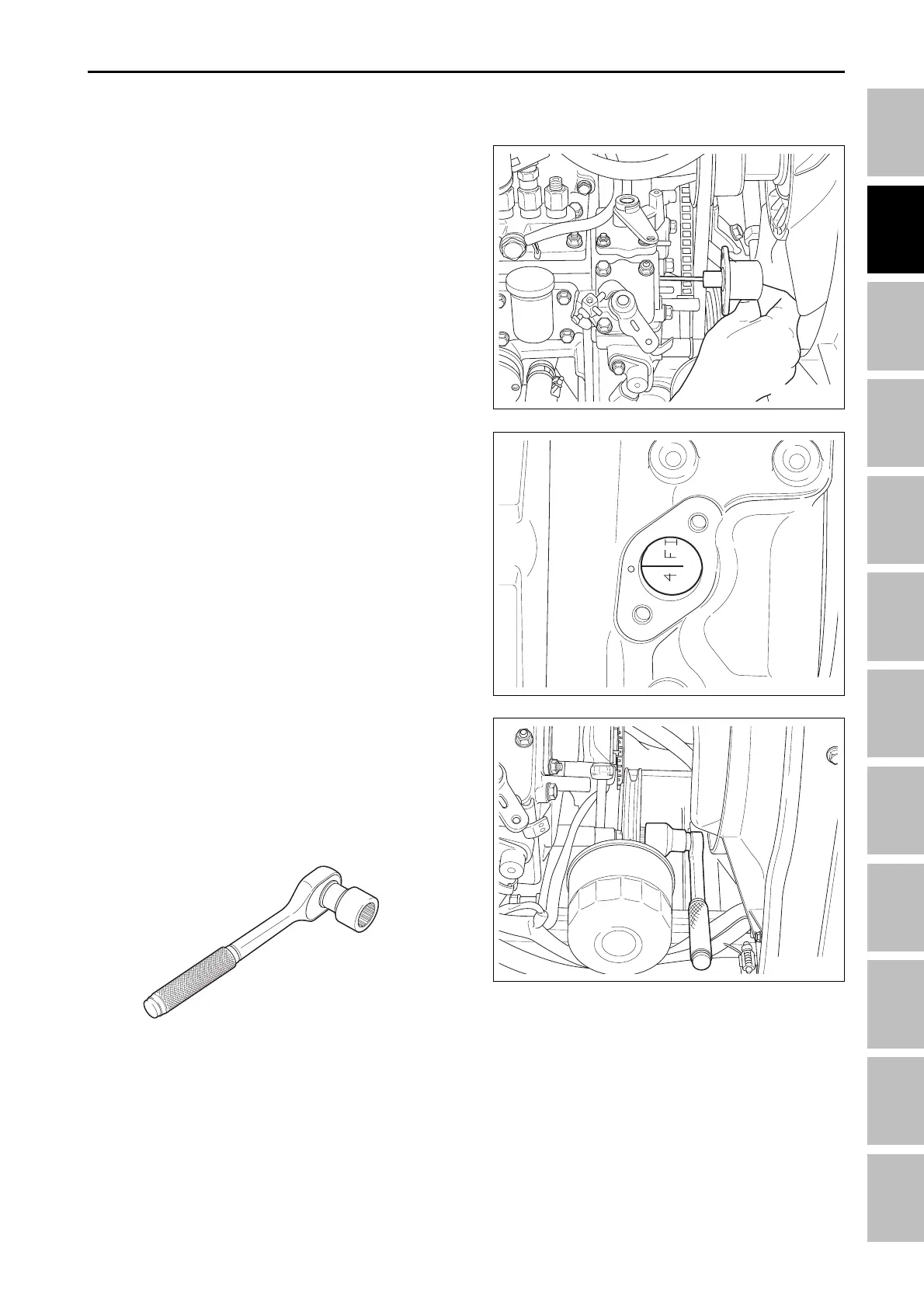

5.4 INJECTION TIMING MEASURE-
MENT AND ADJUSTMENT
2. Remove the timing check window cover of the clutch
housing.
3. Turn the flywheel to find “1, 4 FI” mark for 4-cylinder
engine or 1 FI mark for 3-cylinder engine on the
flywheel.
4. When the mark is found, turn the crankshaft coun-
terclockwise approx. 30° (when looking at the front
of the engine).
- “1, 4 FI” means the injection timing of the No. 1 or
4 cylinders.
- When turning the crankshaft, use a socket for turn-
ing the crankshaft.
NOTE:
• How to use the crankshaft turning socket
You can use DAEDONG special tool kit
(part No.: G0611-B0010) for spline socket.
NOTE:
• Perform the work with the engine installed in the
tractor.
1. Remove the engine stop solenoid.
T46W256B
T46W257A
T46W258A
T46W259A
ENGINE - MEASUREMENT AND ADJUSTMENT
