CK22/CK22H
196W4B5A

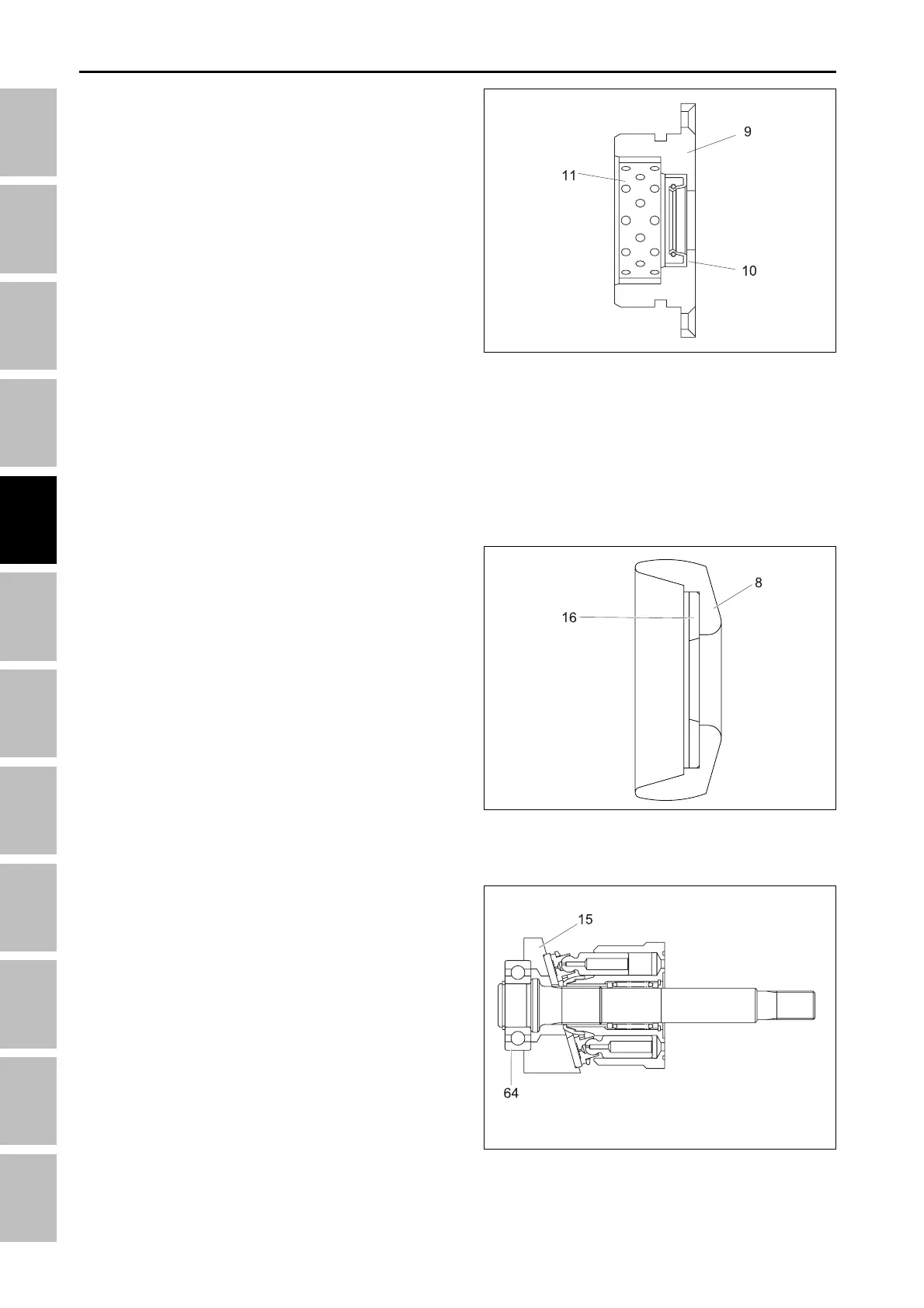

(8) Swash plate (16) Shoe plate
196W4B6B
7. Press bearing (64) up to the shoulder of the shaft
(7). Install the shaft (7) with the bearing (64) to the
housing.
(15) Swash plate (64) Bearing
4.3 ASSEMBLY
1. Install the swash plate (8) into the housing.
2. Using bushing, bearing and seal drive set, install a
new oil seal (10) up to the shoulder of the swash
cover (14). Install bearing (11) and a new O-ring.
196W4B4B
(9) Swash cover (lever) (11) Bearing
(10) Oil seal
HST - SERVICING
3. Install bearing (11) and a new O-ring onto the swash
cover (14). Install and tighten screws (13) to a torque
of 6.2 ~ 7.6 Nm (0.63 ~ 0.78 kgf-m, 4.6 ~ 5.6 lb-ft).
4. Install the bearing (3) to the shaft and tighten the
snap ring (4). Then, install them to the housing and
fit the snapring (5) to the housing.
5. Install the shoe plate (16) onto the swash plate (8)
as shown.
6. Assemble items (17 ~ 24) and install them onto the
swash plate (8).
