CK22/CK22H

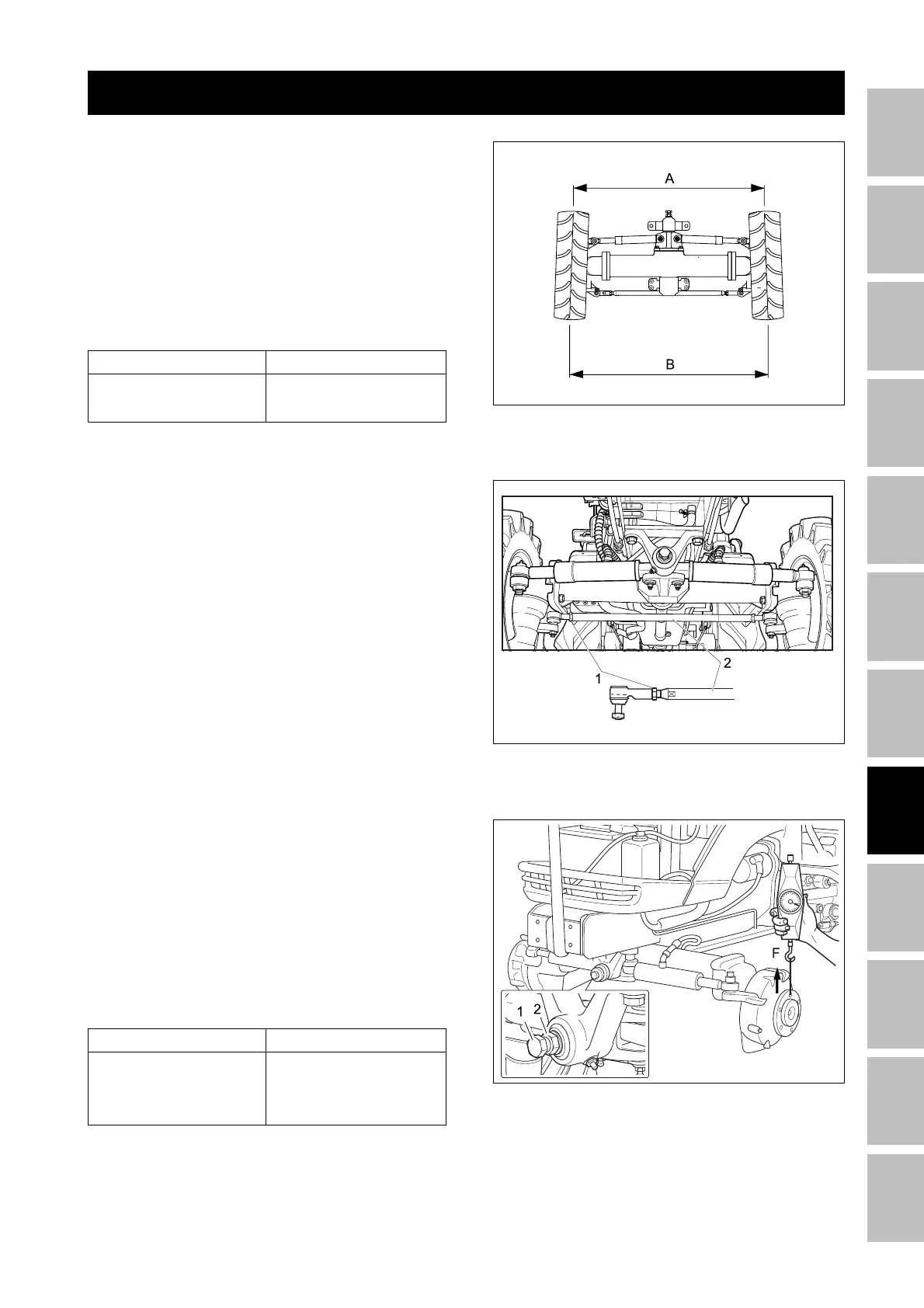

A. ADJUSTING
1. Loosen the lock nuts (1).
2. Turn the tie-rod (2) to factory specification.
3. Tighten the lock nuts (1).
(1) Lock nut (2) Tie-rod
4. MEASURMENT AND ADJUSTING
196W706A
196W707A
4.1 TOE-IN
1. Apply air pressure as specified to tires.
2. Measure the front width (A) and the rear width (b)
between the front wheels while straightened to ob-
tain the difference (toe-in).
3. For other than specified, loosen the tightening nut
on the ball joint for adjustment while turning the
screw on the ball joint. Be sure to make the expo-
sure of left and right rods in the steering cylinder
equal this time.
(A) Front width (B) Rear width
Item
Toe-in (B-A)
Factory spec.
2 ~ 8 mm
0.08 ~ 0.31 in.
4.2 ROCKING FORCE OF FRONT
AXLE
1. Jack up the front side of tractor and remove the front
wheel.
2. Set a spring balance to the front gear case cover.
3. Measure the front axle rocking force.
4. If the measurement is not within the factory
specifications, adjust with the adjusting screw (1).
5. Tighten the lock nut (2) firmly.
(1) Adjusting screw (2) Lock nut
196W708A
Item
Front axle rocking force
Factory spec.
49.0 ~ 117.7 N
5.0 ~ 12.0 kgf
11.0 ~ 26.5 lbs
FRONT AXLE - MEASURMENT AND ADJUSTING
