CK22/CK22H

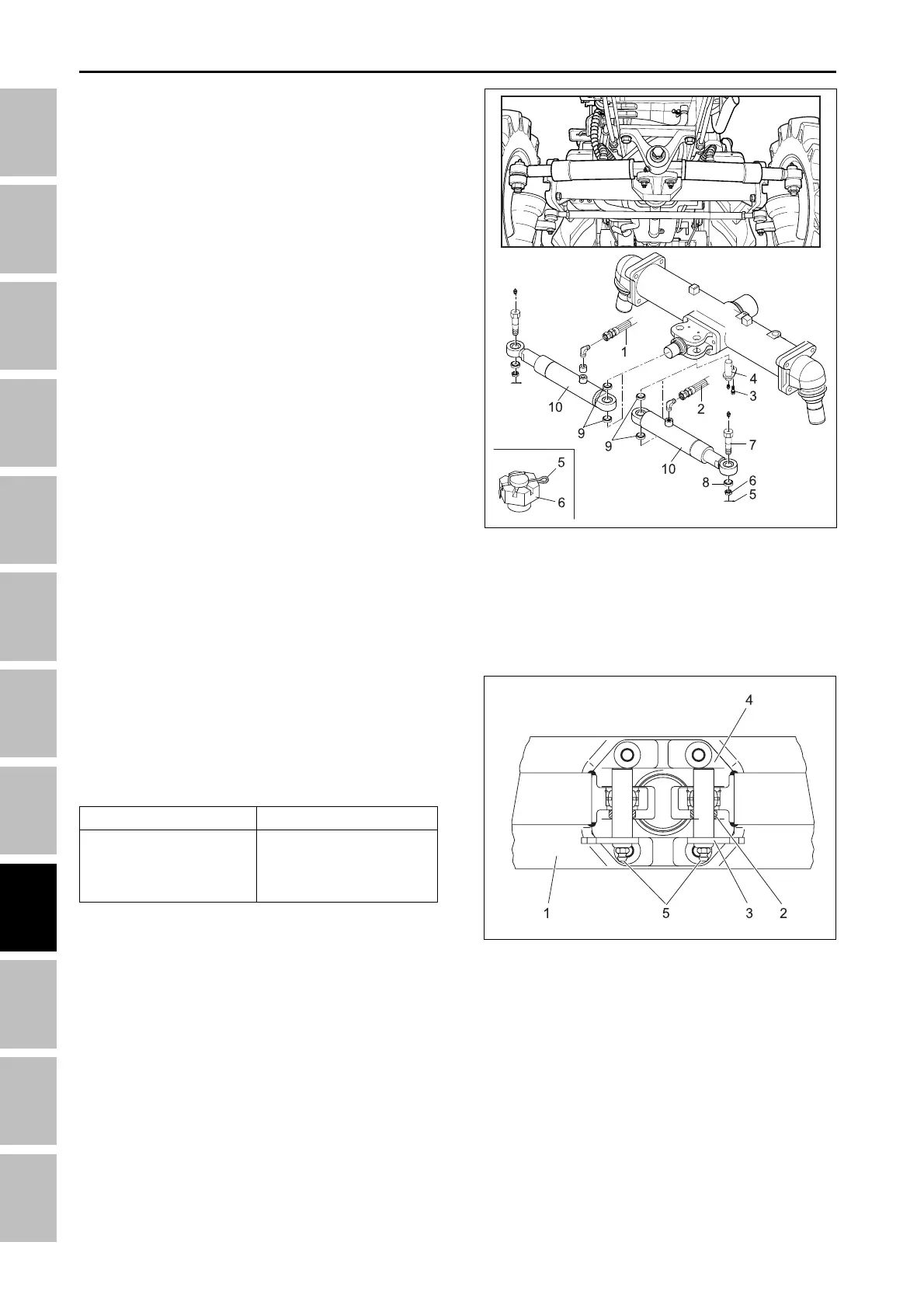

4.3 STEERING CYLINDER
4.3.1 DISASSEMBLING, ASSEMBLING
AND SERVICING
1. Disconnect the steering hoses (1, 2)
2. Pull out the split pin (5) and remove the nut (6).
3. With tapping the end of support pin using a plastics
hammer, pull out support pin from the front axle
case.
4. Remove the bolt (3) and pull out the cylinder sup-
port pin (4) from the center pin.
5. Remove the steering cylinder assembly (10).
(1) Steering hose (R) (6) Nut
(2) Steering hose (L) (7) Support pin
(3) Bolt (8) Spacer
(4) Cylinder support pin (9) Spacer
(5) Split pin (10) Steering cylinder
(1) Steering cylinder assembly
(2) Spacer
(3) Cylinder support pin
(4) Center pin
(5) Grease nipple
(When reassembling)
• When attaching the steering cylinder to the center
pin (4), make sure the position of spacers (2) is
correct. See the following figure.
• Apply grease to cylinder support pin and grease
nipples (5).
196W848A
196W849A
Item
End nut
Tightening torque
48.0 ~ 55.9 Nm
4.9 ~ 5.7 kgf-m
35.5 ~ 41.2 lb-ft
STEERING SYSTEM - SERVICING
