CK22/CK22H
2.4 HYDRAULIC BLOCK

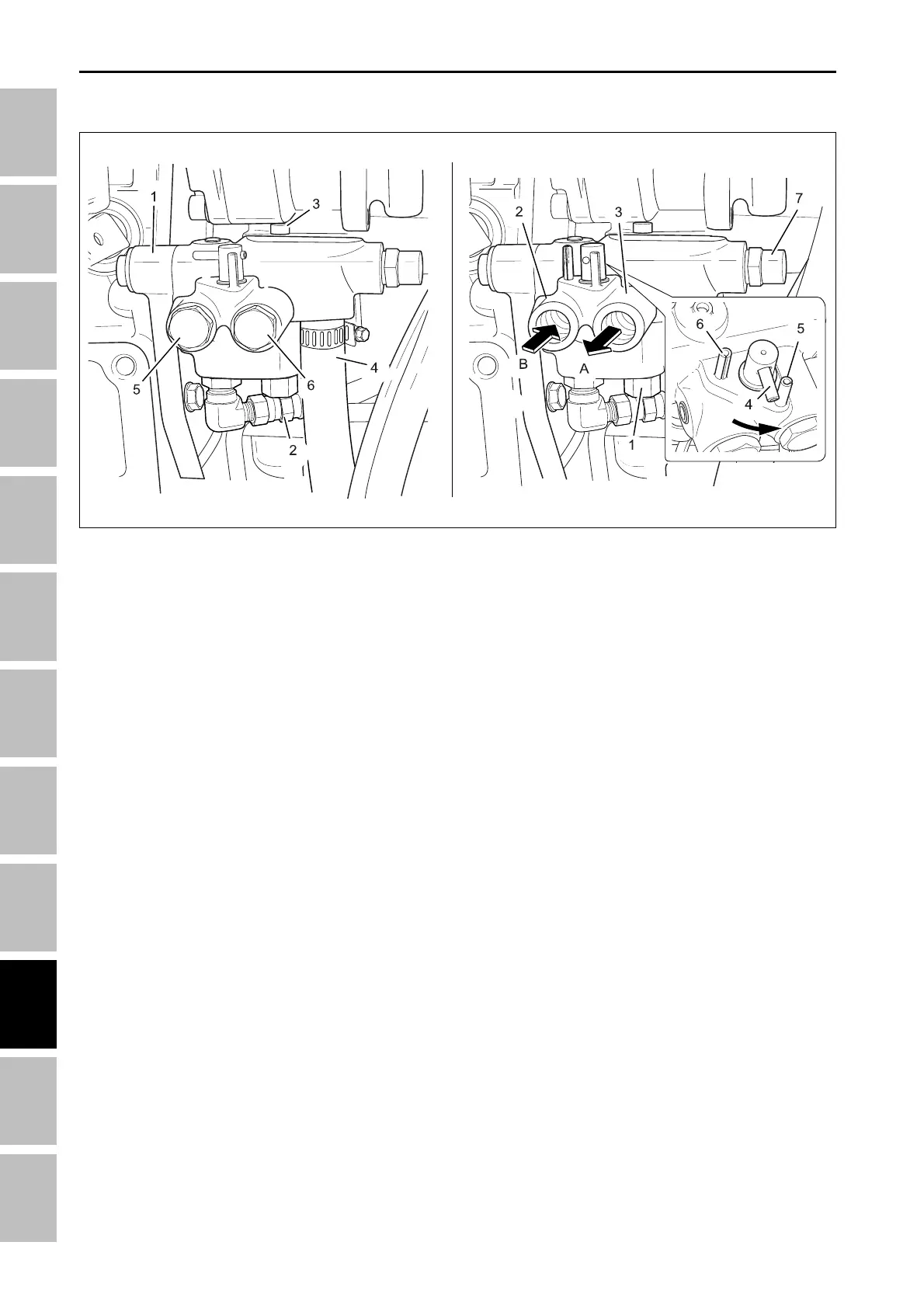

When implement is not attached When implement is attached
This hydraulic block type outlet is provided to send
hydraulic fluid out from the tractor to operate the hydraulic
cylinders on the implement, such as the power
steering, front end loader or front blade.
196W906A
(1) Flow priority valve
(2) Inlet from implements (PS 3/8″)
(3) Outlet to implements (PS 3/8″)
(4) Directional valve
(5) Pin (setting position for attaching implements)
(6) Pin (setting position for attaching no
implement)
(7) Relief valve
(A) Out (B) In
(1) To hydraulic control valve (3-point hitch)
(2) To sower steering (PS type only)
(3) From gear pump
(4) To gear pump (relief valve)
(5) From implement
(6) To implement
HYDRAULIC SYSTME - OPERATING PRINCIPLE
