4.2.5 INSPECTION
1. Inspection the spool and sleeve for evidence of
sticking, scuff marks, and any other damage. If found
defective, replace the spool and sleeve as a matched
marked set.
2. Check the pin to make sure it is not bent or cracked
and check the internal teeth on the spool for
damage.
3. Inspect the inside surfaces of the motor housing
for wear or damage.
4. Inspect the GEROTOR pump stator and rotor for
wear. Make certain the rotor turns within the stator.
5. Inspect the drive shaft for wear or damage.
6. Inspect the thrust bearing for wear or damage.
7. Inspect the centering springs for distortion. Center-
ing springs which have lost their tension should be
replaced.
2. With the centering spring slots lined-up, insert the
special tool (1), in the slots.
3. Assemble the centering springs (2), with the two
flat springs in the middle and two curved springs
on each side with the convexed side facing the flat
springs. Make sure the notched edges of the
springs face downward. Then position the assem-
bly into the notched groove of the installation tool.
4. While griping the outer edge of the centering spring
assembly and maintaining pressure against the
tool, slide the tool out of the assembly leaving the
springs positioned in the slots.

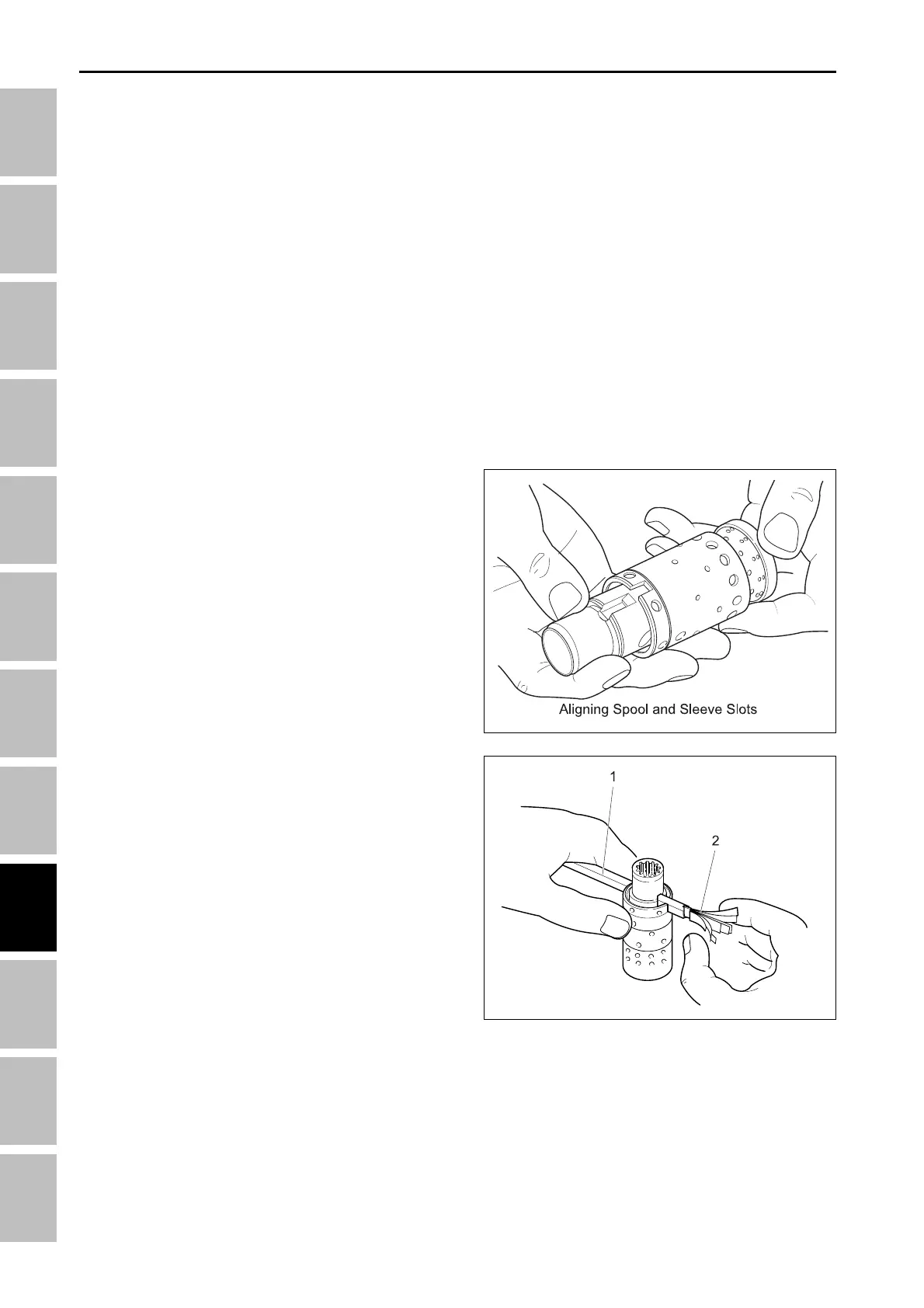

196W833A
196W834A
(1) Special tool (2) Centering springs
4.2.6 ASSEMBLY
1. Slide the spool into the sleeve. Position the spool
so that the centering spring slots on the spool and
sleeve line up, in order for the centering springs to
be installed.
