CK22/CK22H

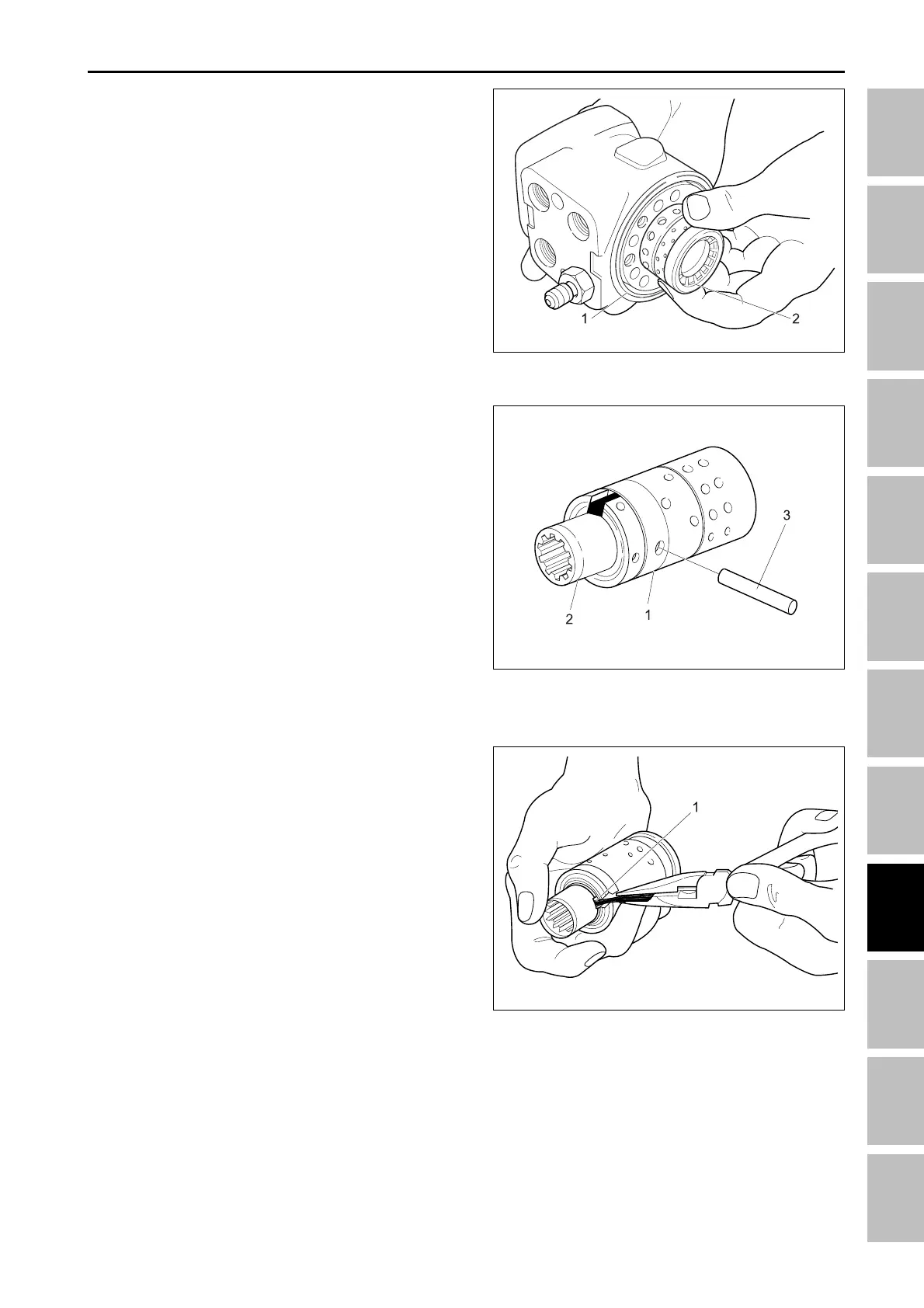

10.Remove the pin (3), from the sleeve (1), and spool
(2), assembly.
11. Push the spool upward out of the sleeve slightly
and pull the centering springs (1), outward. Then
remove the spool from the bottom side of the sleeve.
196W831A
196W832A
(1) Sleeve (3) Pin
(2) Spool
(1) Centering springs
9. Pull the sleeve and spool (2), from the bottom of the
motor housing (1). The sleeve is a close fit in the
steering motor housing and should be rotated
slightly during removal. While rotating the sleeve
and spool out of the housing keep the pin, which
runs through the components, as horizontal as pos-
sible to the bench. This helps prevent the pin from
sliding out of its hole and catching on the lands in
the housing. Pull the sleeve out as straight as pos-
sible to prevent it from becoming jammed.
196W830A
(1) Motor housing (2) Spool
STEERING SYSTEM - SERVICING
