CK22/CK22H
4.26 MID PTO
1. Place a container under the transmission drain plug
(20).
Remove the drain plug (20) and drain the oil.
Install and tighten the drain plug.
2. Support the mid PTO assembly, remove the bolts
(1) and remove the assembly.
3. Remove the O-ring (3), spring pin (4), mid PTO
counter shaft (5), ball bearings (6), (7), snap ring
(8) and 37T gear (9).
4. Remove the oil seal (10) and snap ring (12).
5. Pull the shaft out of the housing.
Remove the 23T gear (13) and ball bearing (14)
from the housing.
6. Remove the snap ring (15), collar (16), ball bearing
(17) and mid PTO shaft (11).
Use a hydraulic press to remove.
(When reassembling)
• Replace the oil seal (10) with a new one.

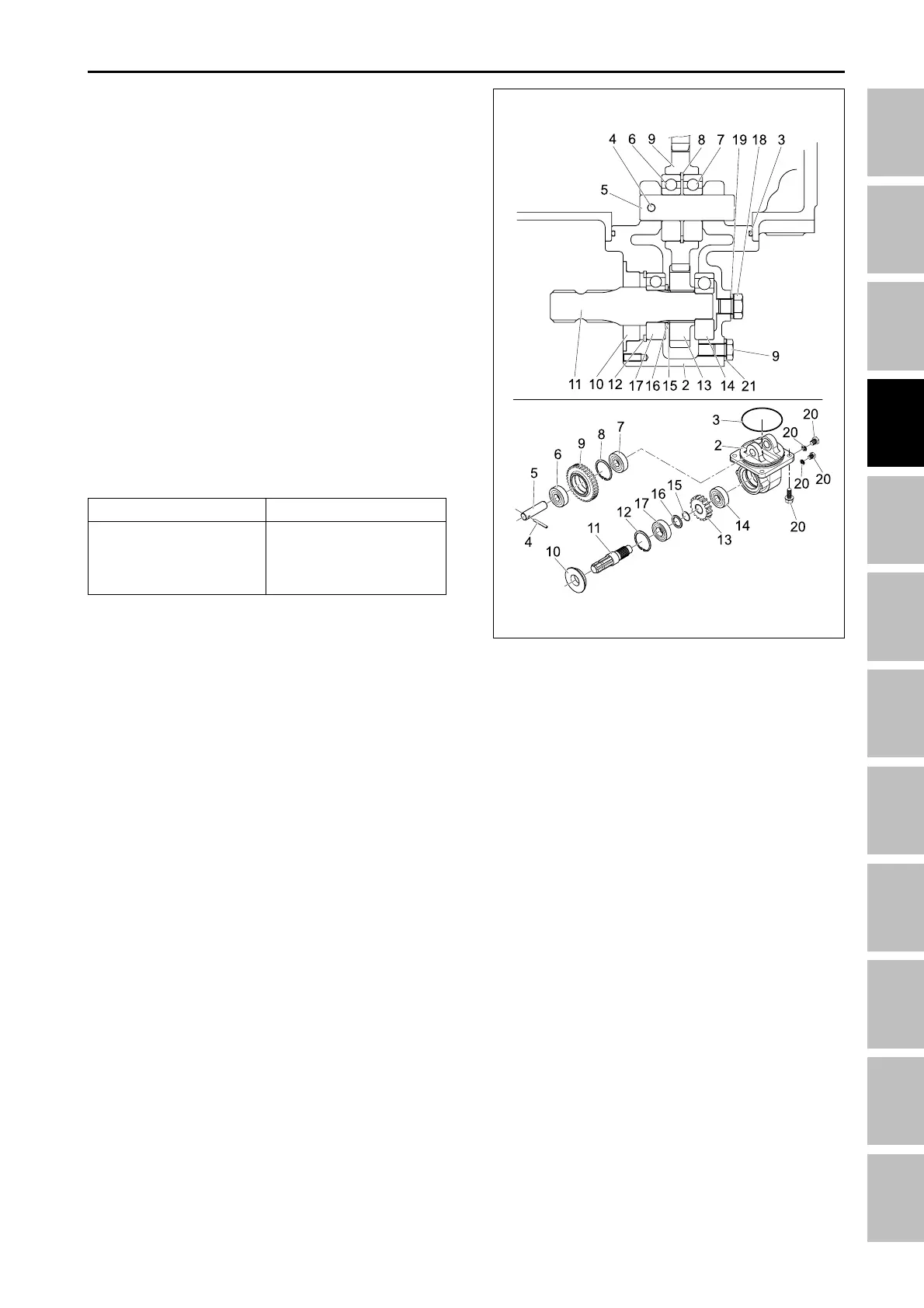

(1) Bolt (12) Snap ring
(2) Mid PTO case (13) 23T bear
(3) O-ring (14) Ball bearing
(4) Spring pin (15) Snap ring
(5) Mid PTO counter shaft (16) Collar
(6) Ball bearing (17) Ball bearing
(7) Ball bearing (18) Plug
(8) Snap ring (19) Seal washer
(9) 37T gear (20) Plug
(10) Oil seal (20) Plug
(11) Mid PTO shaft
196W481A
Item
Mid PTO case mounting
bolts
Tightening torque
48.1 ~ 55.9 Nm
4.9 ~ 5.7 kgf-m
35.5 ~ 41.2 lb-ft
TRANSMISSION - SERVICING
