CK22/CK22H
2.3.3 HIGH-LOW RANGE SHIFT

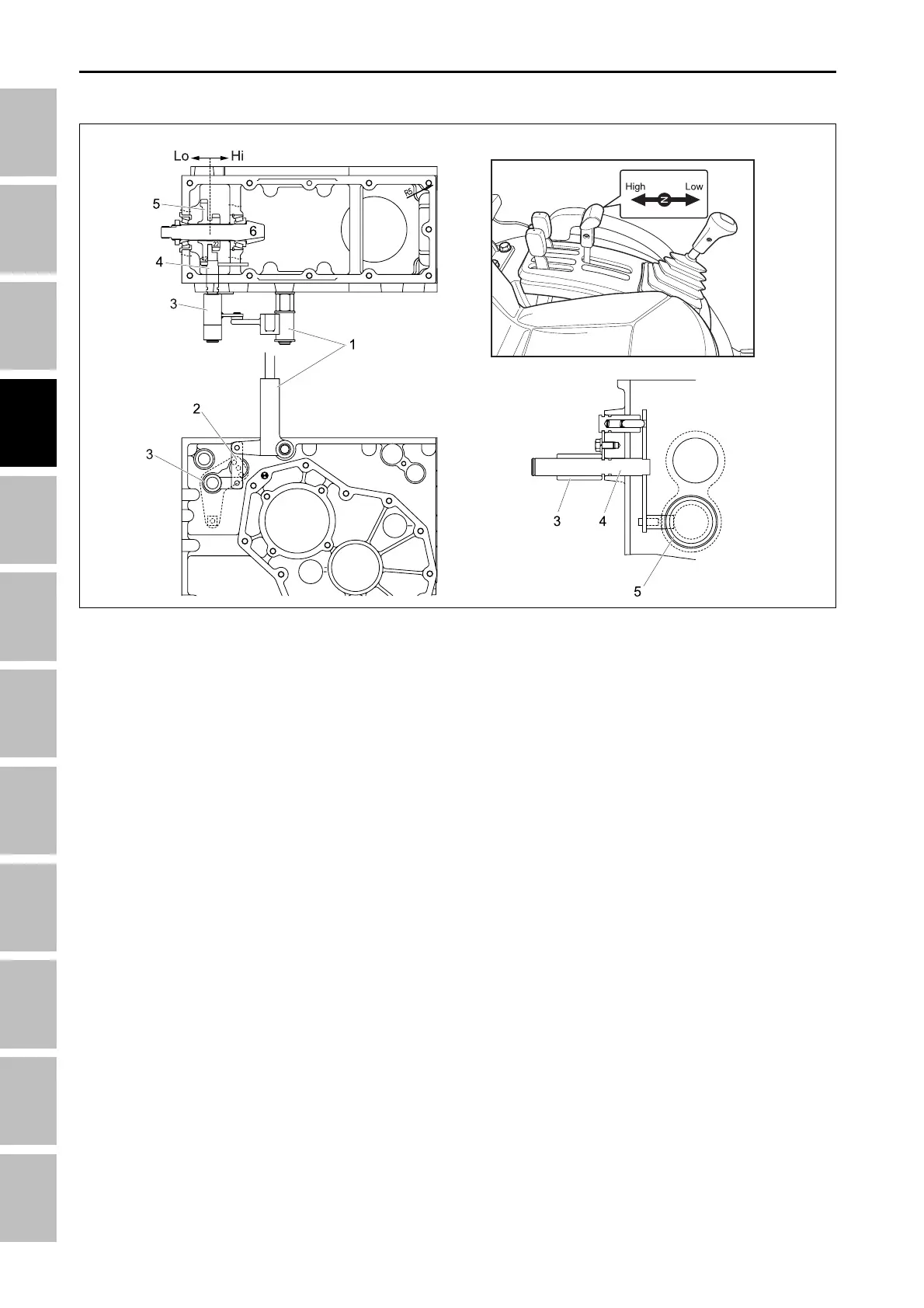

(1) High-Low shift lever
(2) Connecting plate
(3) High-Low shift connecting arm
(4) High-Low shift arm
(5) 42T - 22T gear
• The high-low shift lever (1) is located at left side of
driver’s seat and connected to connecting plate (2),
high-low shift connecting arm (3), high-low shift arm
(4) and 42T - 22T Gear (5)
• If pushing high-low shift lever (1) forward, “Low
speed” transmission shift will be done and if pull-
ing backward, “High speed” transmission shift will
be done.
196W416A
TRANSMISSION - OPERATING PRINCIPLE
