CK22/CK22H
196WA55A

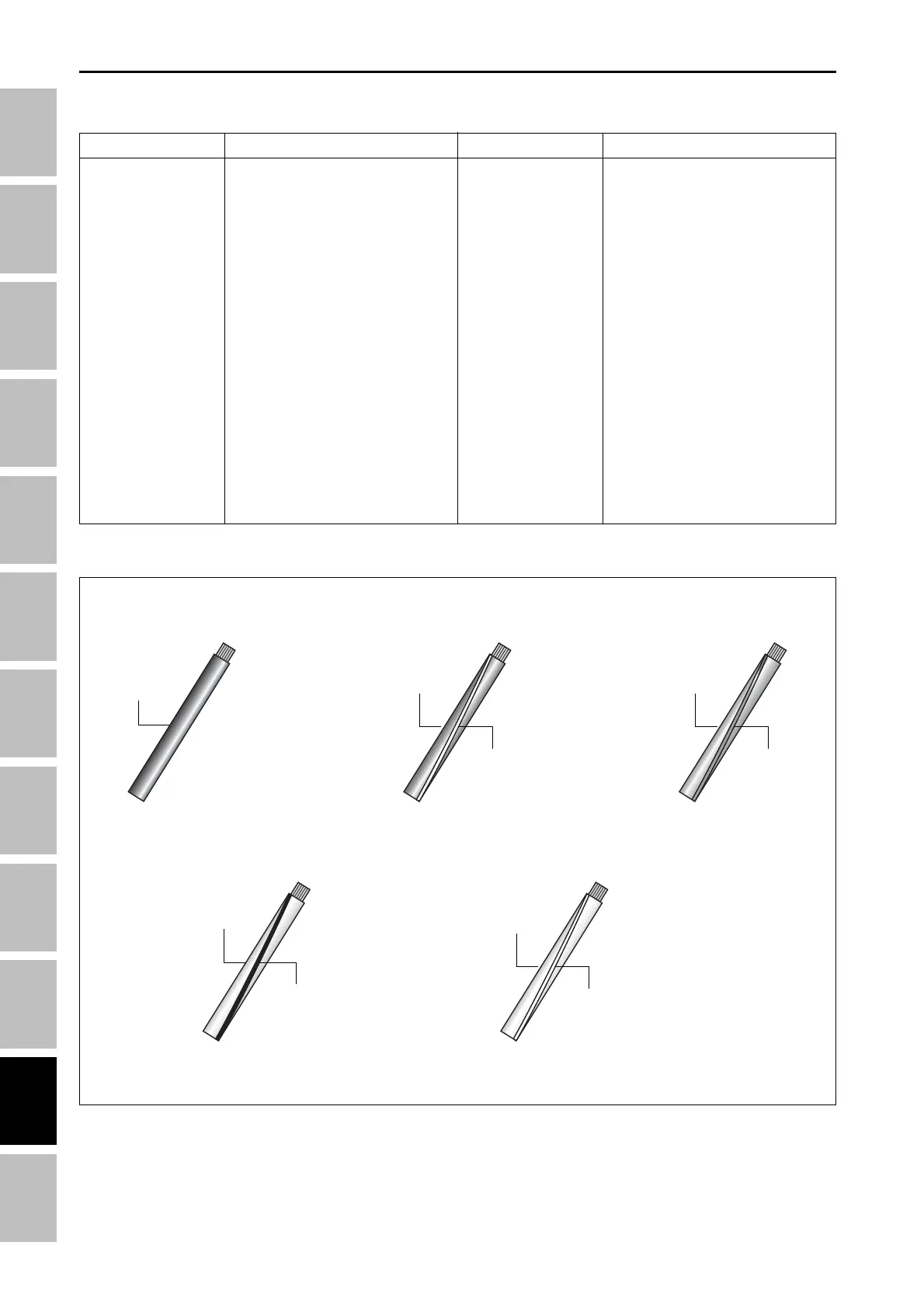

1.3.2 WIRING COLOR IDENTIFICATION
Color
Black
Blue
White
Brown
Green
Red
Black / White
Black / Red
Yellow / Green
Yellow / Brown
Brown / Red
Red / White
Yellow / Red
Yellow / White
White / Yellow
Code
B
L
W
Br
G
R
BW
BR
YG
YBr
BrR
RW
YR
YW
WY
Color
Yellow
Light Green
Gray
Orange
Pink
Black/Yellow
Light Green / Red
Light Green / White
Black / Blue
Blue / White
Green / White
Red / Black
Blue / Red
Blue / Black
Red / Blue
Code
Y
Lg
Gr
O
P
BY
LgR
LgW
BL
LW
GW
RB
LR
LB
RL
B (Black)
Primary
L (Blue)
R (Red)
L (Blue)Secondary
R (Red)
Y (Yellow)
W (White)
Lg (Light green)
B (Black)
(Code: B) (Code: LR) (Code: RL)
(Code: LgB) (Code: YW)
1. The following figures are examples for colors according to the codes.
