CK22/CK22H

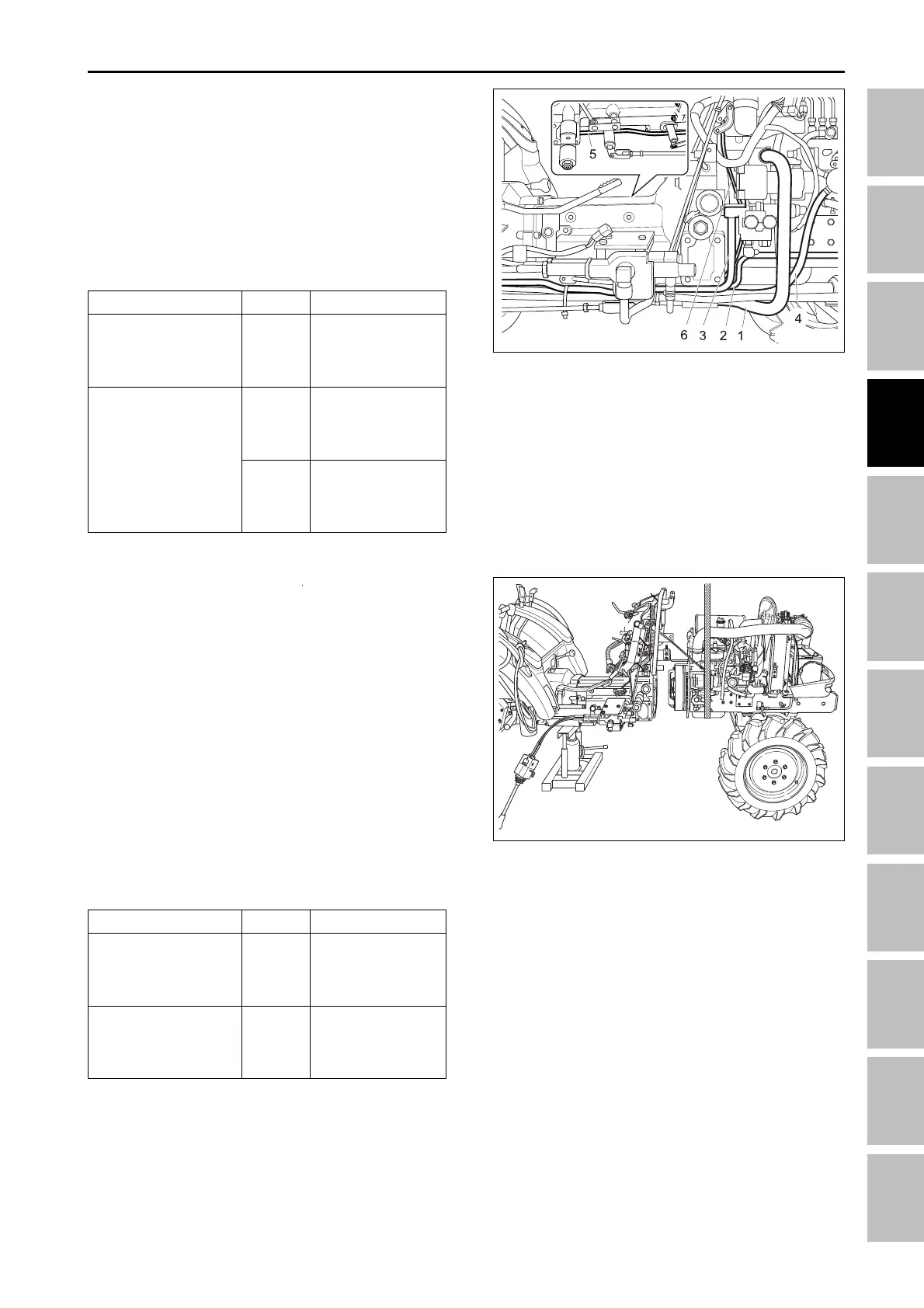

4.14 DISASSEMBLING ENGINE &
CLUTCH HOUSING
1. Disconnect the brake rod (RH/LH).
2. Remove the HST control bar.
3. Disconnect the bonnet wiring and the battery termi-
nal (+).
4. Place the jacket to the bottom of the clutch housing.
5. Raise the engine with nylon rope and support the
clutch housing.
6. Remove the starting motor, bolts & nuts and then
remove the engine by pulling it slowly.
(When reassembling)
• Apply grease to the splines.
• Apply liquid gasket (Three Bond 1,208D or equivalent)
to joint face of the engine and clutch housing.
4.13 HYDRAULIC TUBES
1. Remove the suction tube 3 (1), hydraulic tube (3),
cooling tube 4 (2), fuel hose 2 (4), fuel hose 3 (6)
and cooling tube 3 (5).
(When reassembling)
• Make sure to clamp connecting rubber hose of in-
take tube to prevent air entered.
• Apply hydraulic tube connecting O-ring with grease
and take a precaution not to be damage.
(1) Suction tube 3 (4) Fuel hose 2
(2) Cooling tube 4 (5) Cooling tube 3
(3) Hydraulic tube (P1) (6) Fuel hose 3
196W4D2A
196W4D3B
Item
Engine and clutch
housing mounting
bolts, nuts
Engine and clutch
housing mounting
stud bolts
Tightening torque
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft
39.2 ~ 49.0 N·m
4.0 ~ 5.0 kgf·m
28.9 ~ 36.2 lbf·ft
Spec.
M12
M14
Item
Joint bolt
Tightening bolt
Tightening torque
39.2 ~ 44.1 Nm
4.0 ~ 4.5 kgf-m
28.9 ~ 32.5 lb-ft
23.6 ~ 27.4 Nm
2.4 ~ 2.8 kgf-m
17.4 ~ 20.2 lb-ft
23.6 ~ 27.4 Nm
2.4 ~ 2.8 kgf-m
17.4 ~ 20.2 lb-ft
Spec.
M18
M8
M10
TRANSMISSION - SERVICING
