CK22/CK22H
4.24 PTO LEVER AND MID PTO LEVER

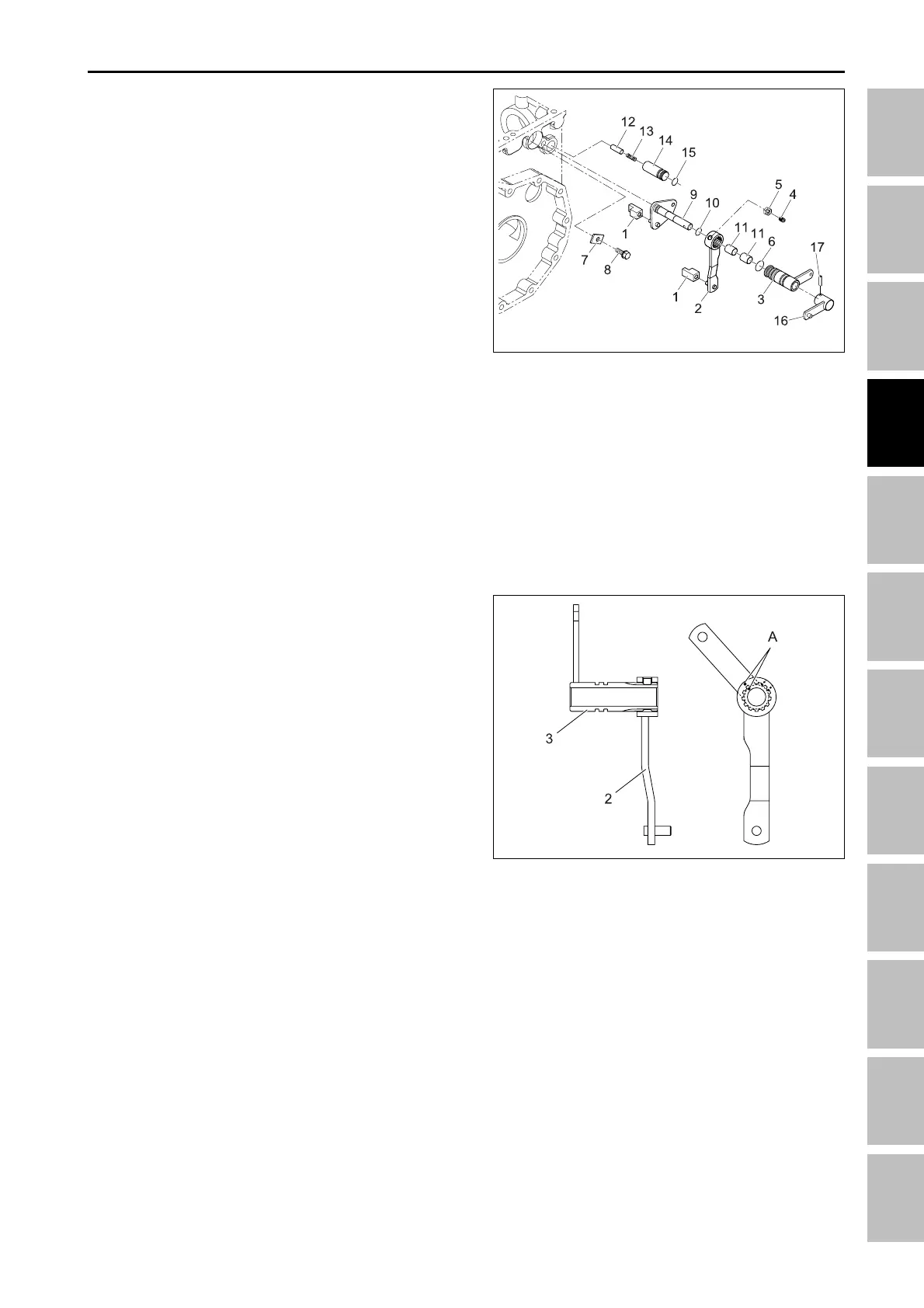

1. Tap out the spring pin (18).
2. Remove the mid PTO lever 1 (17).
3. Remove the nut (5), screw (4).
4. Remove the items (13 ~ 16).
5. Remove the PTO shift arm (3), O-ring (6).
6. Remove the mid PTO shift arm (10), shifter (9), PTO
shifter (2) and shifter (1).
(1) Shifter (10) Mid PTO shift arm
(2) PTO shifter (11) O-ring
(3) PTO shifter arm (12) Bushing
(4) Screw (13) Pin
(5) Nut (14) Spring
(6) O-ring (15) Mid PTO boss
(7) Stopper (16) O-ring
(8) Bolt (17) Mid PTO lever 1
(9) Shifter (18) Spring pin
196W477A
(When reassembling)
Make sure of the marks in the PTO shifter (2) and PTO
shifter arm (3) as shown in the figure.
(2) PTO shifter
(3) PTO shifter arm
(A) Marking
196W478A
TRANSMISSION - SERVICING
