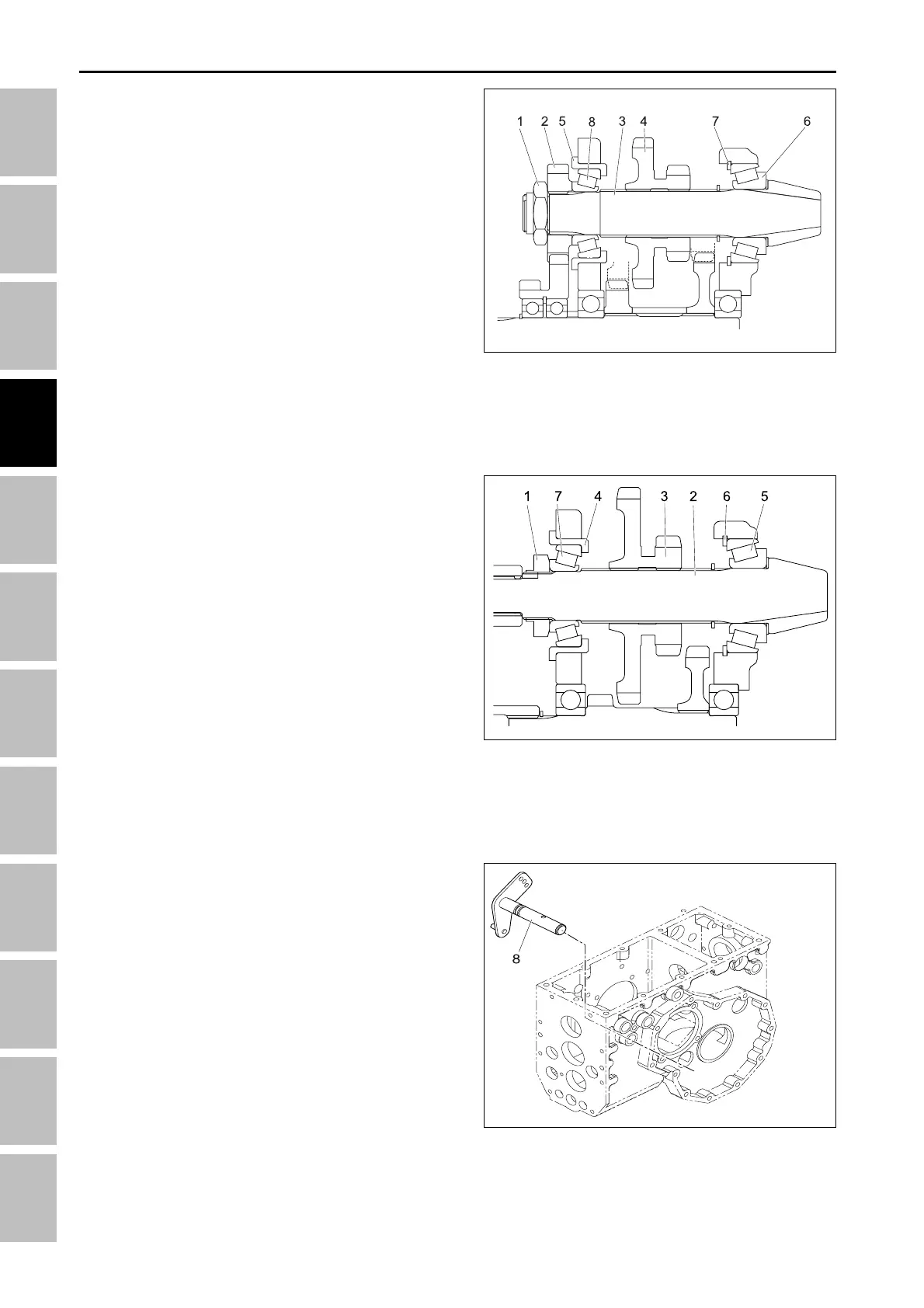

8. Remove the range shift arm (8).
(Separate it from inside of gear case.)
196W476A
(8) Range shift arm
[CK22]
5. Straighten locking tab of lock nut (1) and remove
the nut (1).
6. Tap out the spiral bevel gear (2) to the rear.
7. Remove the 42T-22T gear (3).
(1) Nut (5) Taper roller bearing
(2) Spiral bevel pinion (6) Snap ring
(3) 42T-22T gear (7) Taper roller bearing
(4) Bearing case
196W475A
[CK22H]
5. Straighten locking tab of lock nut (1) and remove
the nut (1).
6. Remove the 20T gear (2) and tap out the spiral bevel
gear (3) to the rear.
7. Remove the 33T-20T gear (4).
(1) Nut (5) Bearing case
(2) 20T gear (6) Taper roller bearing
(3) Spiral bevel gear (7) Snap ring
(4) 33T-20T gear (8) Taper roller bearing
196W474A
