CK22/CK22H

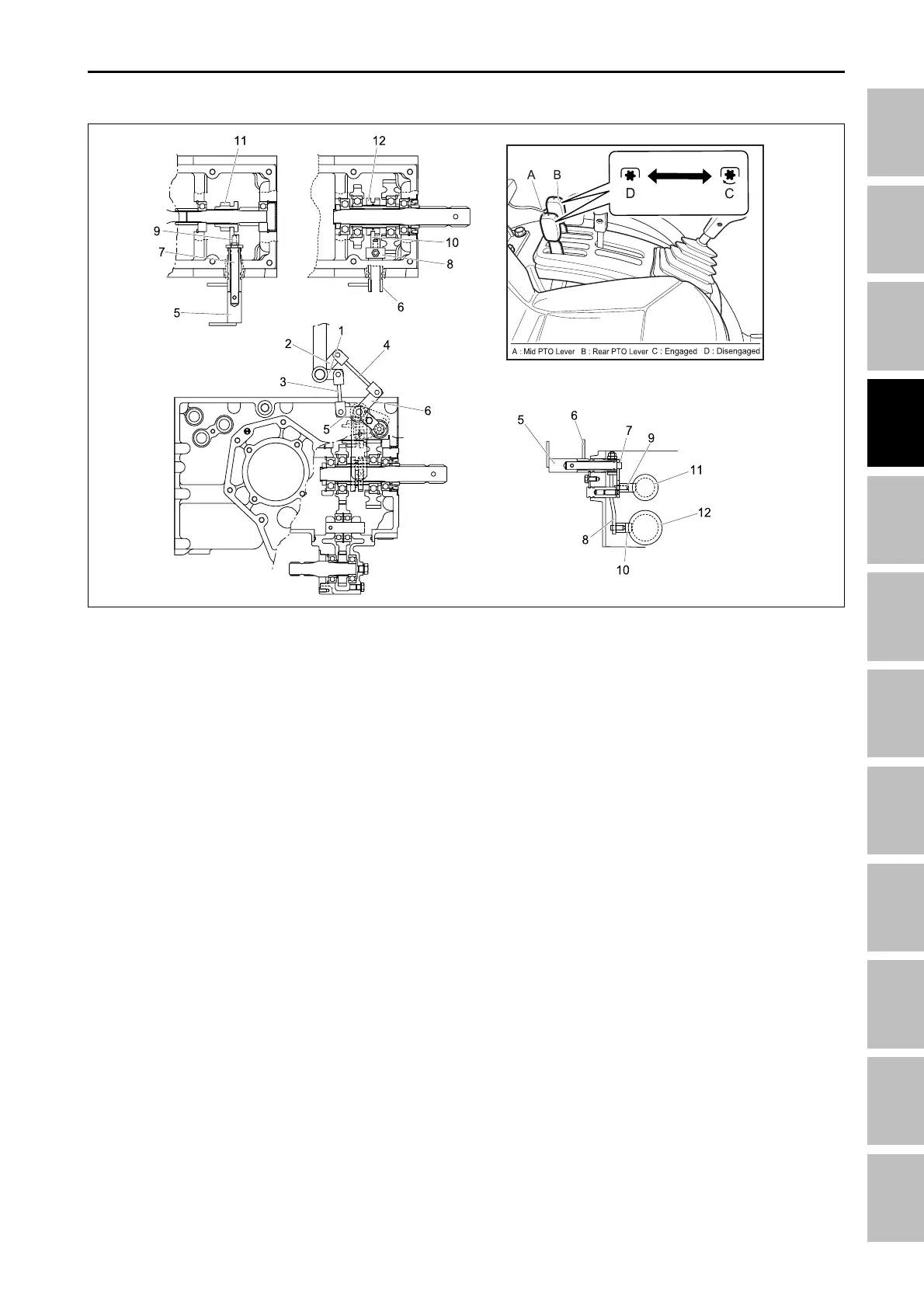

2.3.4 MID, REAR PTO SHIFT
(1) Mid PTO lever
(2) Rear PTO lever
(3) Mid PTO rod
(4) Rear connecting rod
A. MID PTO
• The mid PTO lever (1) is located at left side of driver’s
seat and connected to mid PTO rod (3), mid PTO
lever 1 (5), mid PTO shift arm (7) and shifter (9).
• If pushing the mid PTO lever forward, it will be set to
“Engaged” and if pulling backward, it will be set to
“Disengaged”.
196W418A
(9) Shifter
(10) Shifter
(11) 17 gear
(12) PTO change shift
(5) Mid PTO lever 1
(6) PTO shift arm
(7) Mid PTO shift arm
(8) PTO shifter
B. REAR PTO
• The rear PTO lever (2) is located at left side of
driver’s seat and connected to rear connecting rod
(4), rear PTO shift arm (6), rear PTO shifter (8) and
shifter (10).
• If pushing the rear PTO lever forward, it will be set to
“Engaged” and if pulling backward, it will be set to
“Disengaged”.
TRANSMISSION - OPERATING PRINCIPLE
