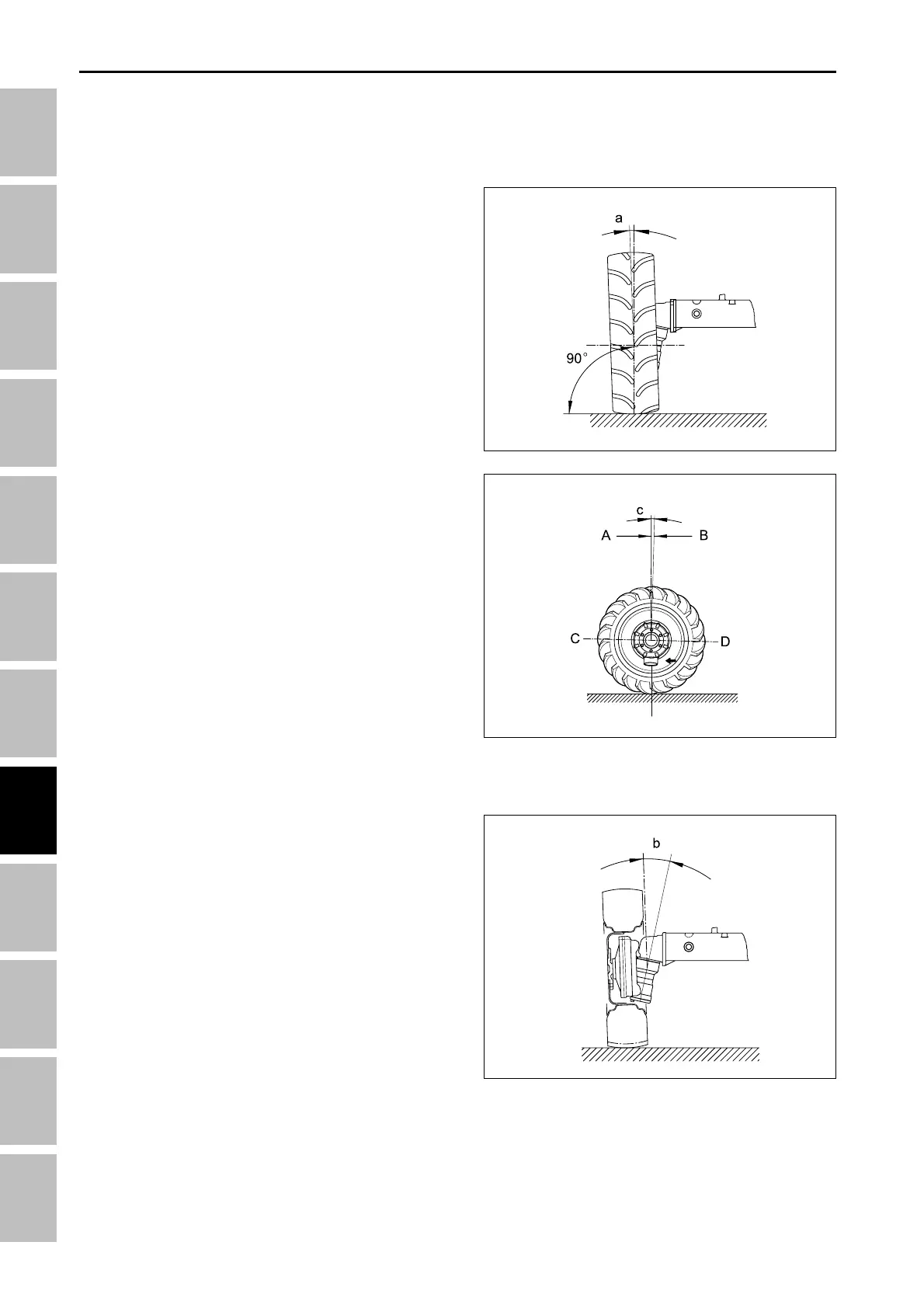

2.2 WHEEL ALIGNMENT
To improve control and safety running, front wheel is
applied with adequate inclination in the direction of left,
right and forward.
1. Camber reduces bending or twisting of the front axle
caused by vertical load or running resistance, and
also maintains the stability in running.
Camber angle
Camber angle (a) = 2°
196W702A
2. Caster helps provide steering stability.
Caster angle
Caster angle (c) = 0°
196W703A
3. Kingpin angle reduces rolling resistance of the
wheels, and prevents any shimmy motion of the
steering.
King pin angle
King pin angle (b) = 12°
196W704A
(A) Perpendicular (C) Front
(B) Kingpin center line (D) Rear
