CK22/CK22H

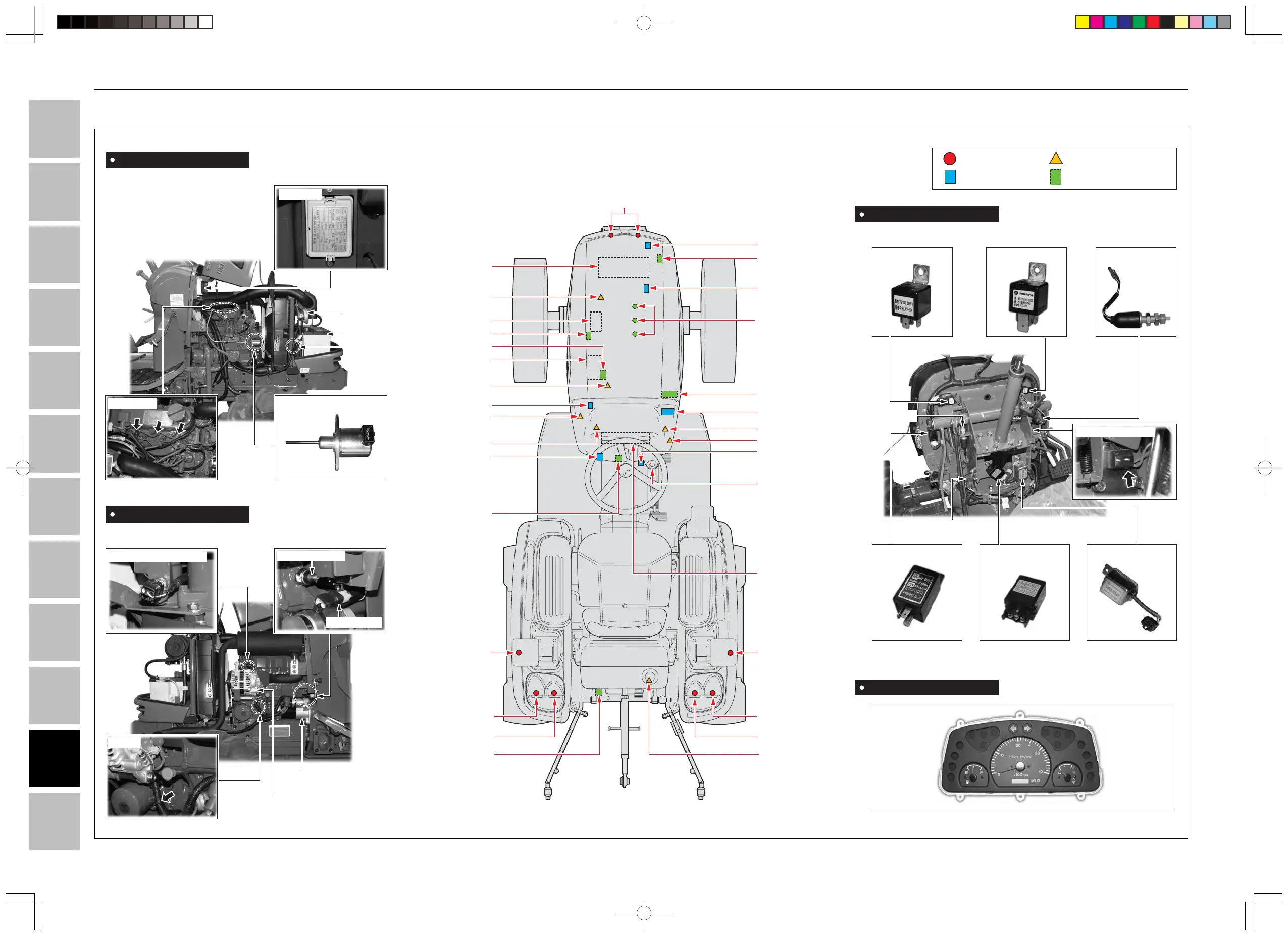

1.2 ELECTRIC COMPONENT LOCATION (CK22)
1.Battery
18.Engine stop solenoid
19.Glow plugs
20.Fuse box
21.Preheating relay
22.Brake switch
23.Parking brake switch
25.Key switch
26.Instrument panel
17.Diode
16.Horn
32.Head Lamp
12.Turn signal lamp (LH) 27.Turn signal lamp (RH)
6.Oil pressure switch
3.Alternator
33.Diode
2.Coolant temperature
sensor
4.Slow blow fuse
5.Starter Motor
10.Pull-coil relay
7.Starter relay
8.Flasher unit
11.Preheating controller
9.Clutch switch
14.Tail lamp(LH)
15.7pin Socket
28.Brake lamp(RH)13.Brake lamp(LH)
29.Tail lamp(RH)
30.Fuel sender
24.Timer relay
Interior Electric Components
Instrument panel(26)
Engine (RH)
Engine (LH)
1.Battery
16.Horn
17.Diode
18.Engine stop solenoid
3.Alternator
5.Starter Motor
7.Starter relay 21.Preheating relay 22.Brake switch
24.Timer relay
9.Clutch switch
10.Pull-coil relay
8.Flasher unit 11.Preheating controller
20.Fuse box
19.Glow plugs
2.Coolant temperature sensor
4.Slow blow fuse
6.Oil pressure switch
33.Diode
23.Parking brake switch
Lamp
Switch, Sensor, Sender
Relay, Solenoid
Other Components
196WA55A
ELECTRIC SYSTEM - CIRCUIT AND COMPONENT LOCATION
