4.3.8 BRAKE AND TAIL LIGHTS (INSIDE:
BRAKE LIGHT, OUTSIDE: TAIL
LIGHT) (CK22-USA)

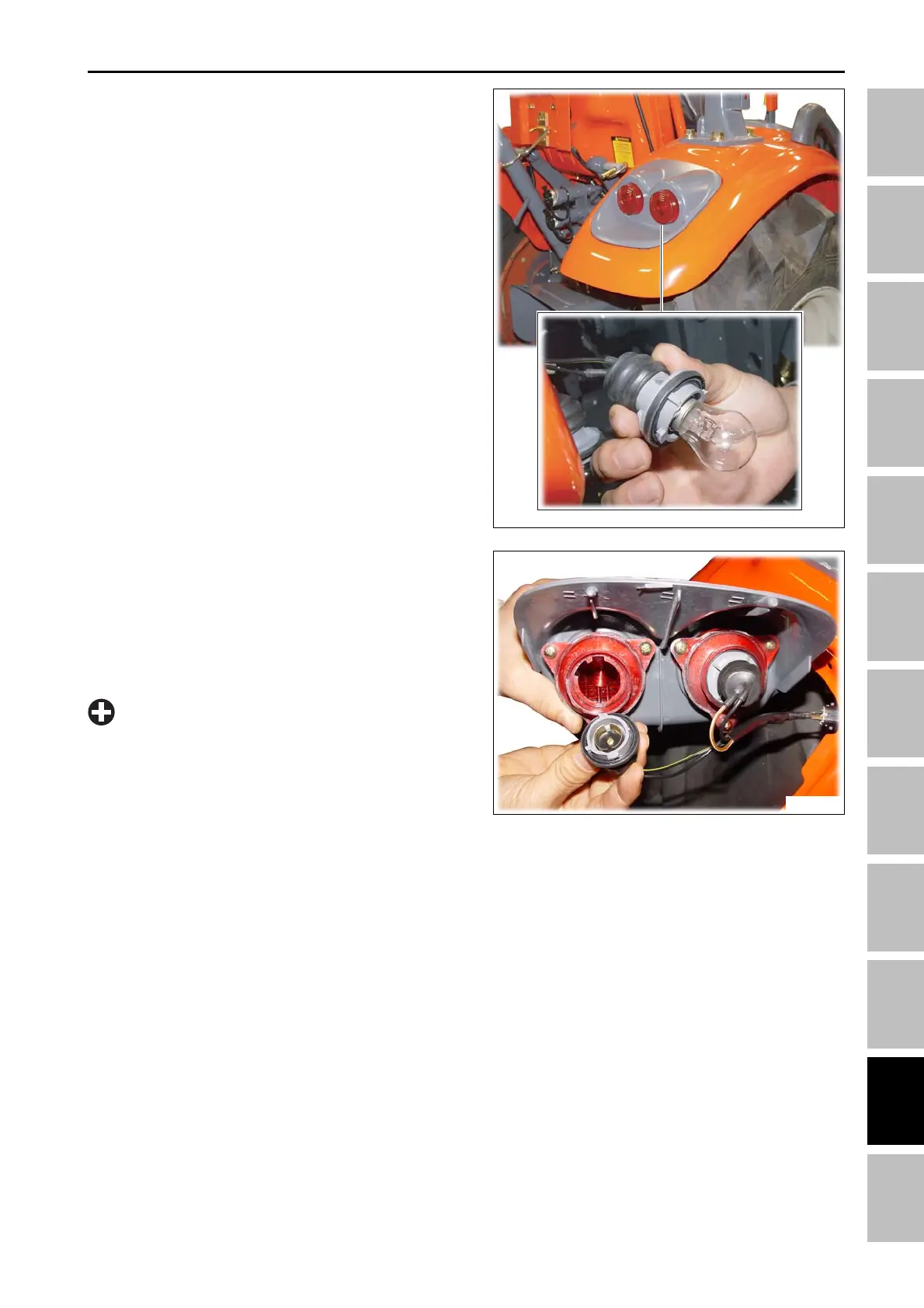

To replace a faulty taillight bulb.
1. Twist socket counterclockwise to remove from lens.
2. Push in on the bulb and rotate counterclockwise in
the socket to remove the old bulb.
• Replace the bulb with a new one of the same
capacity.
IMPORTANT
2. Insert a new bulb into the socket and turn the bulb
clockwise until tightened.
NOTES:
• when installing the socket to the taillamp housing,
make sure that the socket’s protrusions are aligned
with the housing’s grooves.
196WA68A
ELECTRIC SYSTEM - SERVICING
