CK22/CK22H
196W4C9A

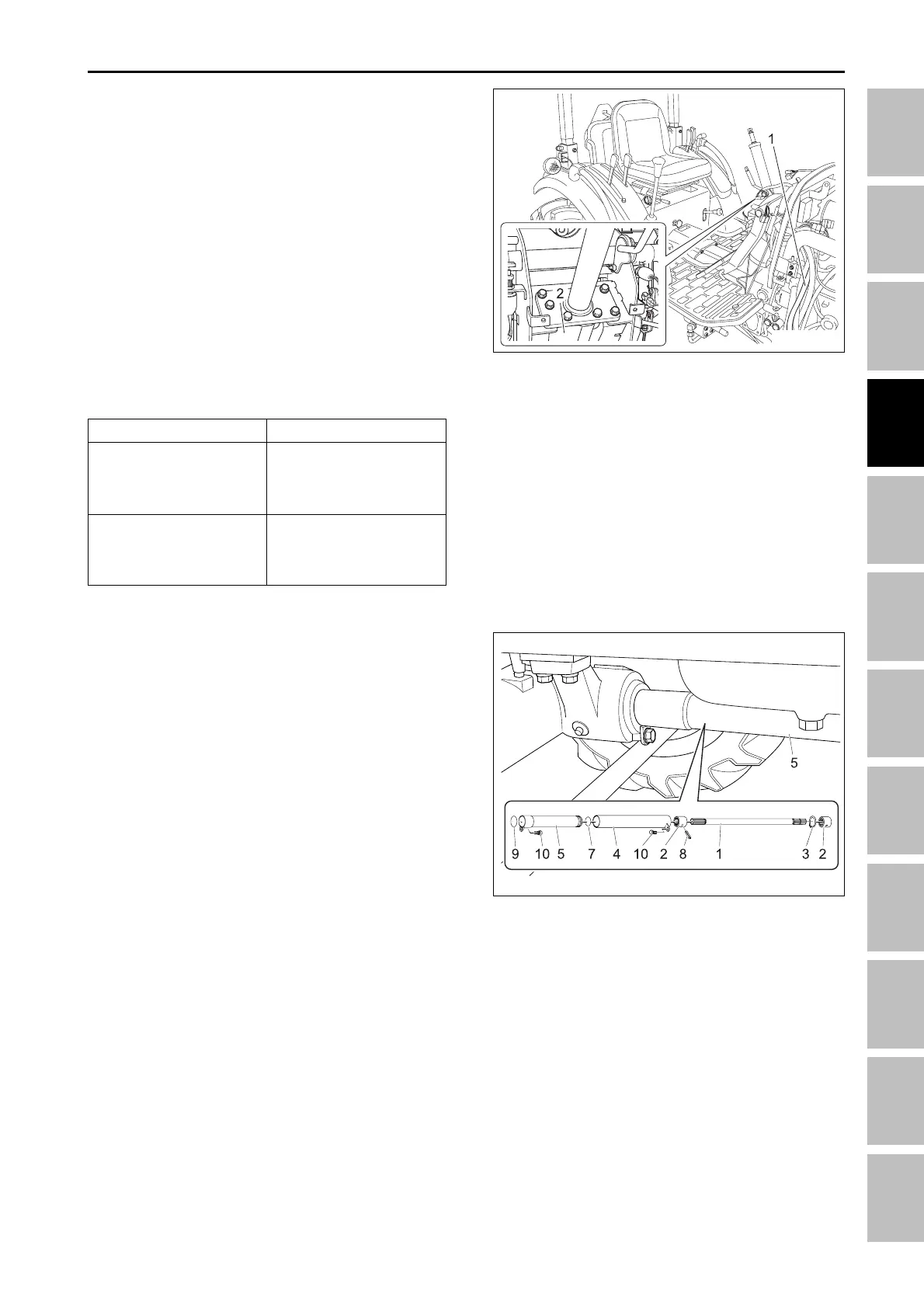

4.5 PROPELLER SHAFT
1. Slide the propeller shaft cover (5), (4) after remov-
ing the bolts (10).
2. Tap out the spring pin (8), and then slide the cou-
pling (2) to the rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft.
(1) Propeller shaft (6) O-ring
(2) Coupling (7) O-ring
(3) Cir-clip (8) Spring pin
(4) Propeller shaft cover 1 (9) O-ring
(5) Propeller shaft cover 2 (10) Bolt
4.4 POWER STEERING UNIT
1. Disconnect the steering hose assembly (1) (L.R.P).
2. Disconnect the hose band.
3. Remove the mounting bolts in the power steering
unit (2) and remove the steering hose T and then
remove the power steering unit assembly slowly.
196W4C8B
(1) Steering hose assembly
(2) Power steering unit
(When reassembling)
• When tighten a hose band of steering hose T, con-
firm a direction of a hose band.
- A hose band can be interfere with bolt.
• A hose classification
- Steering hose P: A red tag attachment
- Steering hose R: A white tag attachment
- Steering hose L: A yellow tag attachment
- Steering hose T: No tag
Item
Steering hose P, R, L
Hose band
Tightening torque
29.4 ~ 34.3 Nm
3.0 ~ 3.5 kgf-m
21.7 ~ 25.3 lb-ft
9.8 Nm
1.0 kgf-m
7.2 lb-ft
