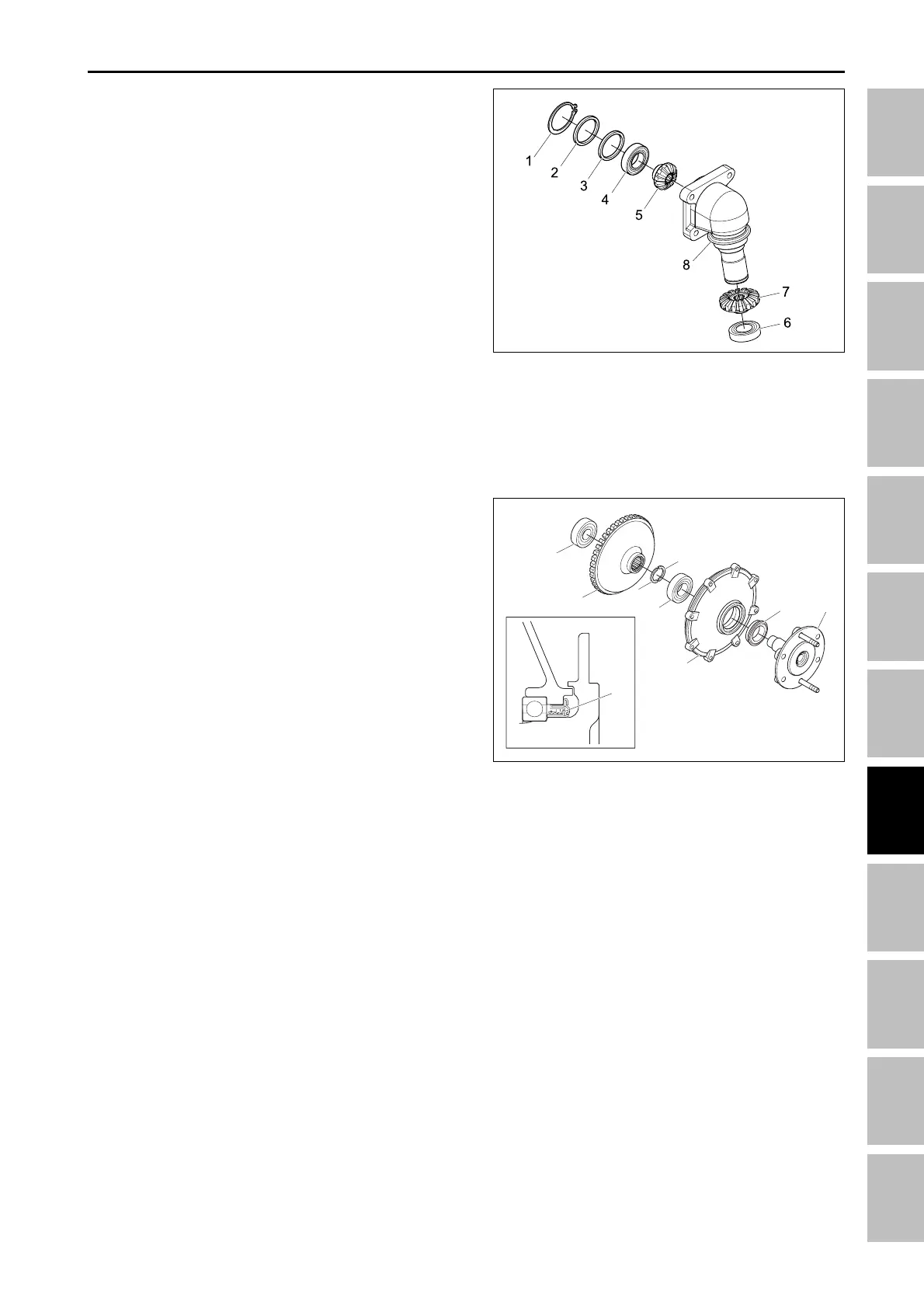

5.1.8 DISASSEMBLING BEVEL GEAR
CASE GEARS
1. Remove the internal snap ring (1).
2. Take out the bevel gears (5), (7) with ball bearings
(4), (6), collar (2) and shims (3).
(When reassembling)
• Install the same shims (3) before they are removed.
196W723A
(1) Snap ring (5) 11 bevel gear
(2) Shim (6) Ball bearing
(3) Shim (7) 16 bevel gear
(4) Ball bearing (8) Bevel gear case
5.1.9 DISASSEMBLING AXLE
1. Remove the bearing with a special use puller set.
2. Take out the 40T bevel gear (2).
3. Take out the collar (1).
4. Tap out the front axle (3).
(When reassembling)
• Install the oil seal (5) of the front differential cover
(4), noting its direction as shown in the left figure.
196W724A
(1) Snap pin
(2) 40T bevel gear
(3) Front axle
(4) Front differential cover
(5) Oil seal
(6) Bearing
(7) Bearing
