CK22/CK22H

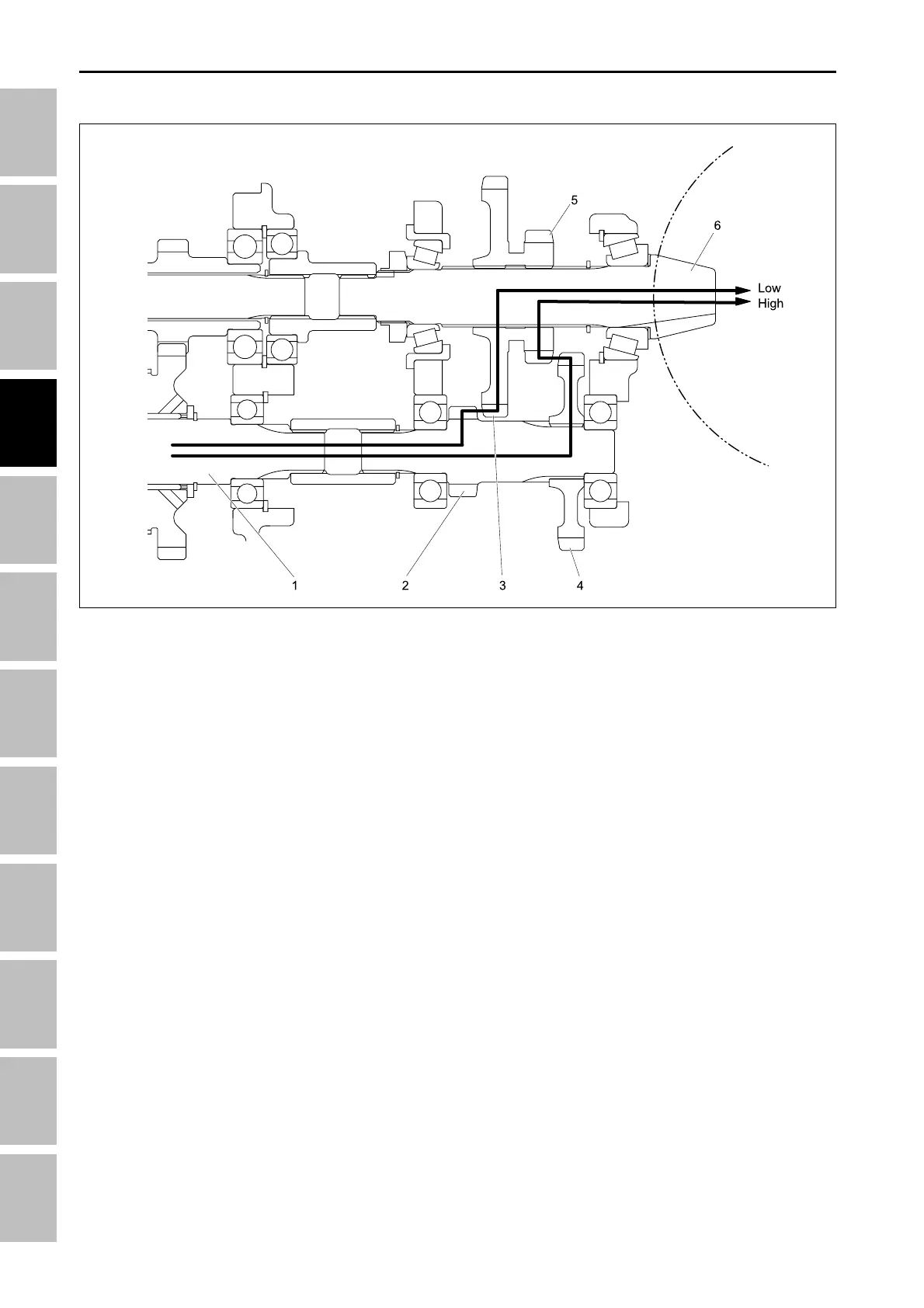

2.2.3 HIGH-LOW SHIFT
(1) Counter shaft
(2) 14T gear (CK22), 23T gear (CK22H)
(3) 42T gear (CK22), 33T gear (CK22H)
With high/low stage, employs selective engagement
method and when setting high-low shift lever to trans-
mission position, the power will be transmitted.
ff
ff
f HIGH SPEED
Counter shaft (1) → 34T (36T) gear (4) → 22T (20T)
gear (5) → Spiral bevel pinion (6)
ff
ff
f LOW SPEED
Counter shaft (1) → 14T (23T) gear (2) → 42T (33T)
gear (3) → Spiral bevel pinion (6)
196W407A
(4) 34T gear (CK22), 36T gear (CK22H)
(5) 22T gear (CK22), 20T gear (CK22H)
(6) Spiral bevel pinion
TRANSMISSION - OPERATING PRINCIPLE
