CK22/CK22H

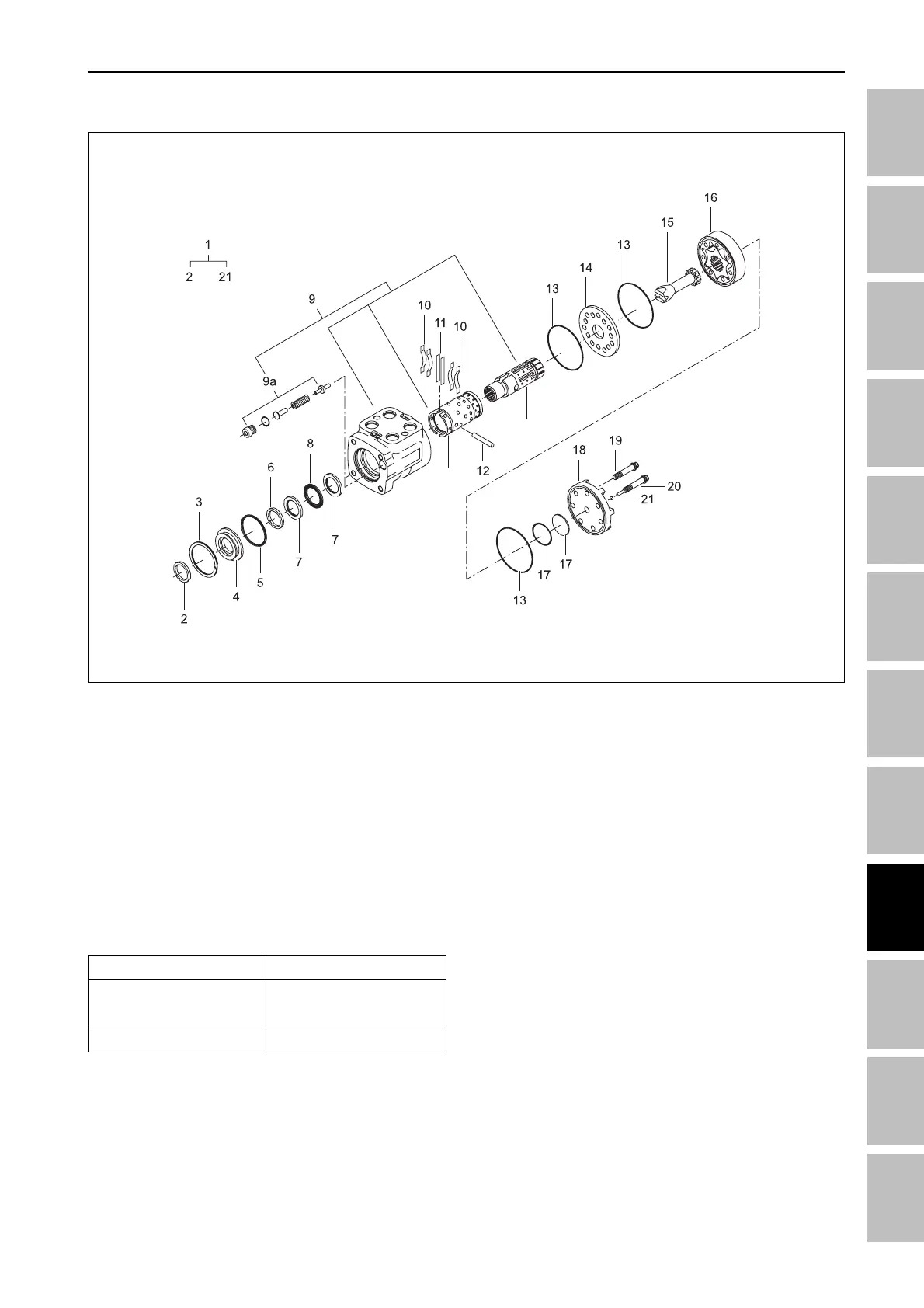

2.4 OPERATING OF STEERING UNIT
(1) Steering case assembly
(2) Dust seal
(3) Retainer ring
(4) Seal gland bushing
(5) O-ring
(6) Oil seal
(7) Lace bearing
(8) Thrust needle bearing
T46W912A
23
22
(9) Control valve assembly
(9a) Relief valve
(10) Centering spring
(11) Plain spring
(12) Pin
(13) O-ring
(14) Spacer
(15) Drive (shaft)
(16) Gerotor
(17) Star seal assembly
(18) Endcap
(19) Bolt
(20) Retainer bolt assembly
(21) Ball
(22) Spool
(23) Sleeve
Item
Power steering unit
volume
Relief pressure
Factory spec.
40 cc/rev
110 kgf/cm
2
ff
ff
f POWER STEERING UNIT SPECIFICATION
STEERING SYSTEM - OPERATING PRINCIPLE
