CK22/CK22H

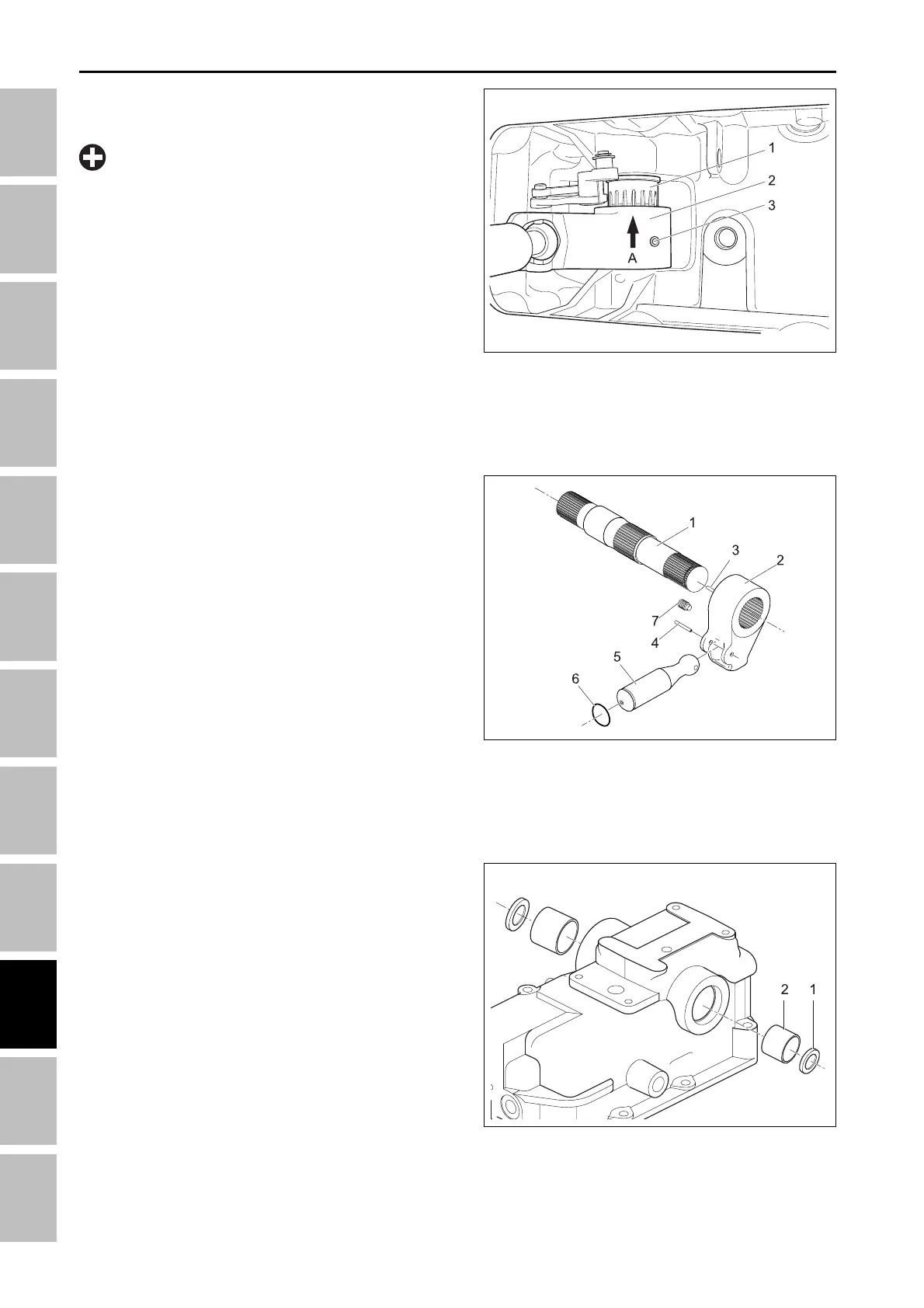

4.5.3 ROCKSHAFT REMOVAL
1. Remove set screw securing arm to shaft.
196W977A
(1) Shallow tapered splines
(2) Arm
(3) Set screw
(A) Direction of shaft movement
• Rockshaft can only be removed from one side of
housing due to stepped bearing surfaces. Be sure
to determine correct orientation of rockshaft be-
fore attempting to remove rockshaft from housing.
IMPORTANT
2. Determine what direction the rockshaft should be
guided to for removal. It can be removed only to one
direction.
3. Using a press remove rockshaft from housing.
6. Using a screwdriver remove shaft seals from
housing.
7. Measure bushings.
Replace if not within specifications.
196W979B
4. Measure shaft bearing surfaces. Replace shaft if
not within specifications.
5. Inspect component for wear or damage. Replace
as required.
196W978A
(1) Hydraulic arm shaft (5) Hydraulic rod
(2) Hydraulic arm (6) O-ring
(3) Pin (7) Stopper screw
(4) Spring pin
(1) Shaft seal (2) Bushings
HYDRAULIC SYSTME - SERVICING
