CK22/CK22H

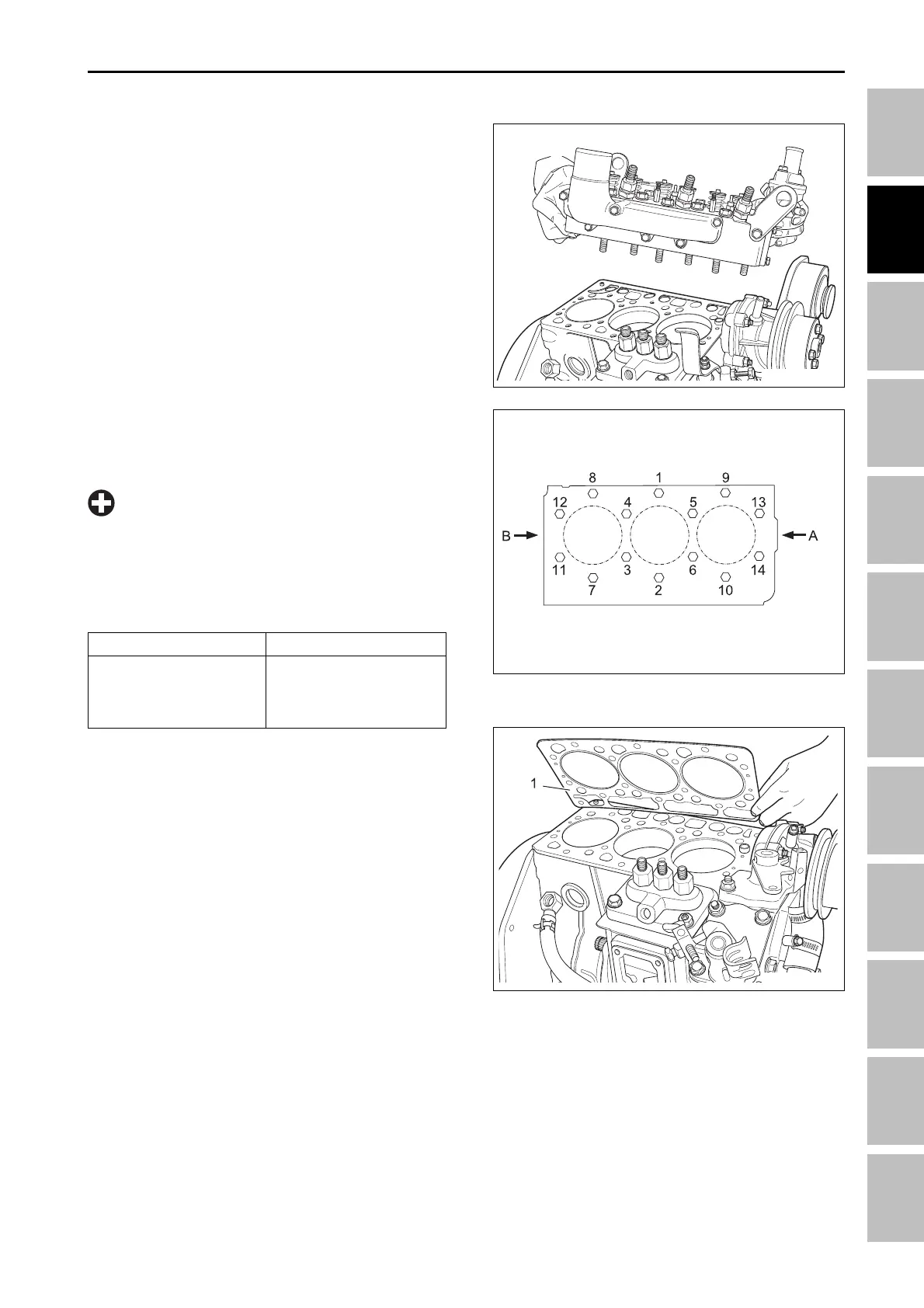

A. REMOVING CYLINDER HEADS AND
GASKET.
1. Remove the fourteen cylinder head set bolts and
two nuts.
• To loosen (14) to (1)
• To tighten (1) to (14)
2. Lift up the cylinder head to detach.
3. Remove the cylinder head gasket.
(Note for reassembling)
• Tighten the bolts and nuts after applying sufficient
oil.
• Tighten the bolts and nuts in diagonal sequence
starting from the center. Tighten them uniformly, or
the head may deform in the long run.
• Before installing the gasket, check to see there is
no foreign matter on the cylinder head and the
cylinder.
(A) Gear case side (B) Flywheel side
(1) Cylinder head gasket
196W263B
196W264A
Item
Cylinder head bolts
Tightening torque
58.8 ~ 63.7 Nm
6.0 ~ 6.5 kgf-m
43.4 ~ 47.0 lb-ft
• When overhauling the engine, replace the gasket
with a new one without confusing its front and
back. Retighten the cylinder head after running
the engine for 30 minutes.
• Tighten the cylinder head bolts and nuts to:
IMPORTANT
7.1.6 CYLINDER HEADS AND VALVES
ENGINE - SERVICING
196W265B
