CK22/CK22H

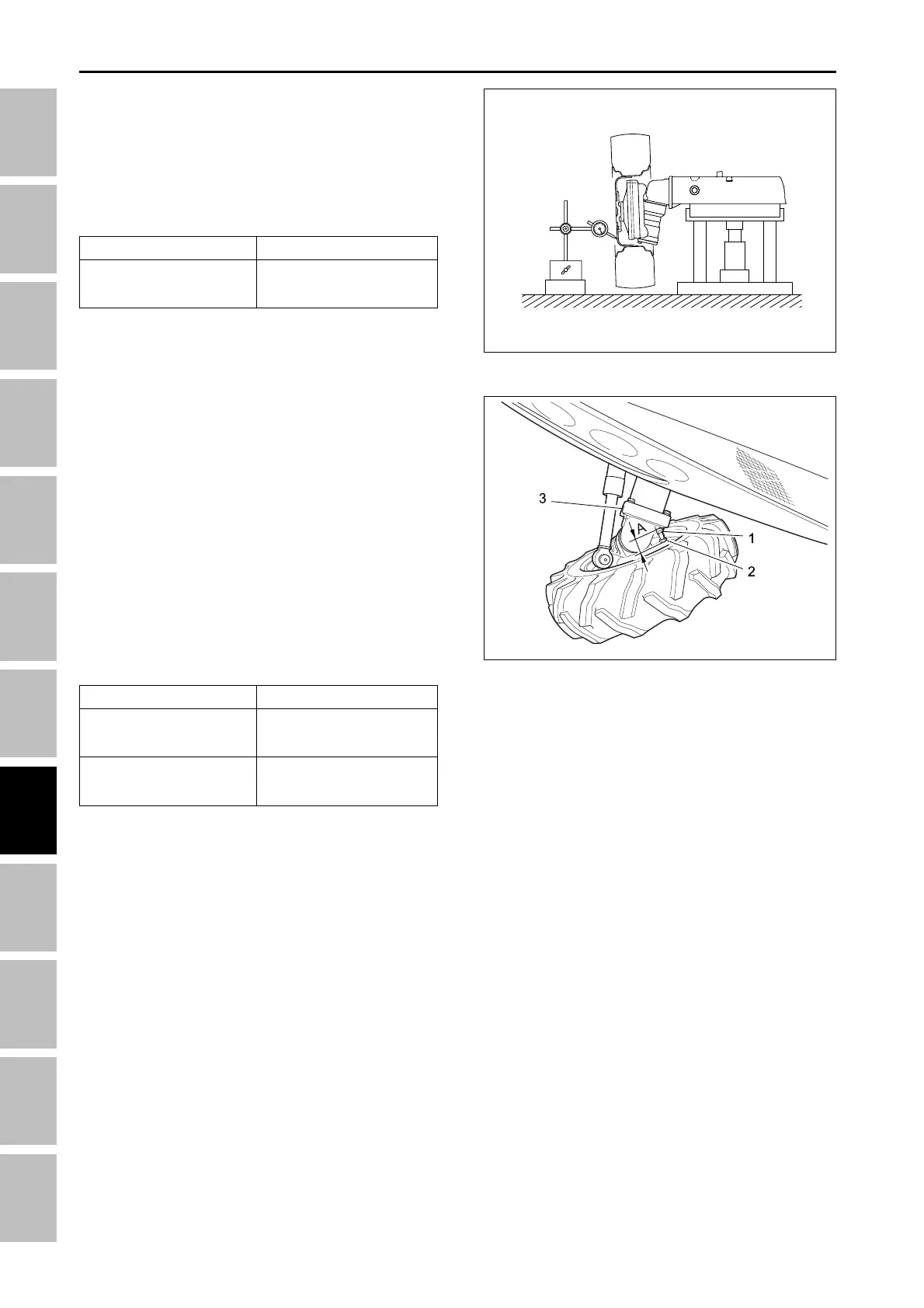

4.3 AXIAL SWAY OF FRONT WHEEL
1. Jack up the front side of tractor.
2. Set a dial gauge on the outside of rim.
3. Turn the wheel slowly and read the runout of rim.
4. If the runout exceeds the factory specifications,
check the bearing, rim, and front wheel hub.
196W709A
196W710A
4.4 FRONT WHEEL STEERING ANGLE
1. Inflate the tires to the specified pressure.
2. Loosen the lock nut and shorten the length of stop-
per bolt LH (1).
3. Steer the wheels to the extreme left.
4. Lengthen the length of stopper bolt (1) until the stop-
per bolt contacts with the bevel gear case (3).
5. Return the steering wheel to straight ahead and
lengthen the stopper bolt half turn from above posi-
tion further.
6. Lock the stopper bolt by lock nut (2).
7. For adjusting the right steering angle, perform the
same procedure as mentioned in left steering angle.
(1) Stopper bolt (3) Bevel gear case
(2) Lock nut
Item
Axial sway of front
wheel
Factory spec.
Less than 5.0 mm
0.20 in.
Item
Length of adjusting bolt
(A)
Steering angle
Factory spec.
32 mm
1.259 in.
51 ~ 53°
0.89 ~ 0.92 rad
FRONT AXLE - MEASURMENT AND ADJUSTING
