CK22/CK22H
(1) Split pin
(2) Cir-clip
(3) Plain washer
(4) Damper cylinder
(5) Spacer
(6) Spacer
4.17 FRAME
1. Remove the bonnet wire harness 2 (1).
2. Disconnect the acceleration wiring (2).
3. Remove the brake rods (LH/RH) (3).
4. Remove the clutch rod (4).
5. Remove the HST control rod (5).
6. Remove the wire harness of the fender (6).
7. Remove mounting bolts & nuts from the frame and
then remove the frame (7) carefully.
196W438A
196W437A
(7) Damper
(8) Split pin
(9) Plain washer
(10) HST pedal
(11) Spacer
(12) Connector plate
(1) Bonnet wire harness 2
(2) Acceleration wiring
(3) Brake rod
(4) Clutch rod
(5) HST control rod
(6) Fender
(7) Frame

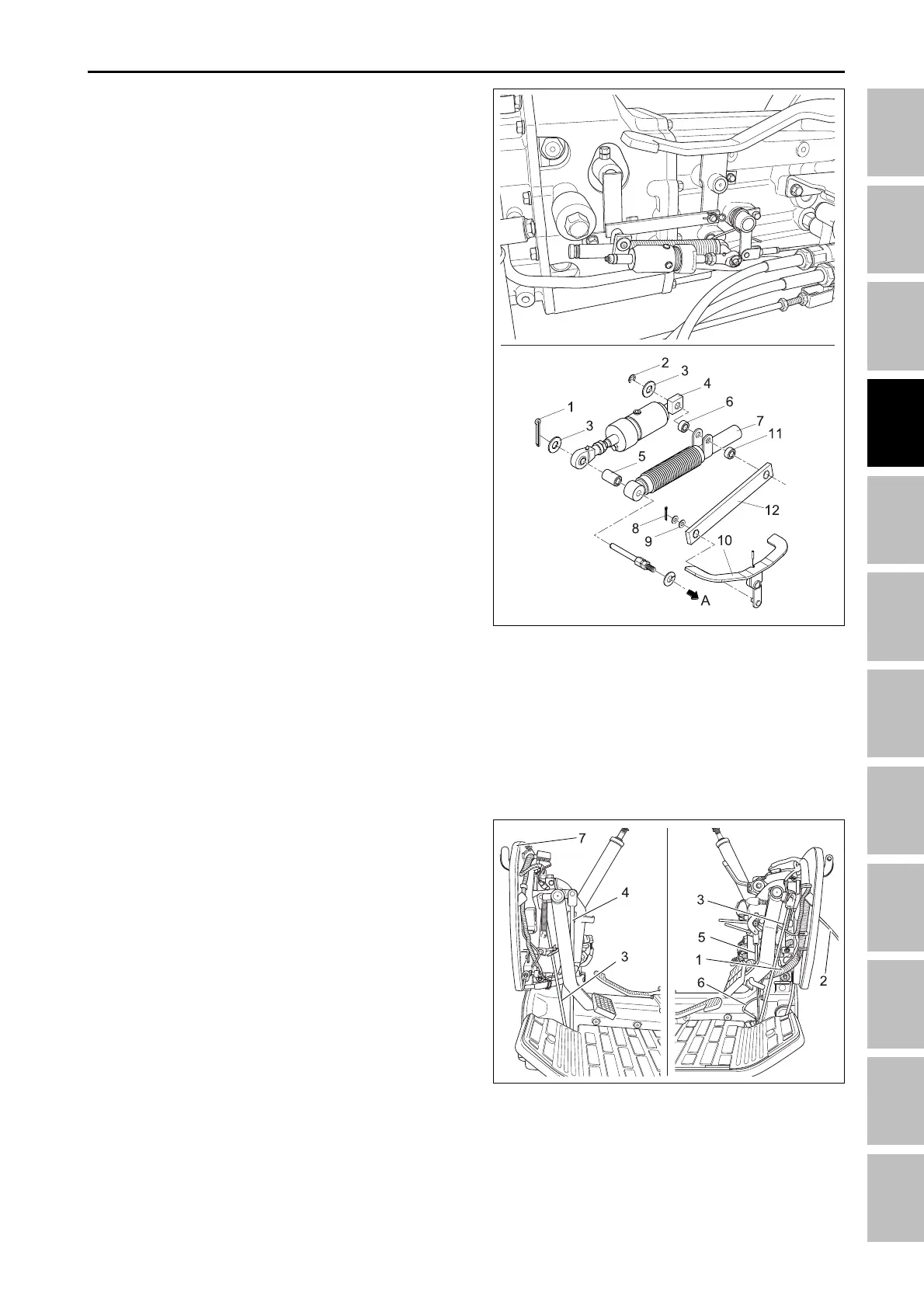

4.16 HST DAMPER ASSEMBLY
(CK22H)
1. Remove the split pin (1), cir-clip (2), plain washer
(3), damper cylinder (4), spacers (5)(6), damper (7),
spacer (11), split pin (8), plain washer (9) and con-
nector plate (12).
