CK22/CK22H

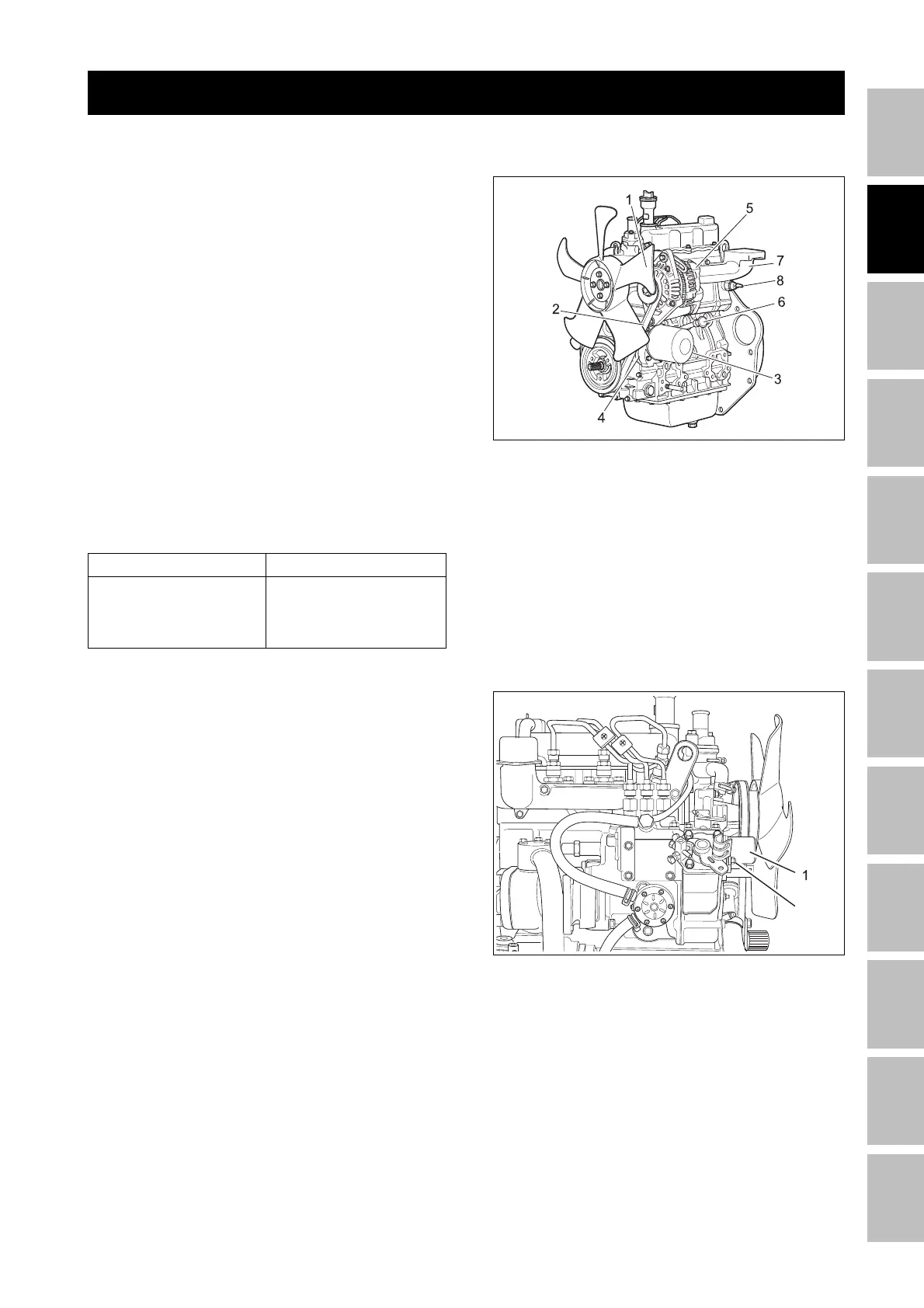

(1) Cooling fan (5) Alternator
(2) Fan belt (6) Dipstick
(3) Oil filter cartridge (7) Exhaust manifold
(4) Filter flange (8) Oil pressure switch
196W249B
Item
Oil pressure switch
Tightening torque
14.7 ~ 19.6 Nm
1.5 ~ 2.0 kgf-m
10.8 ~ 14.4 lb-ft
7. SERVICING
7.1 REMOVAL AND REASSEMBLE
7.1.1 ENGINE ASSEMBLY
Drain the oil and the water, if disassemble the engine
body.
1. Remove the muffler and exhaust manifold (7).
2. Remove the oil pressure switch (8).
3. Pull out the dipstick (6).
4. Remove the alternator (5) and the belt (2).
5. Loosen the oil filter cartridge (3) with the filter wrench
and remove it and the flange (4).
(When reassembling)
• Apply liquid gasket (Three bond 1215 or equivalent)
on the thread of the oil pressure switch.
• Apply liquid gasket to the both sides of the hour
meter gasket.
• Apply oil to the O-ring and tighten the oil filter car-
tridge not with wrench but by hands
• Adjust the fan belt tension. (See Fan Belt)
2
7.1.2 ENGINE STOP SOLENOID
1. Disconnect the wire connector of solenoid (1).
2. Remove the nut (2).
3. Remove the stop solenoid (1).
(1) Engine stop solenoid
(2) Nut
196W250B
