CK22/CK22H

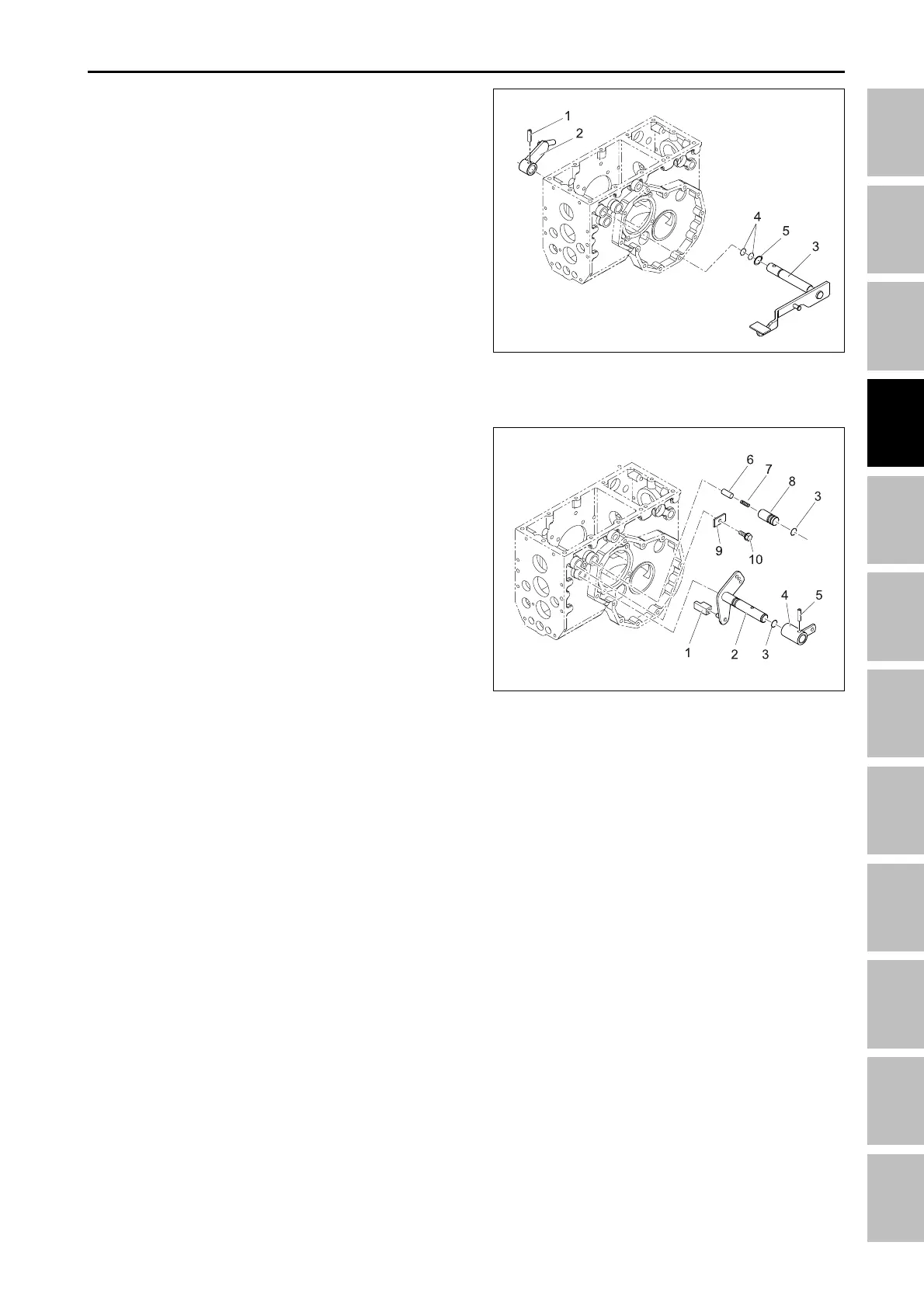

4.23 DISASSEMBLING SPIRAL BEVEL
GEAR
1. Tap out the spring pin (1), and remove the differen-
tial lock arm.
2. Remove the differential lock pedal assembly (3, 4,
5) from the transmission case.
(1) Spring pin (3) Differential lock pedal
(2) Differential lock arm (4) O-ring
196W472A
3. Tap out the spring pin (5), and the bolt (10), stopper
(9) and range shift boss assembly (3, 6, 7, 8).
4. Remove the shifter (1).
(1) Shifter
(2) Range shift arm
(3) O-ring
(4) Range shift connecting arm
(5) Spring pin
(6) Pin
(7) Spring
(8) Range shift boss
(9) Stopper
(10) Bolt
196W473A
TRANSMISSION - SERVICING
