CK22/CK22H
196WA44B

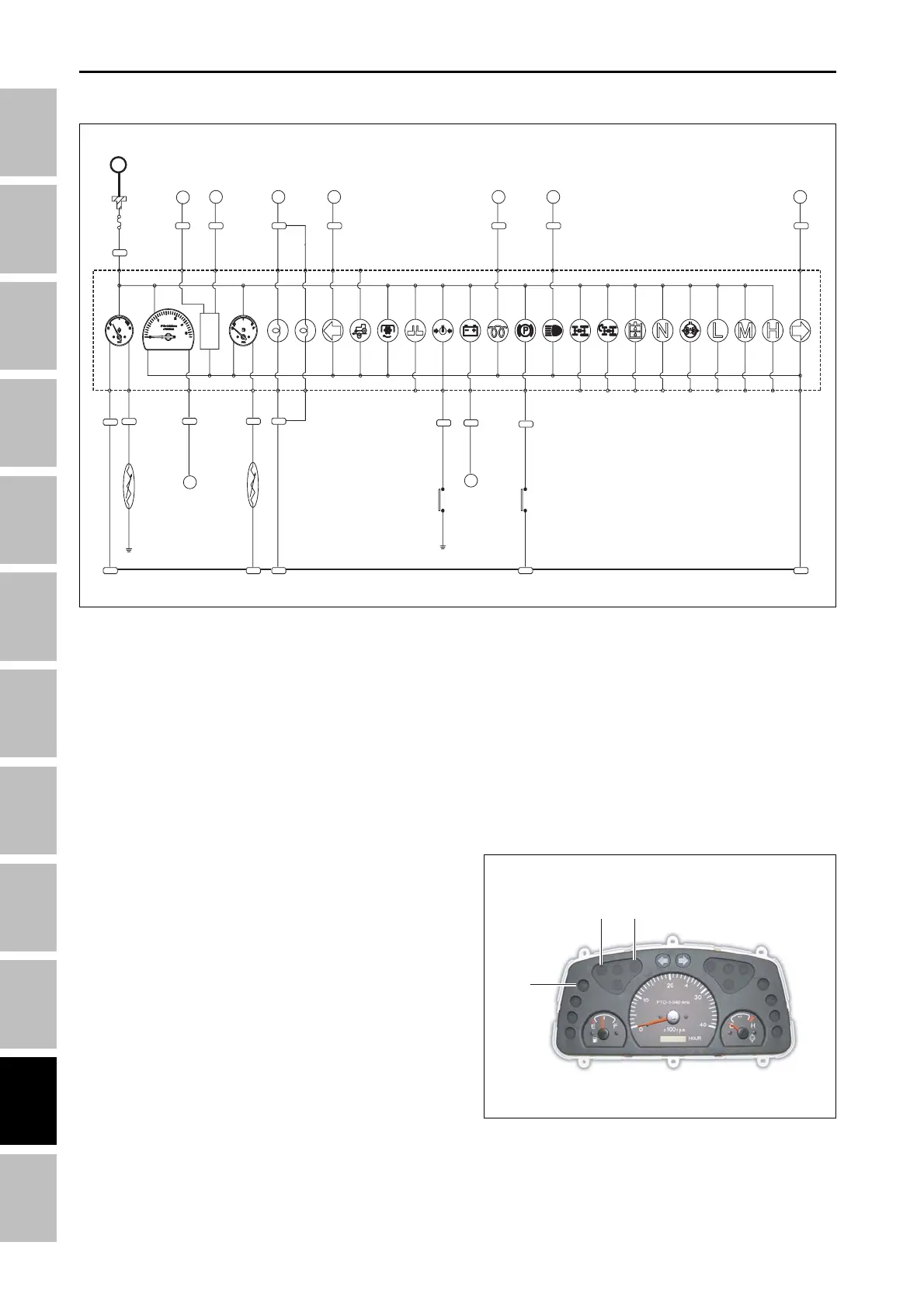

4.4 COMBINATION METER
A: From key ON
3: From main SW “AM”
11: From comtroller 1Hz terminal
8: From combination switch for tail light
7: From combination switch for left turn
P2: From preheat controller lamp terminal
10: From combination switch for high beem
6: From combination switch for right turn
12: From alternator yellow code
P1: From diode of alternator
COMBIMETER
HOUR/M
ASS'Y COMBI-METER
TEMP. SENSOR
FUEL GAUGE SENSOR
ENGINE OIL SWITCH
PARKING BRAKE SWITCH
5A
3
A
11 8 7 P2 10 6
P1
12
0.85 GW0.5 B
0.5 R0.5 R0.5 B
0.5 PB
0.5 Gr
0.85 B
0.85 B
0.85 B
0.85 Y
0.5 WB 0.5 WB
0.85 B
0.85 W
0.85 R
0.5 YL
0.85 BrW
0.85 BrW
0.5 RW
0.5 GY
0.5 GB
0.5 YBr 0.5 YBr
28 27 33 2 19 12 24 14 37 36 4 3 25 2615 30 31 32
2993938401118234
SIG2
20
5
16
003 073 50 47 068 52 48
38
5756
1
001 001 001001001
100
53
105 60
A. BATTERY DISCHARGE WARNING LAMP
Illuminates when the key switch is in the “ON” position
and goes out when the engine is started. If this bulb
becomes lit during operation, it indicates that the charg-
ing system is not operating normally. As the battery can
be fully discharged under this condition, the charging
circuit should be checked.
B. PRE-HEAT OPERATION INDICATOR
At cold start, wait for the light to go out before starting
the engine. While the light is ON, the glow plugs are
energized to aide with starting.
C. HIGH BEAM OPERATION INDICATOR
When turning the headlamp switch to the high beam
position the high beam illuminates.
BA
C
196WA69A
ELECTRIC SYSTEM - SERVICING
