CK22/CK22H

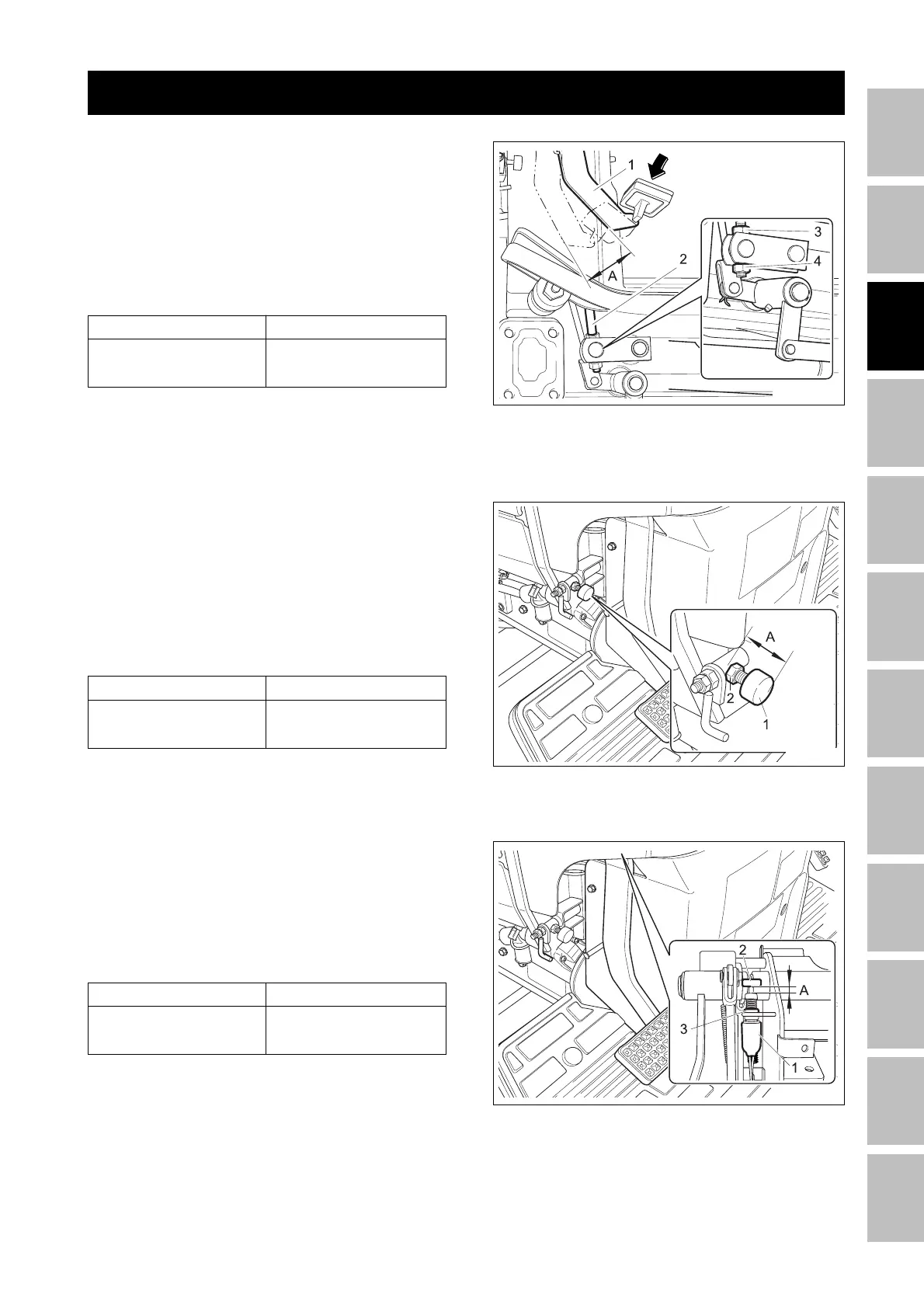

4.1 CLUTCH PEDAL PLAY ADJUST-
MENT
1. Press clutch pedal (1) by hand and measure (A) at
the end of pedal.
2. If the measurement is not within the factory
specifications, loosen lock nut (3), (4) of clutch rod
(2), adjust the clutch rod (2) length.
3. Retighten the lock nut (3), (4).
(1) Clutch pedal (2) Clutch rod
(3) Lock nut (4) Lock nut
4.2 ADJUSTMENT OF CLUTCH PEDAL
STOPPER BOLT
1. When working clutch pedal and clutch disconnected,
adjust bolt setting to prevent excessive force to
clutch.
2. If setting (A) of stopper bolt exceeds the specified,
loosen lock nut (2), readjust the length, and then
set with lock nut.
Item
Clutch pedal play (A)
Specified
20 ~ 30 mm
0.79 ~ 1.18 in.
(1) Stopper bolt (2) Lock nut
4.3 ADJUSTMENT OF SAFETY SWITCH
1. Measure clearance (A) of safety switch (1) and clutch
pedal (2).
2. If the measured value exceeds the specified, loosen
safety switch lock nut (3).
Readjust and then lock the nut.
(1) Safety switch (3) Safety switch lock nut
(2) Clutch pedal
196W303A
196W304A
196W305A
Item
Height (A) of clutch
pedal stopper bolt
Specified
18 ~ 22 mm
0.70 ~ 0.87 in.
Item
Clearance (A) of safety
switch and clutch pedal
Specified
0.5 ~ 1.0 mm
0.0197 ~ 0.039 in.
4. CHECKING AND ADJUSTMENT
CLUTCH - CHECKING AND ADJUSTMENT
