CK22/CK22H

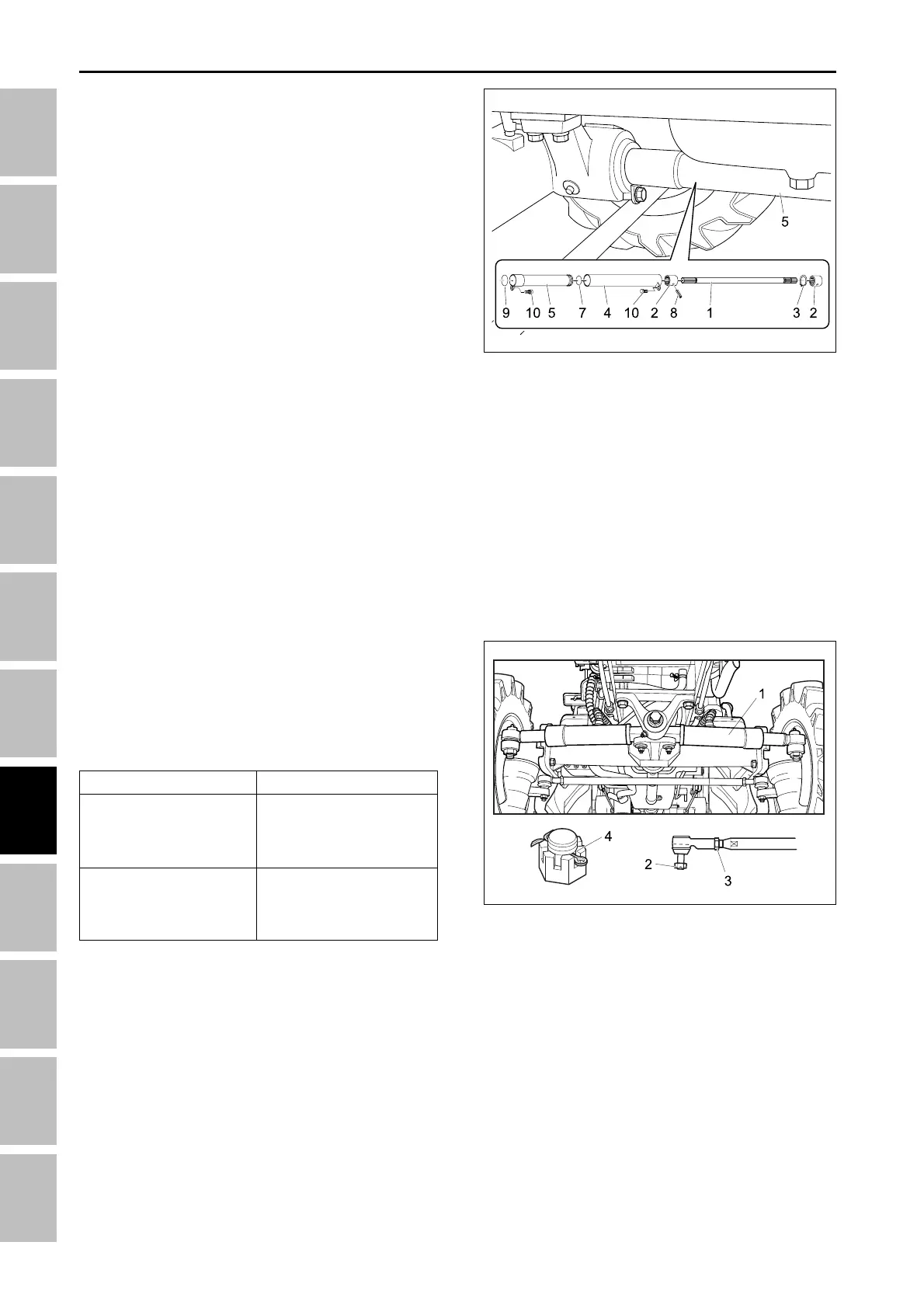

5.1.3 DISCONNECTING PROPELLER
SHAFT
1. Slide the propeller shaft cover (5), (4) after remov-
ing the bolts (10).
2. Tap out the spring pin (8), and then slide the cou-
pling (2) to the rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft.
(1) Propeller shaft
(2) Coupling
(3) Cir-clip
(4) Propeller shaft cover 1
(5) Propeller shaft cover 2
(6) O-ring
(7) O-ring
(8) Spring pin
(9) O-ring
(10) Bolt
5.1.4 DISCONNECTING TIRE-ROD
1. Remove the tie-rod.
In this case, take special care not to damage the
tie-rod (1) and slotted nuts (2).
(When reassembling)
(1) Tie-rod (3) Tie-rod lock nut
(2) Slotted nut (4) Slotted nut
196W716A
196W718A
Item
Slotted nut
Tie-rod lock nut
Tightening torque
39.3 ~ 49.1 Nm
4.0 ~ 5.0 kgf-m
29.0 ~ 36.1 lbs-ft
166.8 ~ 191.3 Nm
17.0 ~ 19.5 kgf-m
122.9 ~ 141.0 lbs-ft
FRONT AXLE - SERVICING
