CK22/CK22H
4.3.2 SERVICING

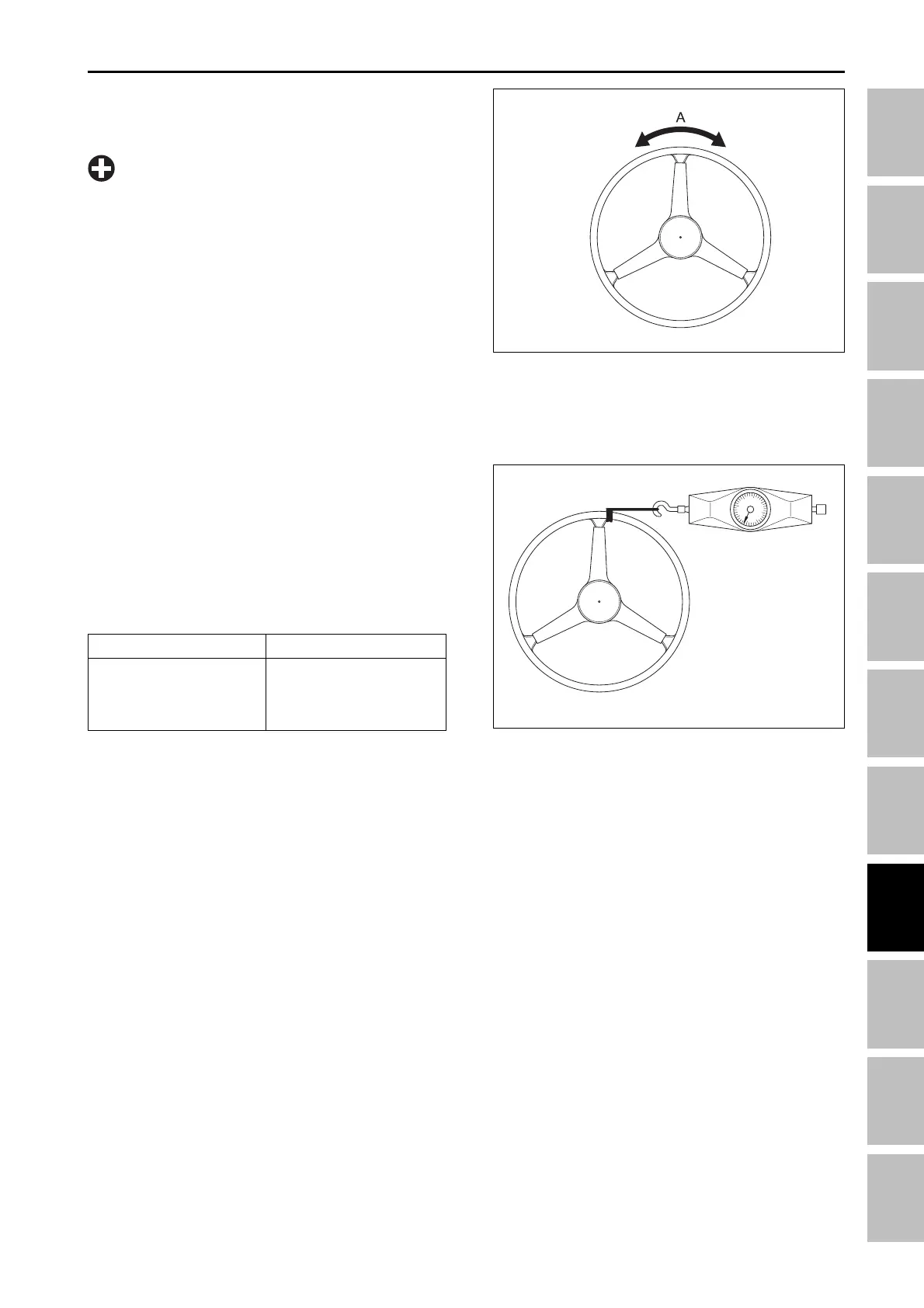

A. STEERING WHEEL CLEARANCE
B. STEERING WHEEL OPERATING FORCE
1. Start the engine. After warming up, set the engine
speed at approx. 2,800 rpm
2. Set a spring balance to the steering wheel to mea-
sure the operating force.
3. If the measurement exceeds the factory specification,
check the performance of hydraulic relief assembly
and power steering motor using a tester.
196W851A
196W852A
Item
Steering wheel operat-
ing force
Factory spec.
Less than 5.9 N
0.6 kgf
1.31 lbs.
(A) Clearance
• Before disassembling the power steering system,
check the performance of hydraulic relief assem-
bly and power steering motor using a hydraulic
tester.
• Do not disassemble the power steering motor
needlessly.
• After removing or disassembling the power steer-
ing components, be sure to bleed any air from the
system.
(Bleeding)
• Start the engine. Then turn the steering wheel
slowly in both directions all the way alternately
several times, and stop the engine.
IMPORTANT
STEERING SYSTEM - SERVICING
