CK22/CK22H
2
1
3
196WA23B

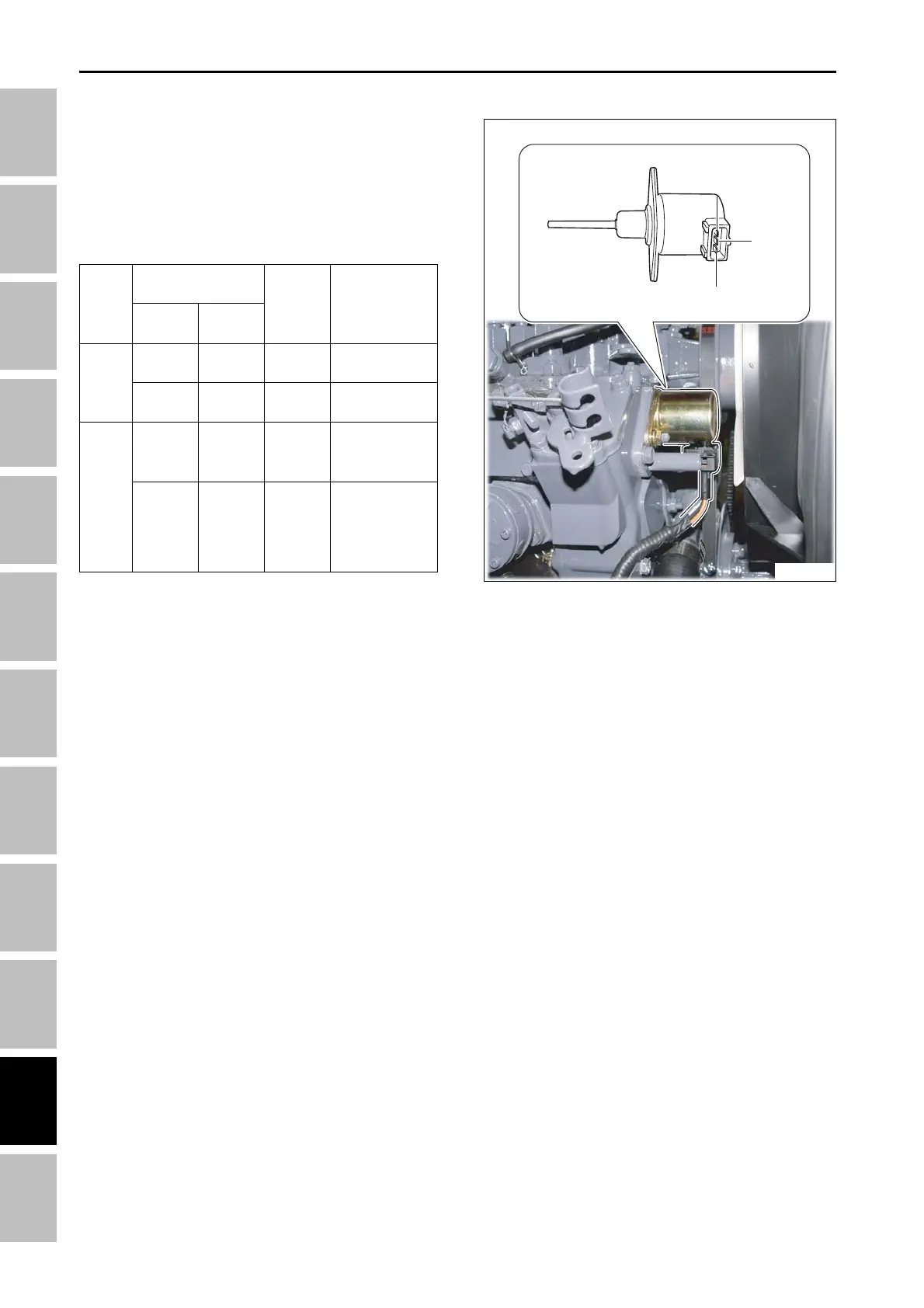

4.2.3 ENGINE STOP SOLENOID
The Engine Stop Solenoid Is Installed On The
Engine Gear Case.
The resistance of the engine stop solenoid should be
measured when the wiring connector is disconnected.
The voltage values should be measured when turning
the key switch to ON position when the wiring connec-
tor is installed.
(1) Hold Coil (3) Pull Coil
(2) Earth
No. 1
connector
No. 3
connector
No. 1
connector
No.3
connector
No. 2
connector
No. 2
connector
No. 2
connector
No. 2
connector
Approx.
28Ω
Approx.
0.3Ω
DC12V
DC12V
Hold coil
Pull coil
When the key
switch is in
“ON” position
Key switch
OFF → ON:
voltage
generated for
1 second
Range RemarksResult
Tester’s
measuring point
Red
lead
Black
lead
Resis-
tance
Voltage
ELECTRIC SYSTEM - SERVICING
