CK22/CK22H
2. Install the load check poppets: with O-rings, springs
and check plugs (17).
Item
Blocking plug
Tightening torque
42 Nm
4.3 kgf-m
31 lb-ft

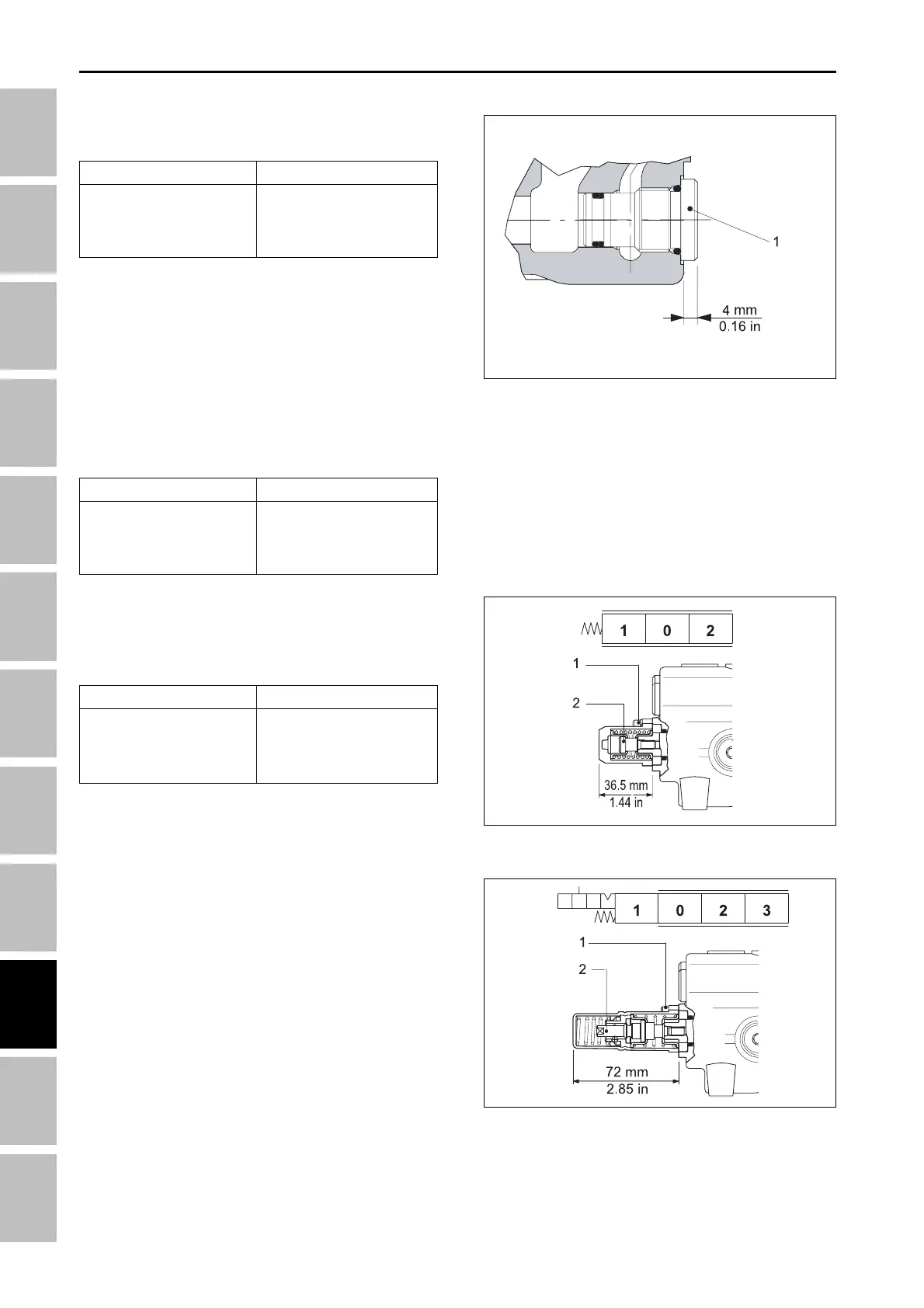

4.2.3 JOY-STICK VALVE ASSEMBLY
1. Install the plug (19).
Item
End cap mounting
screw
Tightening torque
6.6 Nm
0.7 kgf-m
4.9 lb-ft
5. Assemble the float spool in the same manner us-
ing steps 4 through 5.
196W946A
(1) Plug
3. Install O-ring (15) in their grooves in the valve body
and carefully slide the spool (25) into its bore.
4. Install the end cap (20) and secure the assembly
with cap screws.
Item
Check plugs
Tightening torque
24 Nm
1.8 kgf-m
17.7 lb-ft
196W947A
(1) Wrench bolt (2) Spool control kit
196W948A
(1) Wrench bolt (2) Spool control kit
