CK22/CK22H
4.3 HYDRAULIC LIFT CYLINDER
4.3.1 DRAINING THE TRANSMISSION
FLUID
CK22H
CK22

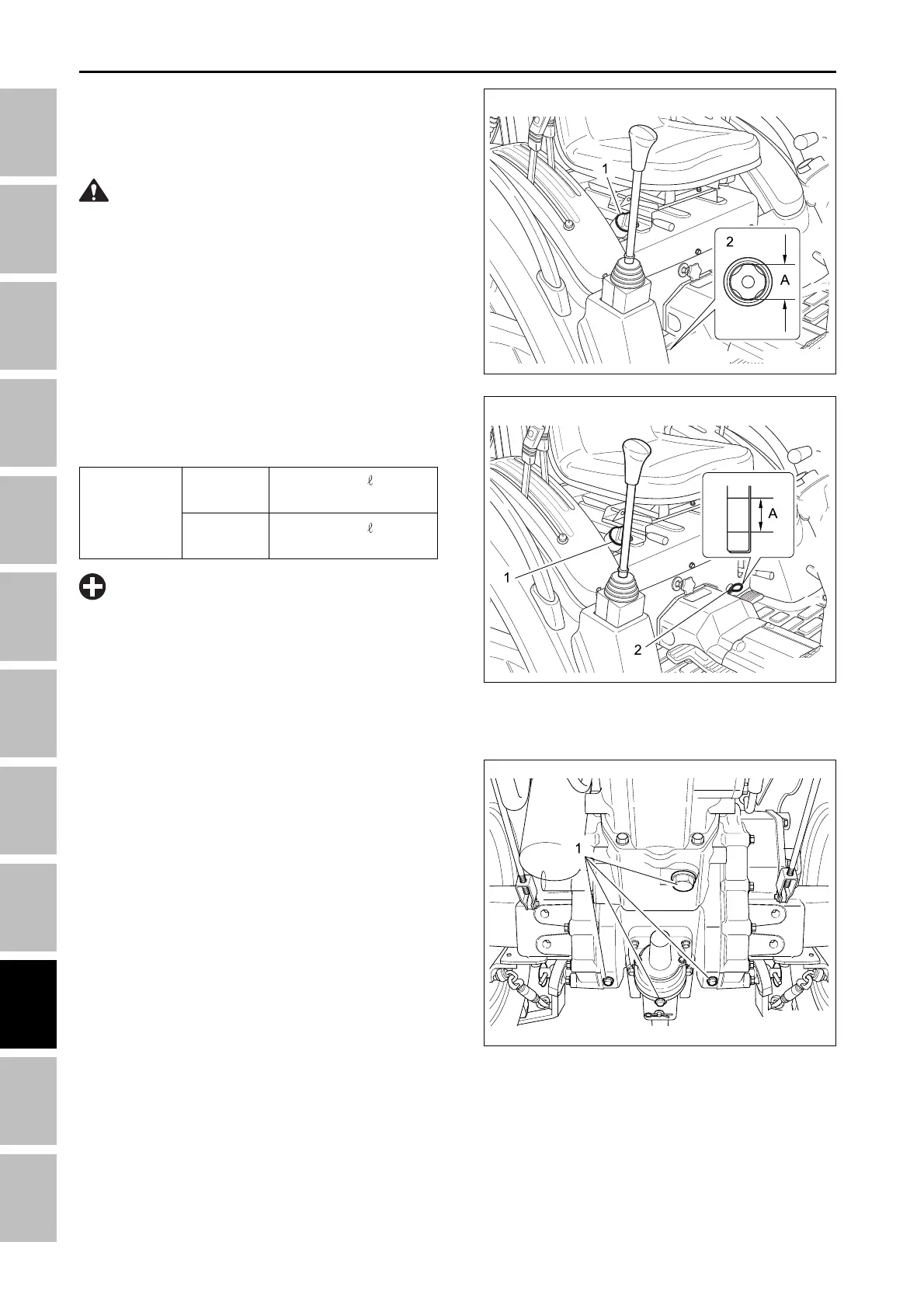

(1) Oil filling plug (2) Gauge
(A) Oil level is acceptable within this range
196W502A
196W511A
1. To drain the used oil, remove the drain plug at the
bottom of the transmission case and drain the oil
completely into the oil pan.
2. After draining reinstall the drain plug.
3. Fill with new fluid up to the upper line of the gauge.
(See “LUBRICANTS” in Maintenance Section)
4. After running the engine for a few minutes, stop it
and check the oil level again; add oil to prescribed
level.
• Do not operate the tractor immediately after
changing the transmission fluid.
Run the engine at medium speed for a few min-
utes to prevent damage to the transmission.
IMPORTANT
To avoid personal injury:
• Allow engine to cool down sufficiently, oil can be
hot and can burn.
CAUTION
Oil capacity
18.5
(4.89 U.S.gal.)
CK22H
21.6
(5.71 U.S.gal.)
CK22
(1) Drain plugs
196W512A
HYDRAULIC SYSTME - SERVICING
